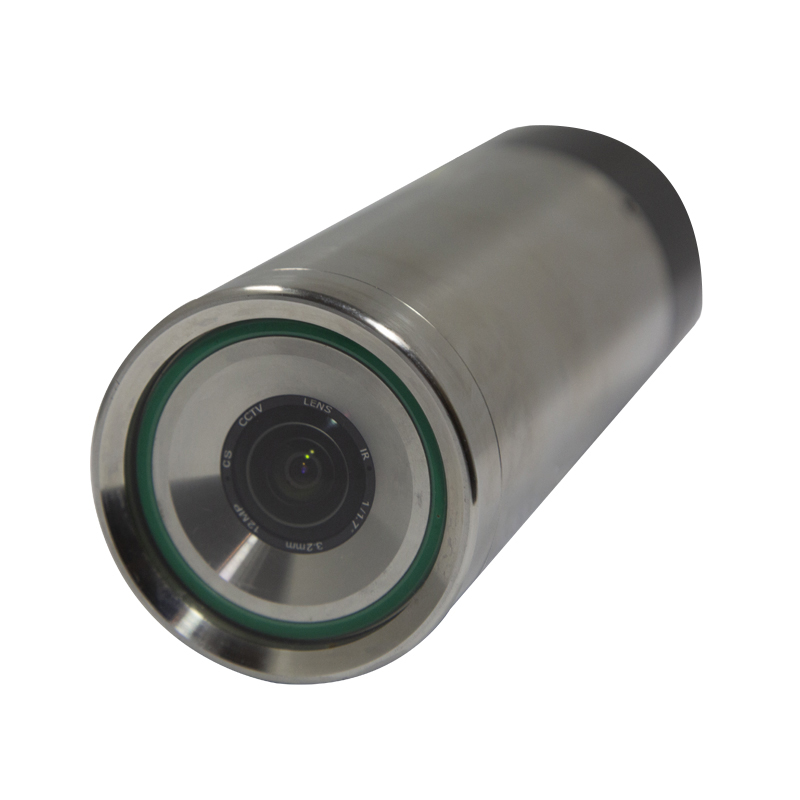

Surveillance Camera, Underwater Camera with Ultra HD 145-degree Angle 4K DPI And Depth&Temp Sensor

Image Sensor

1/1.7" Progressive Scan CMOS

Chip

Hass Chip Hi3519V101

Maximum image size

4000×3000

Electronic shutter

1/25s~1/10000

Minimum illumination

0.0001Lux@F1.2

Video compression standard

H.265+/H.265/H.264/MJPEG

Video resolution

Main Stream: 4000×3000/4096×2160 4K/3840×2160 4K/2592×1944

Second Stream: 720P(1280×720)/D1(704×576)/VGA(640×480)

Video frame rate

50Hz: 15fps (4000×3000, 4096×2160), 25fps (3840×2160, 1920×1080, 1280×720)

60Hz: 15fps (4000×3000, 4096×2160), 30fps (3840×2160, 1920×1080, 1280×720)

View angel

145 degree

SIGNAL-NOISE RATIO

≥50dB (AGC OFF

Wide dynamic rang

≥80dB

Lens

3.6mm(Optional 3.2mm/6mm/8mm)

Focus

Fixed

Housing material

POM/Stainless Steel/Titanium Alloy

Waterproof

0-300m

Working temperature

-30℃～+60℃

Power supply

48VDC (Voltage Optional)

Noise reductio

3D Digital Noise Reduction

Video bit rat

32 Kbps~16Mbps

Audio compression format

G.711a/ G.711u/G.72

Image settings

Adjustable brightness, contrast, saturation, sharpness, white balance;

AWB(auto white balance), AGC(automatic gain)

AE(automatic exposure control), AIC (auto iris correction);

Support for privacy zone occlusion;

OSD Stacked Plus;

Image Rotation: normal 90°/270° automatic,

manual or automatic color to black and other switching methods

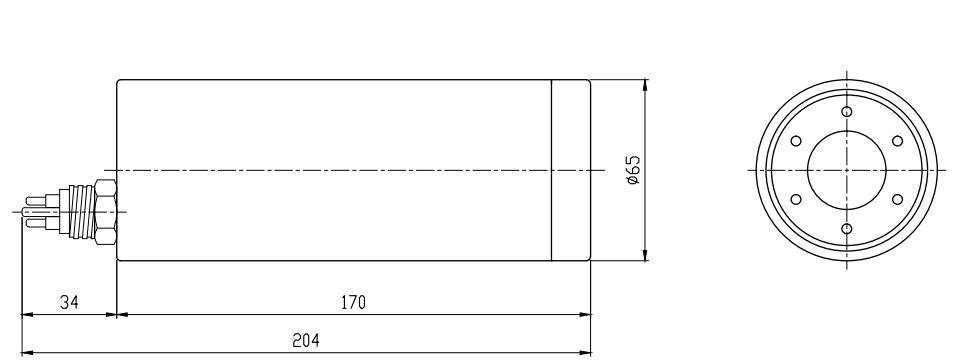

Size

Φ65*170mm (170+37mm Connector)

Character overlay

Support
