A 90-degree Angle Low-illuminance Underwater Camera Surveillance with 5x Zoom

Image sensor

1/2.9" CMOS sensor

Resolution

2 Megapixel

Signal type

Network

Sensitivity

0.1Lux@F1.2 (Color mode); <a href="mailto:0.01Lux@F1.2" \h"="">0.01Lux@F1.2 (Monochrome）

Video processing

H.265+/H.265X video coding, support dual stream, AVI format; support stream 0.1M~8Mpbs adjustable; support frame rate 1~30 frames/sec adjustable

Image output

Main stream: 1920*1080@20fps, 1280*720@25fps; substream: 704*576@25fps

Network Interface

1* RJ45 Ethernet interface, 10/100M adaptive; supports network protocols such as RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

Day and night mode

Support IR-CUT

Compatibility

Supports ONVIF platform access such as Haikang, Xiongmai CMS, and Tianshitong UC2, and supports mainstream NVR ONVIF protocol access.

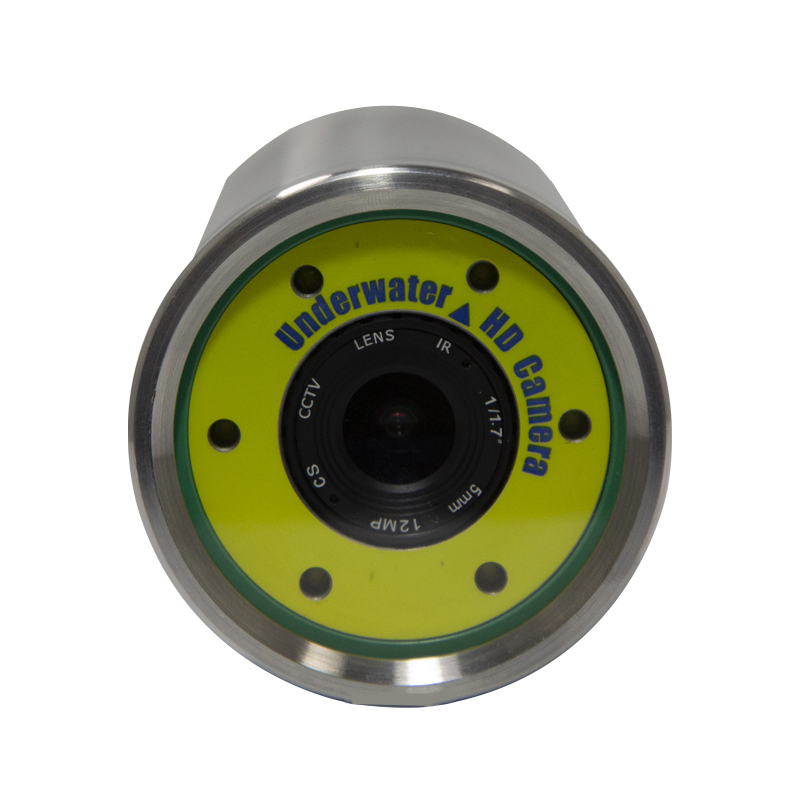

Lens

Standard 2.8mm-12mm automatic zoom lens

Zoom

Optical zoom 5x

Function

Support front-end storage playback/download;

Support unified system remote monitoring software, platform and other system applications;

Provide a complete SDK development kit

Housing material

Stainless steel 304 ( aluminum alloy / titanium alloy / industrial plastic optional)

Waterproof level

0-300 meters (max depth can be customized to 6000m)

Power supply

48VDC (customized can be 24V)

Working temperature

-20℃～+40℃

Storage temperature

-30℃ ~ +60℃

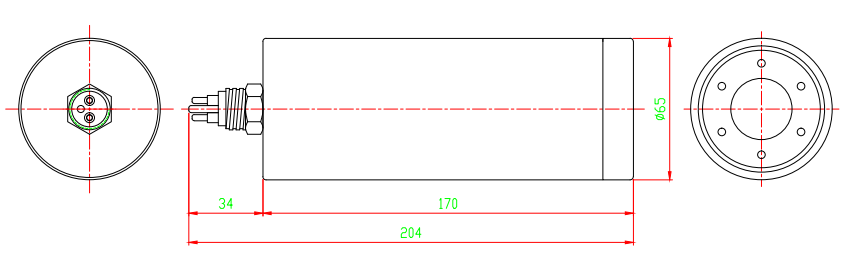

Dimension

Φ65*170mm (excluding 34mm connector)

Weight in the air

1.5 kg

View angel

90 degree

Connector

MCBH2MSS
