1. Always apply grease before mating
2. Pull out, pull straight out, do not twist around
3. Do not pull on the cable and avoid sharp bends at cable entry
4. When using a bulkhead connector, ensure that there are no angular loads
5. All kinds of connectors should not be exposed to extended periods of heat or direct sunlight
GLF-JCJ-3
Granfoo
GLF-JCJ-3
| Quantity: | |
|---|---|
Underwater Connector
3-pin Female And Male Inline Cable Connector
1. Small volume and lightweight, small footprint, professional wet plug.
2. High seawater corrosion-resistant stainless steel shell material.
3. Standard pin and hole position distribution, 7/16″-20 UNF tail thread, can be exchanged with different brands of the same model.
Dimensions Detail：
Specification | |
Structure | Materials and specifications |
Main | The seawater corrodes stainless steel |
Install screw | 7/16-20 UNF thread length is 15/19mm |
Socket head | Neoprene (special mixing rubber for underwater connector) |
Contact Pin | Gold-plated copper alloy, American standard pin |
Texture of material | 303 stainless steel (2 needle Ø 3.2, 3/4 needle Ø 2, 5/6/8 needle don’t need) |
O-rings | Nitrile rubber, the imported o-rings, parker 2-014, Ø 12.42 x 1.78 |
Locking lid | Polyformaldehyde resin (POM) |
Cable plug body | Special polyether |
Install line | Teflon, silver-plated pure copper. |
End cap | Neoprene (special mixing rubber for underwater connector) |
Cable plug | Pressure-resistant seawater special cable. |
Technical Performance | |
Item | Rating Value |
Depth | 0~1000 meters |
Voltage | 300V (resistance to voltage is greater than 1500V 60s) |
Working current | 2A~16A |
Insulation resistance | > 1000 m Ω (room temperature) |
Wet insertion frequency | > 500 times |
Working temperature | (-4~60)°C |

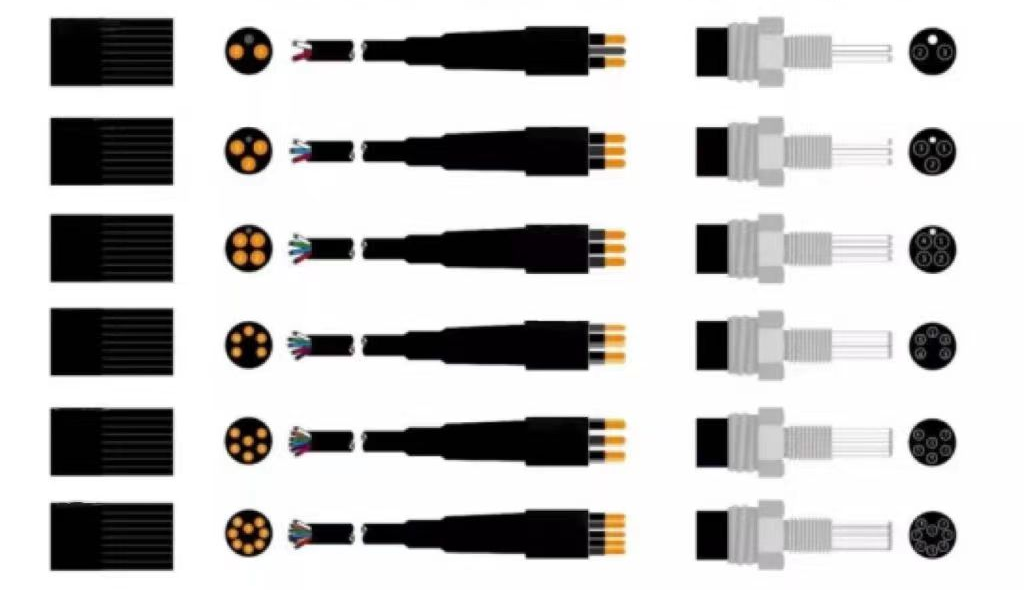

More Pins:
Bulkhead Connector Male Plug and In-Line Connector Female Socket (Dummy Locking include)
Bulkhead Connector Female Plug and In-Line Connector Male Socket (Dummy Locking include)
Product show
