Underwater Camera, Hand-held Underwater Surveillance Camera with Wiper

* 1/2.8’’ FOUR IN ONE  1080P

* IMX291+NVP2441H

* Support coaxial high-definition transmission, image clear, delicate

* Support OSD menu

* Support UTC function

* Adaptive digital noise reduction 2D-DNR + 3D-DNR

* 6KV lightning protection

* Dimension Dia 108*210mm

  • GLF-UDC-S200-W

  • Granfoo

  • GLF-UDC-S200-W

Availability:
Quantity:

This is a Underwater Analog Wiper Camera, the camera is cylindrical with a diameter of 108mm, with automatic cleaning function in front of the lens.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.


3


• 1/2.8’’ FOUR IN ONE 1080P

• IMX291+NVP2441H

• Support coaxial high-definition transmission, image clear, delicate

• Support OSD menu

• Support UTC function

• Adaptive digital noise reduction 2D-DNR + 3D-DNR

• 6KV lightning protection

• Dimension Dia 108*210mm


Model No.GLF-UDC-S200-W
Image sensor1/2.8’’ SONY IMX291+NVP2441H
System standardPAL / NTSC
Resolution1920(H)*1080(V)
Sensitivity0.01LUX/F1.2
Horizontal definitionCoaxial HD 200w Pixel 1080p, Analog: 2000TVL
Day-night modeExternal control (default) Auto / color / black and white
Frame rate1080P@25fps / 1080P@30fps
Synchronization modeInternal synchronization
ShutterAUTO /1/50~1/50000s
Signal-Noise Ratio>46dB
Video outputAHD/TVI/CVI/CVBS Can be switched
ConnectorMCBH4M
Working temperature-20°~ 60&deg
Working humidityRelative humidity below 90%
Power supplyDC12V (±10%)
Working depth0-300M (customized)

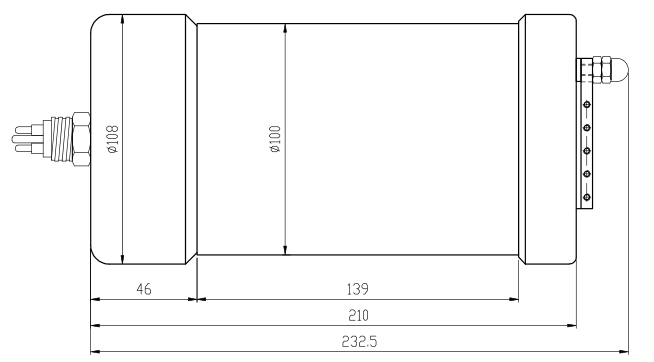

Dimension108mm(D)x210mm(L) Excluding Connector
Housing material304 Stainless steel /Titanium






YS2


Packing

1. 1 pcs camera

2. 10m cable

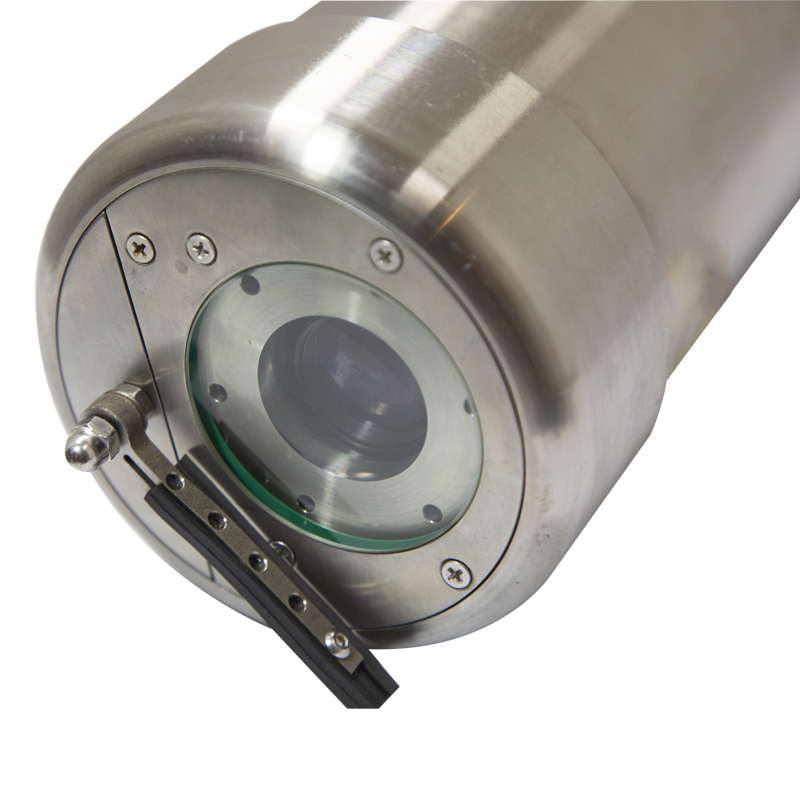

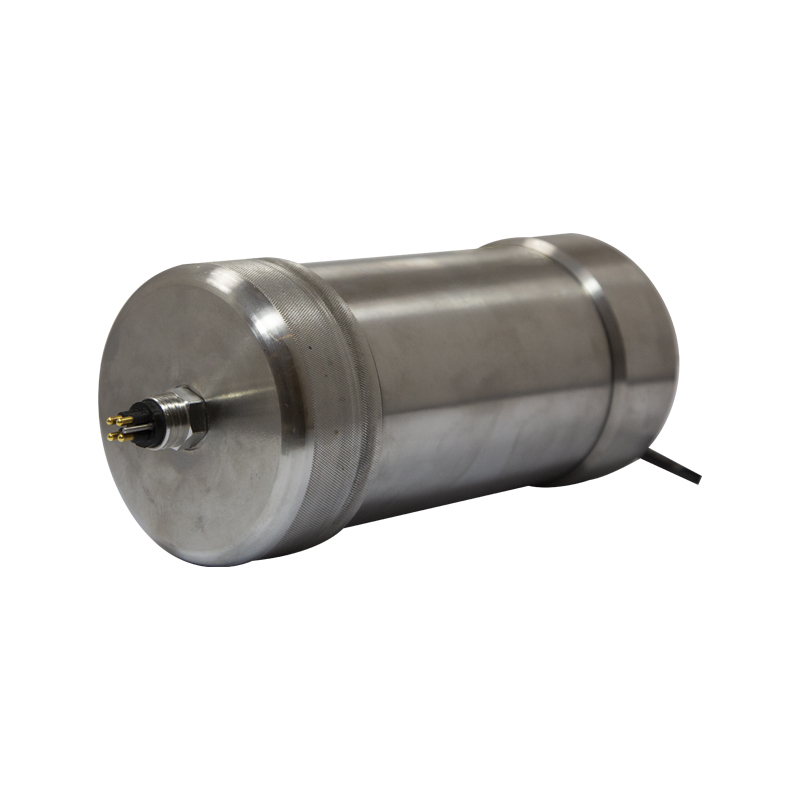

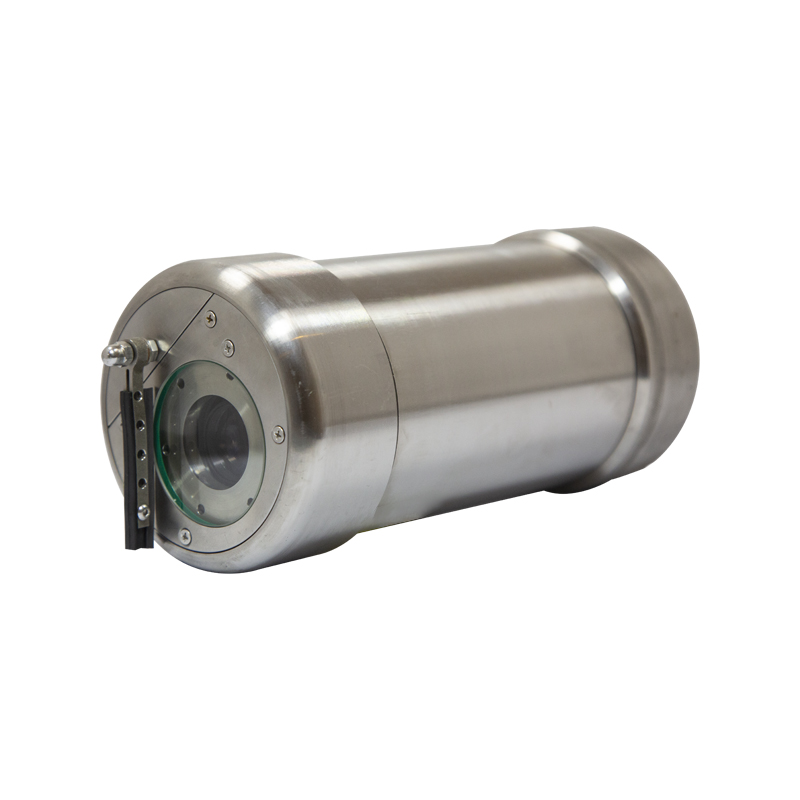

Product Show

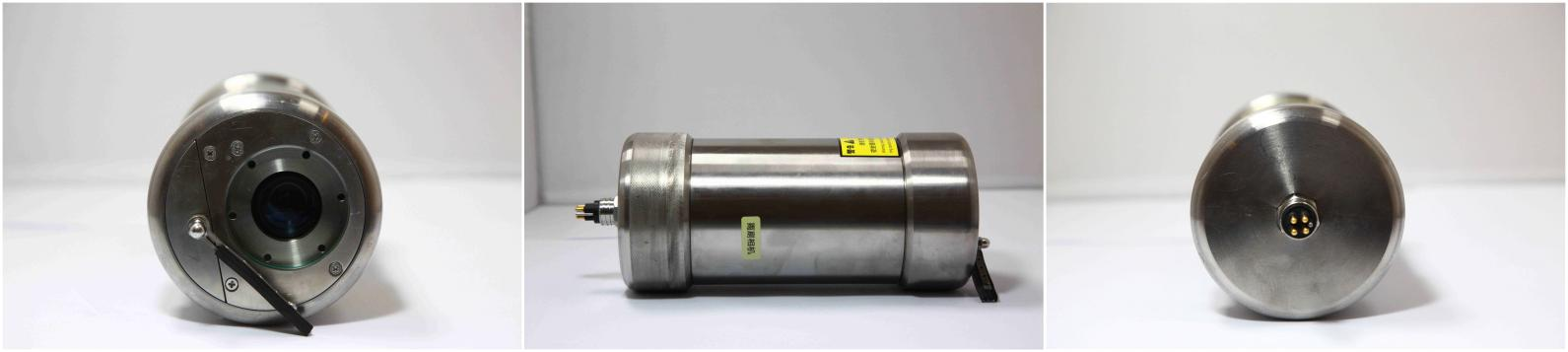

YS1

3


2


6
