* Pan 360° free rotation / Tilt 180°
* Dual dome IP camera
* Ruggy and affordable.
* Programmable functions: Focus, iris, day/night, white balance, etc.
* Data and power transfer by two wire
* Warranty 1 year, life-long maintenance.
GLF-UDC-DDN200-POM
Granfoo
GLF-UDC-DDN200-POM
Availability: | |
---|---|
Quantity: | |

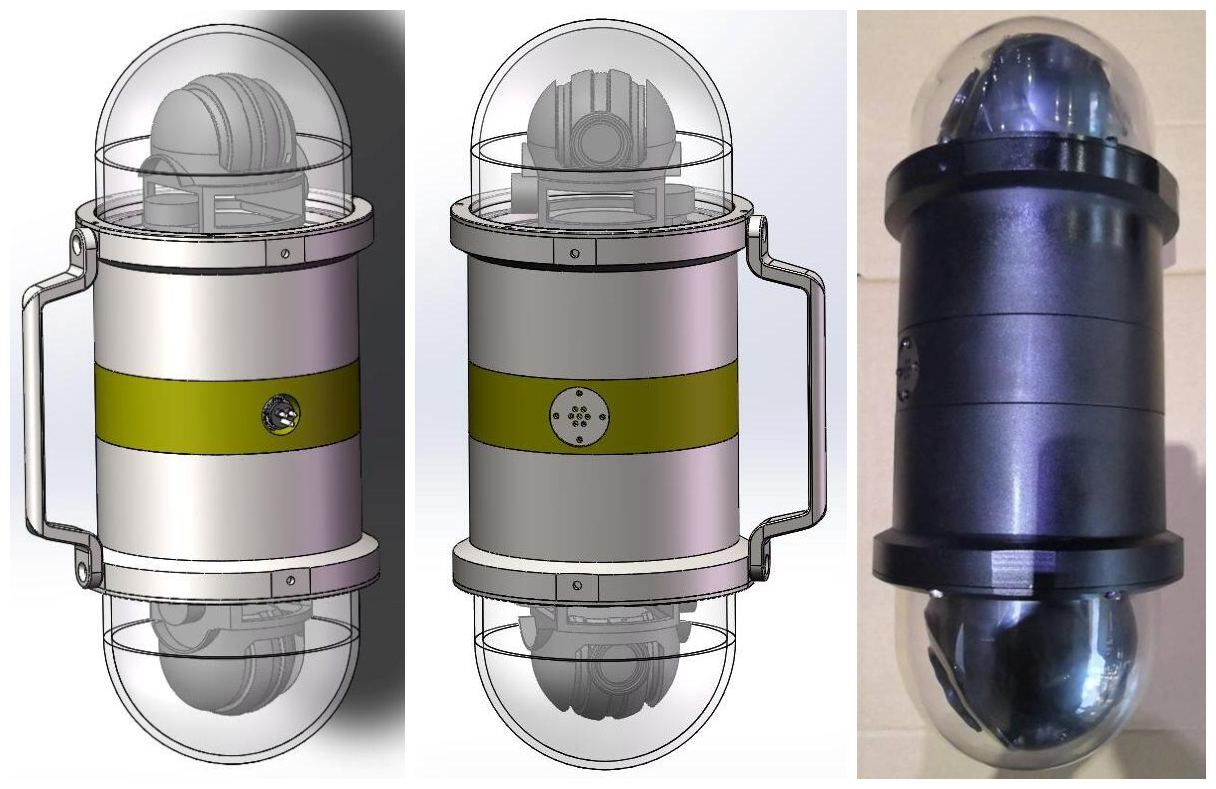

This is a Underwater Dual Dome IP Camera, the camera DN is 180mm, measuring depth is 100meters, optical zoom is 20X, housing material is POM. We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand. If you or your company are interested in this cameras please contact us, we shall very appreciation. |
This is a Underwater Dual Dome IP Camera, the camera DN is 180mm, measuring depth is 100meters, optical zoom is 20X, housing material is POM. We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand. If you or your company are interested in this cameras please contact us, we shall very appreciation. |
• Pan 360° free rotation / Tilt 180°
• Dual dome IP camera
• Ruggy and affordable.
• Programmable functions: Focus, iris, day/night, white balance, etc.
• Data and power transfer by two wire
• warranty 1 year, life-long maintenance.
• Pan 360° free rotation / Tilt 180°
• Dual dome IP camera
• Ruggy and affordable.
• Programmable functions: Focus, iris, day/night, white balance, etc.
• Data and power transfer by two wire
• warranty 1 year, life-long maintenance.
Model No. | GLF-UDC-DDN200-POM |
Image sensor | 1/2.8''progress Scan CMOS |
Resolution | 1920 x 1080 |
Signal to noise ratio | >50dB (AGC off ) |
Electronic shutter | 1-1/10,000s |
Horizontal view angle | 58.3-3.2 degrees (wide-angle telescope) |
Movement range | Pan 360°(endless )Tilt 180° |
Optical zoom | 20X |
Sensitivity | Color: 0.05Lux @ (F1.6, AGC ON) BW: 0.01Lux @ (F1.6, AGC ON) |
Resolution and frame rate | 50Hz:25fps(1920×1080)、25fps(1280×720) 60Hz:30fps(1920×1080)、30fps(1280×720) |
Video compression | H.265/H.264/MJPEG |
LED Light source | N/A |

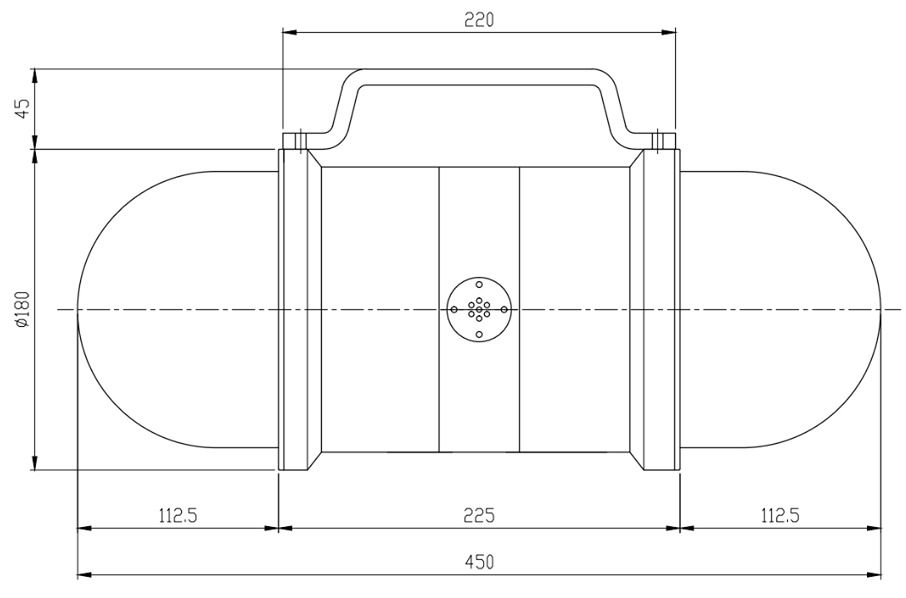

Camera size | Φ180*450 mm |
Connector | MCBH-2M |
Working temperature | -10℃ ~ 50℃ |
Working depth | 100 meter |
Interface type | RJ45 |
Power supply | 48V |
Window | Optical acrylic |
Housing | POM |
Weight in Air | 5.0 KG |
Model No. | GLF-UDC-DDN200-POM |
Image sensor | 1/2.8''progress Scan CMOS |
Resolution | 1920 x 1080 |
Signal to noise ratio | >50dB (AGC off ) |
Electronic shutter | 1-1/10,000s |
Horizontal view angle | 58.3-3.2 degrees (wide-angle telescope) |
Movement range | Pan 360°(endless )Tilt 180° |
Optical zoom | 20X |
Sensitivity | Color: 0.05Lux @ (F1.6, AGC ON) BW: 0.01Lux @ (F1.6, AGC ON) |
Resolution and frame rate | 50Hz:25fps(1920×1080)、25fps(1280×720) 60Hz:30fps(1920×1080)、30fps(1280×720) |
Video compression | H.265/H.264/MJPEG |
LED Light source | N/A |
Camera size | Φ180*450 mm |
Connector | MCBH-2M |
Working temperature | -10℃ ~ 50℃ |
Working depth | 100 meter |
Interface type | RJ45 |
Power supply | 48V |
Window | Optical acrylic |
Housing | POM |
Weight in Air | 5.0 KG |
Packing List
1. 1 pcs Camera
2. 10m cable

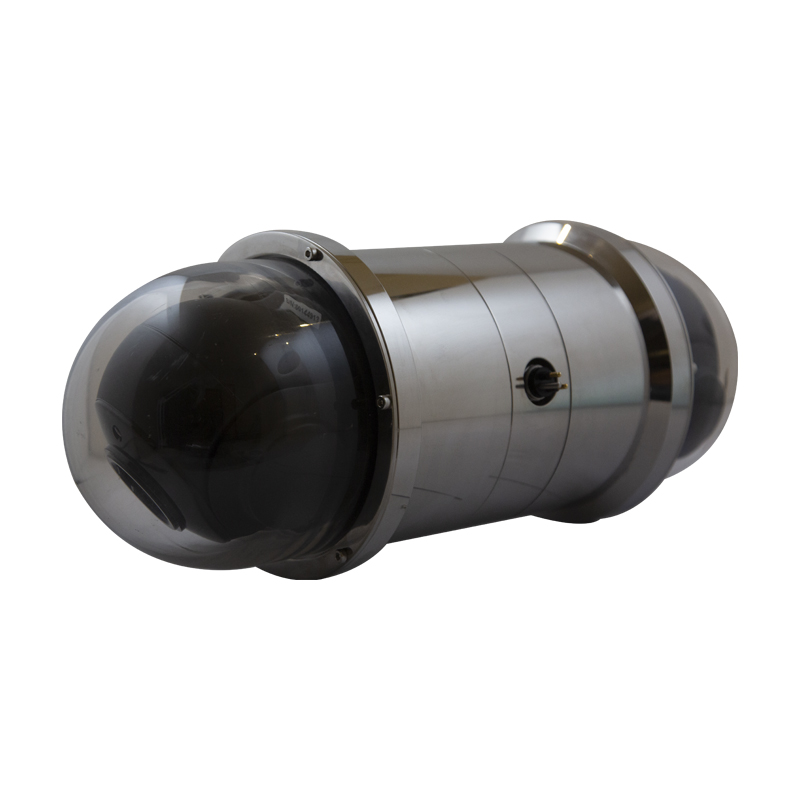

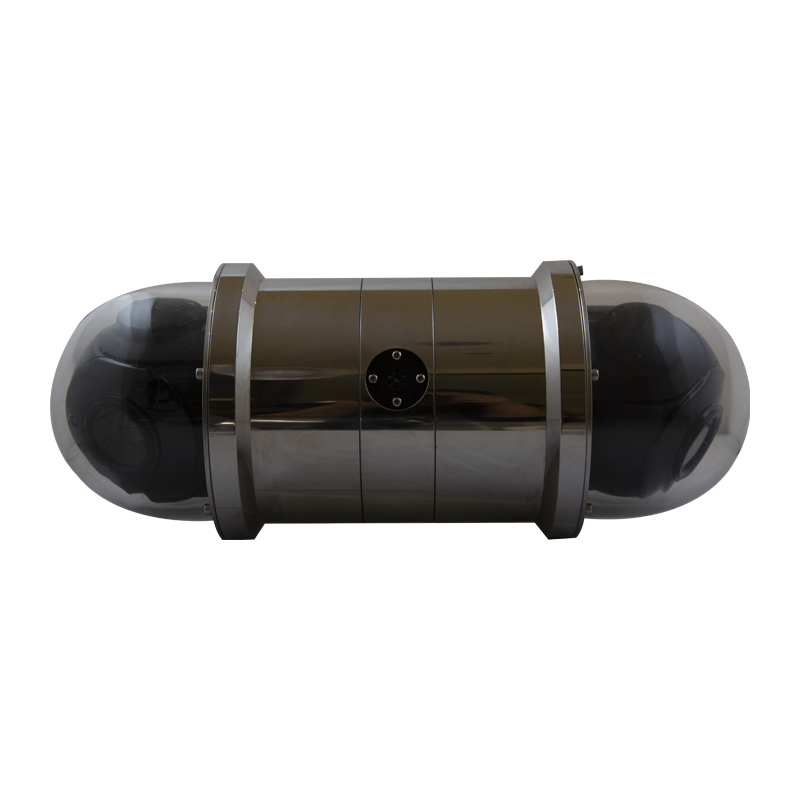

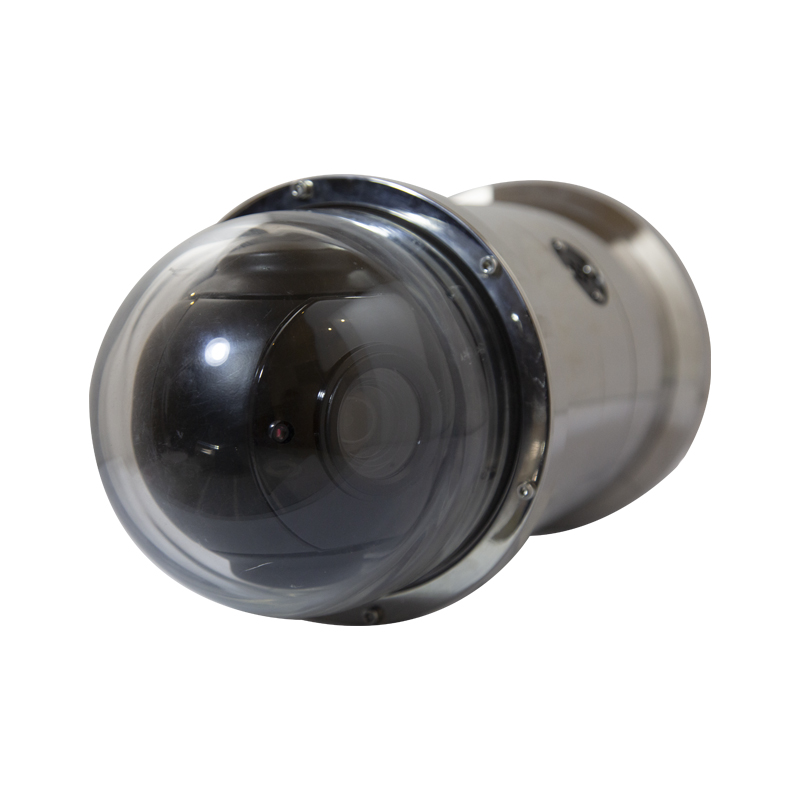

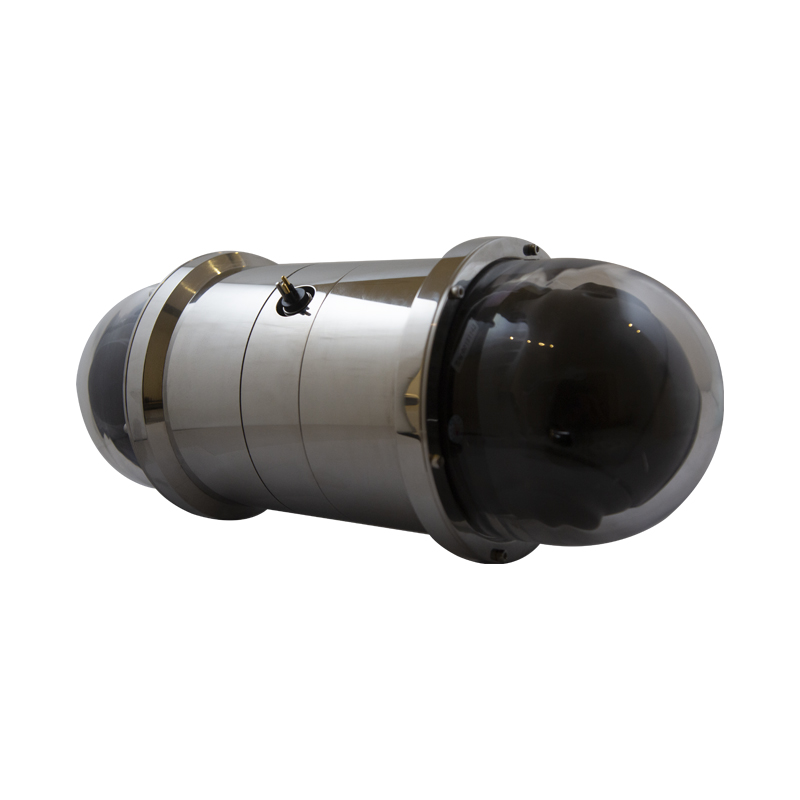

Product Show
Packing List
1. 1 pcs Camera
2. 10m cable
Product Show
