Factory Hot Sale Submarine Ip Camera Underwater HD PTZ Camera with Light And Pt Dual Camera

*20x optical zoom，built-in light source， HD 200W pixels
*PTZ camera is equipped with 50W fill light
*Open SDK,multiple network protocols and modes
*Support customization

Model:
GLF-UDC-PTZ5X
Brand:
Granfoo
Code:
GLF-UDC-PTZ5X

Availability:

Quantity:



Inquire

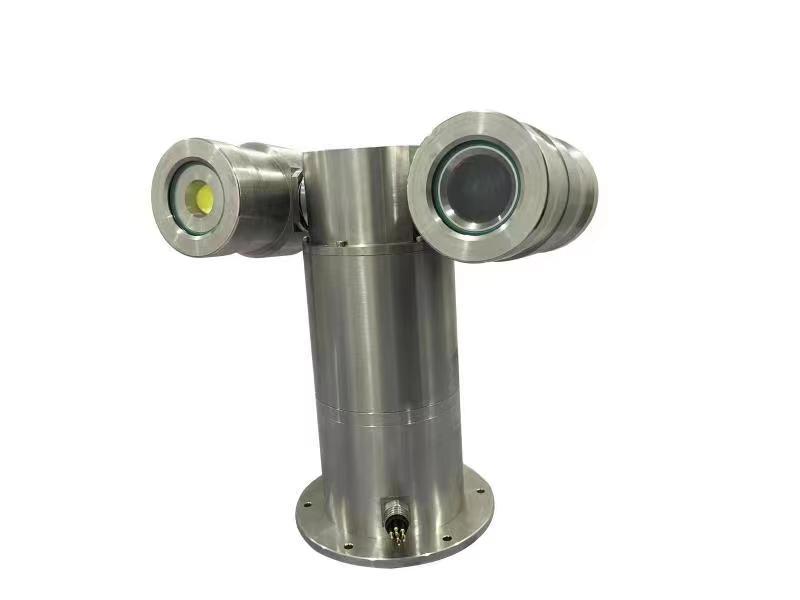

This is the Underwater PTZ Camera, shell material is stainless steel or titanium alloy, measuring depth is 300meters, other requirements can be customized.

We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.

If you or your company are interested in this cameras please contact us, we shall very appreciation.

d1290d5170773e1536a133a2c1a4949

Light parameters
Name	Underwater supplementary light（50W）
Model NO.	GLF-UWLL-50W
Main Parameters
Wick Type	American Puri fifth generation COB lamp bead
Light way	Spotlight75-85°；Astigmia≥150°
Luminance Flux	5600l m
Color Temperature	6500K
Color	White
Waterproof Level	0-300 meter
Voltage Supply	12-48V
Current	1750mA
Temperature	-10℃~40℃
Size	φ55*180
Material	Stainless Steel/Titanium Alloy
Features	Low energy consumption, high brightness, imported seals, long service life， convenient disassemble and maintain

Camera Parameters
Camera Name	Underwater network PTZ camera
Model NO.	GLF-UDC-PTZ5X
Main Parameters
Image Sensor	1/2.9" Progressive CMOS
Signal Type	Network Signal Info
Minimum Illumination	0.01Lux @(F1.5,AGC ON) color ，0.005Lux @(F1.5,AGC ON) B&W
DPI	Main code stream：50Hz: 25fps(1920×1080,1280×720) 60Hz: 30fps(1920×1080,1280×720) Subcode flow：50Hz: 25fps(720×576,352×288) 60Hz: 30fps(720×480,352×288)
Electronic Shutte	1/25~1/100000
Exposure Mode	Auto exposure/Aperture priority/shutter priority/manual exposure/low light priority/high light priority
Lens
Focal Length	5.4-108mm，20 times optical zoom
Aperture Value	F1.5-F2.7
Horizontal Fiel	50.2-2.9°(Wide-Tele)
M.O.D	10mm-1500mm((Wide-Tele)
Zoom Speed	About 3 s(Optics，Wide-Tele)
Focus Mode	Automatic/manual/semi-automatic/Single focus (effective in automatic mode)
Function
Function	Support HTTP：TCP/IP，HTTP，DHCP，DNS，DDNS，RTP，RTSP，PPPOE，SMTP，NTP，UPNP，SNMP，FTP，QOS Access Protocol：ONVIF，GB/T28181，ARSP，CGI，DH，HK Regional Block，Anti-flicker, fog removal, corridor mode, mirror, flip, backlight compensation, bright light suppression, bad spot compensation，Power-off memory, electronic anti - shake, distortion correction, THREE - dimensional positioning
General
Material	Stainless Steel/Titanium Allo
Waterproof Level	0-300 meter
Voltage Supply	24V DC（12V/48V）
Temperature	-30℃～+60℃

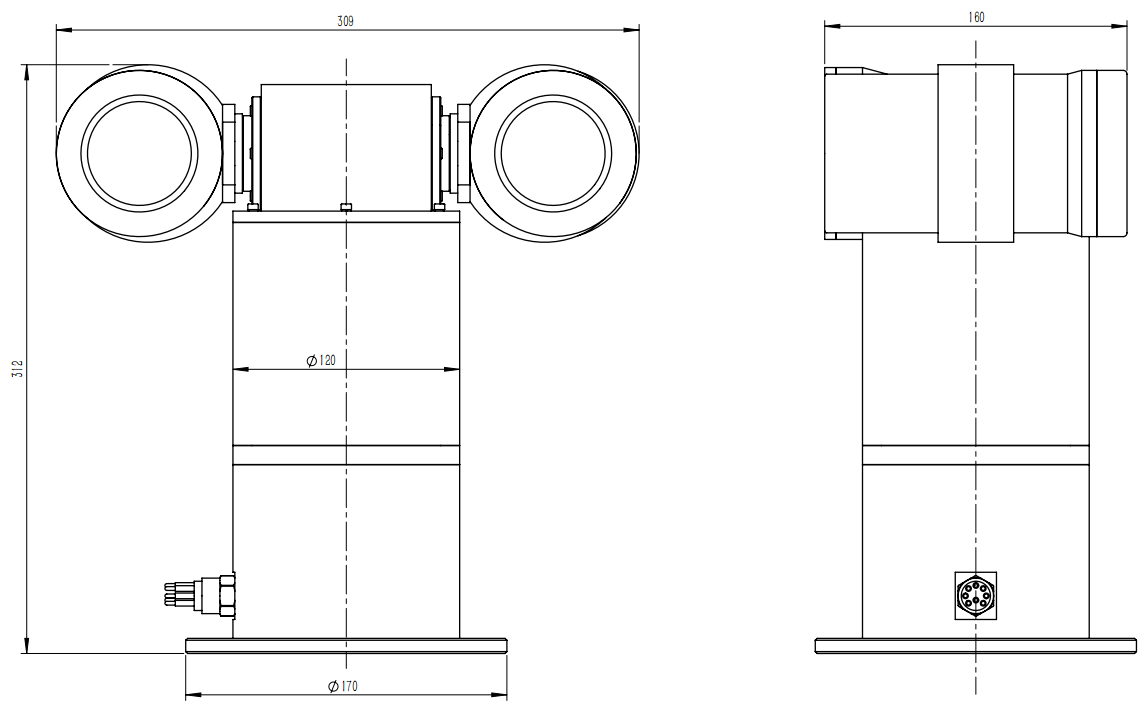

Size	312309φ120（pedestalφ170）
Weight	15Kg
Parts
Packing List	Cable、Adaptor、Warranty Card、Certification、Report
Support Customization	Depth Customizable
	Sensor （Temperature、Pressure...）
	Control Display Screen
