GLF-JCJ-2
Granfoo
GLF-JCJ-2
| Quantity: | |
|---|---|
Underwater Connector

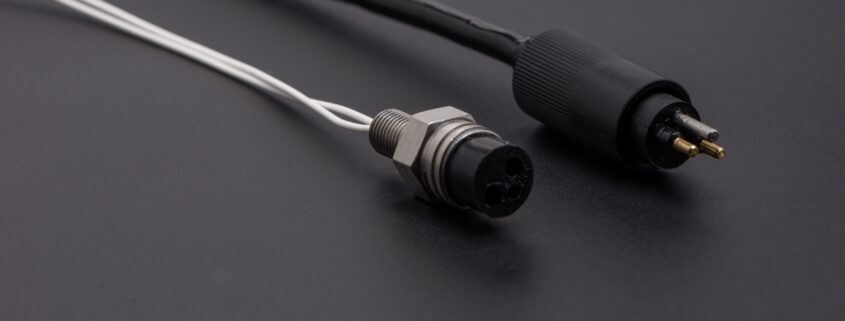

2-pin Male Bulkhead Connector + Female Inline Cable Connector
1. Small volume and lightweight, small footprint, professional wet plug.
2. High seawater corrosion-resistant stainless steel shell material.
3. Standard pin and hole position distribution, 7/16″-20 UNF tail thread, can be exchanged with different brands of the same model.
Dimensions Detail：
Specification | |
Structure | Materials and specifications |
Main | The seawater corrodes stainless steel |
Install screw | 7/16-20 UNF thread length is 15/19mm |
Socket head | Neoprene (special mixing rubber for underwater connector) |
Contact Pin | Gold-plated copper alloy, American standard pin |
Texture of material | 303 stainless steel (2 needle Ø 3.2, 3/4 needle Ø 2, 5/6/8 needle don’t need) |
O-rings | Nitrile rubber, the imported o-rings, parker 2-014, Ø 12.42 x 1.78 |
Locking lid | Polyformaldehyde resin (POM) |
Cable plug body | Special polyether |
Install line | Teflon, silver-plated pure copper. |
End cap | Neoprene (special mixing rubber for underwater connector) |
Cable plug | Pressure-resistant seawater special cable. |
Technical Performance | |
Item | Rating Value |
Depth | 0~1000 meters |
Voltage | 300V (resistance to voltage is greater than 1500V 60s) |
Working current | 2A~16A |
Insulation resistance | > 1000 m Ω (room temperature) |
Wet insertion frequency | > 500 times |
Working temperature | (-4~60)°C |
More Pins:
Bulkhead Connector Female Plug and In-Line Connector Male Socket (Dummy Locking include)
Bulkhead Connector Male Plug and In-Line Connector Female Socket (Dummy Locking include)

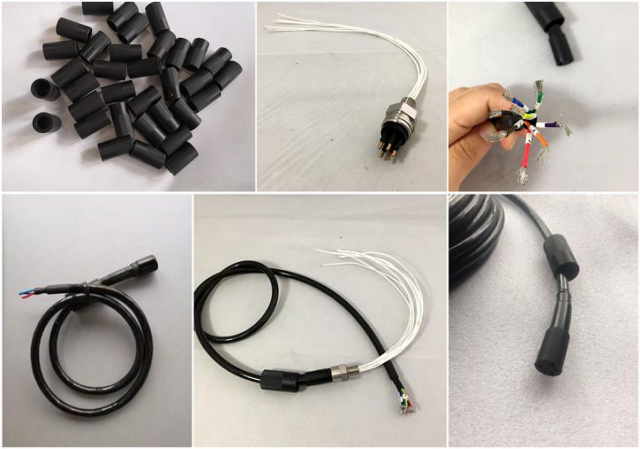

Product show
