Surveillance Camer, Underwater Camera with Ultra HD 90-degree Angle 4K DPI And Depth&Temp Sensor

1. High Resolution 12 Megapixel

2. Shell Compressive Standard Depth 300m

3. IP camera, ONVIF Compliant

4. Power And Data Transfer By 2 Wires Up To 600m

Model:
GLF-UDC-4K1200-DT
Brand:
Granfoo
Code:
GLF-UDC-4K1200-DT

Availability:

Quantity:



Inquire

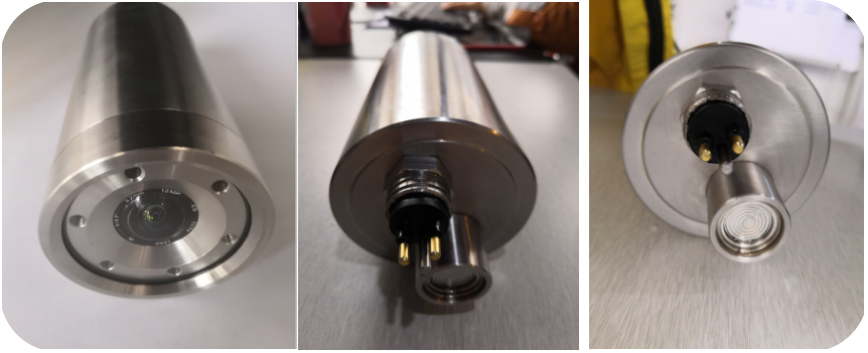

This is a 4K deph and temperature underwater HD camera, suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research.

We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.

If you or your company are interested in this cameras please contact us, we shall very appreciation.

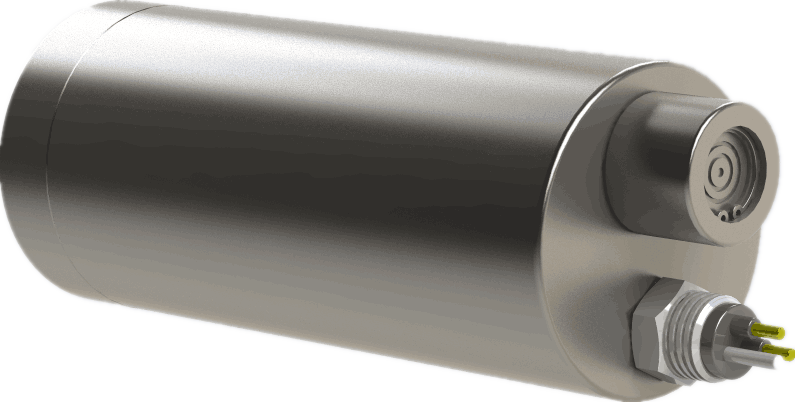

4kdt2

Model No.	GLF-UDC-4K1200-DT
Image sensor	1/1.7" Progressive Scan CMOS
Chip	Hass Chip Hi3519V101
Electronic shutter	1/25s~1/10000s
Minimum illumination	0.0001Lux@F1.2
SIGNAL-NOISE RATIO	≥50dB (AGC OFF)
Day-night conversion mode	Photosensitive Detection / Video Detection / Time Detection
Wide dynamic range	≥80dB
Noise reduction	3D Digital Noise Reduction
Video compression standard	H.265+/H.265/H.264/MJPEG
H.265 encoding type	Main Profile
Video bit rate	32 Kbps~16Mbps
Audio compression format	G.711a/ G.711u/G.726
Image settings	Adjustable brightness, contrast, saturation, sharpness, white balance; AWB(auto white balance), AGC(automatic gain), AE(automatic exposure control), AIC (auto iris correction); Support for privacy zone occlusion; OSD Stacked Plus; Image Rotation: normal 90°/270° automatic, manual or automatic color to black and other switching methods
Maximum image size	4000×3000
Video resolution	Main Stream 4000×3000/4096×2160 4K/3840×2160 4K/2592×1944 Secondary Stream 720P(1280×720)/D1(704×576)/VGA(640×480)
Video frame rate	50Hz: 15fps (4000×3000, 4096×2160), 25fps (3840×2160, 1920×1080, 1280×720) 60Hz: 15fps (4000×3000, 4096×2160), 30fps (3840×2160, 1920×1080, 1280×720)
Character overlay	Support

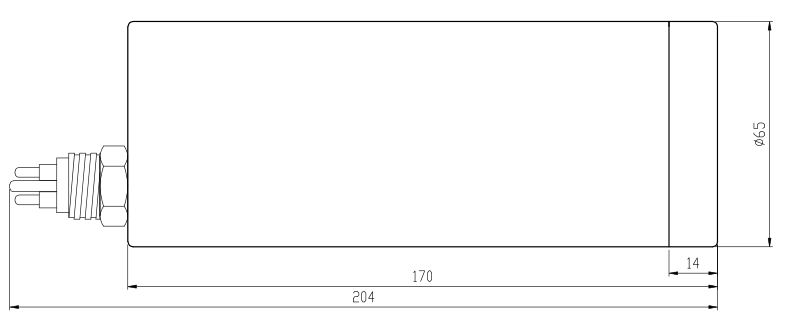

Dimension	65mm(D)x170mm(L) Excluding Connector
View angel	90 degree

Model NO.	Depth and Temperature Sensor
Measuring medium	Liquid or Gas(compatible with contact material)
Overall material	Diaphragm---316L Stainless Steel(contact with the medium)
Pressure range	0~6Mpa
Pressure method	Gauge Pressure, Absolute Pressure, Negative Pressure
Output signal	RS485 (standard Modbus-RTU protocol)
Supply voltage	12~36VDC
Working conditions	medium temperature -20~85℃
Ambient temperature	-20~85℃
Ambient humidity	0%~95%RH (no condensation, no condensation)
Temperature compensation	-10~70℃
Accuracy level	0.5%FS(range ≥10KPa)
Anti-seismic performance	10g (20...2000HZ)
Overload capacity	200%
Response frequency	Analog Signal Output≤500HZ Digital Signal Output≤5HZ
Stability performance	±0.1% FS/year
Temperature drift	±0.01%FS/year
Maximum power	≤0.02Us(W)
