Product Feature
1. Shell Compressive Standard Depth 300m
2. High Resolution 2 Megapixel
3. Standard H.264 video compression technology, accurate and stable code stream control
4. IP camera, ONVIF Compliant
5. Open SDK, support multiple network protocols and networking methods
6. Customized products according to different situations
GLF-UDC-LI200-POM5X
Granfoo
GLF-UDC-LI200-POM5X
Availability: | |
---|---|
Quantity: | |
This is a low-light underwater camera, the camera DN is 65mm, optical zoom is 5X, suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research. We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand. If you or your company are interested in this cameras please contact us, we shall very appreciation. |
This is a low-light underwater camera, the camera DN is 65mm, optical zoom is 5X, suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research. We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand. If you or your company are interested in this cameras please contact us, we shall very appreciation. |
1. Shell Compressive Standard Depth 300m
2. High Resolution 2 Megapixel
3. Minimum Illumination 0.00001Lux@F1.2
4. IP camera, ONVIF Compliant
5. Power And Data Transfer By 2 Wires Up To 600
1. Shell Compressive Standard Depth 300m
2. High Resolution 2 Megapixel
3. Minimum Illumination 0.00001Lux@F1.2
4. IP camera, ONVIF Compliant
5. Power And Data Transfer By 2 Wires Up To 600
Model No. | GLF-UDC-LI200-POM5X |
Image sensor | 1/2.9" CMOS sensor |
Resolution | 2 Megapixel |
Sensitivity | 0.00001Lux@F1.4 (Color mode); 0.00001Lux@F1.2 (Monochrome) |
SIGNAL-NOISE RATIO | ≥50dB(AGC OFF) |
Video compression | H.264 Main Profile / M-JPEG |
Voltage | 48VDC |
Optical zoom | 5x |
Network protocol | TCP/IP, HTTP NTP, IGMP, DHCP, UDPSMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P |
Internal light | 6PCS*1Watt (Optional without internal ledlight) |
Lens | 3.6mm (Optional 3.2mm/ 6mm/ 8mm) |
Connector | MCBH2MSS |
Measuring depth | 300m (Optional MAX 6000m) |
Storage temperature | -30-60℃ |
Operating temperature | -20-50℃ |
Operating humidity | Relative Humidity Below 90% |
Standard housing | POM |
Window | Acrylic 300m (Optional Sapphire 6000m ) |
Dimensions | 65mm(D)x170mm(L) Excluding Connector |
Weight in the air | 1.5KG |
Model No. | GLF-UDC-LI200-POM5X |
Image sensor | 1/2.9" CMOS sensor |
Resolution | 2 Megapixel |
Sensitivity | 0.00001Lux@F1.4 (Color mode); 0.00001Lux@F1.2 (Monochrome) |
SIGNAL-NOISE RATIO | ≥50dB(AGC OFF) |
Video compression | H.264 Main Profile / M-JPEG |
Voltage | 48VDC |
Optical zoom | 5x |
Network protocol | TCP/IP, HTTP NTP, IGMP, DHCP, UDPSMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P |
Internal light | 6PCS*1Watt (Optional without internal ledlight) |
Lens | 3.6mm (Optional 3.2mm/ 6mm/ 8mm) |
Connector | MCBH2MSS |
Measuring depth | 300m (Optional MAX 6000m) |
Storage temperature | -30-60℃ |
Operating temperature | -20-50℃ |
Operating humidity | Relative Humidity Below 90% |
Standard housing | POM |
Window | Acrylic 300m (Optional Sapphire 6000m ) |
Dimensions | 65mm(D)x170mm(L) Excluding Connector |
Weight in the air | 1.5KG |

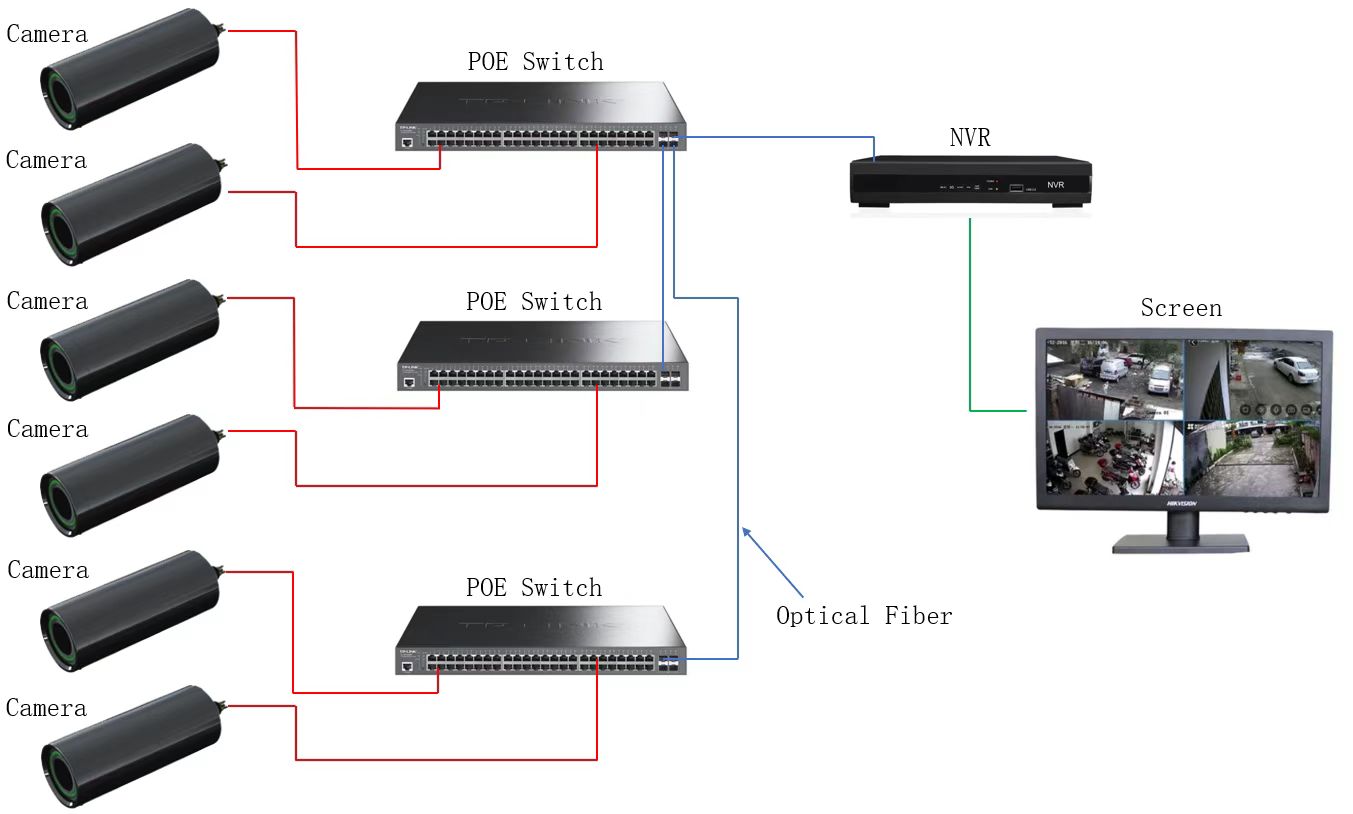

Connecting
Product Show

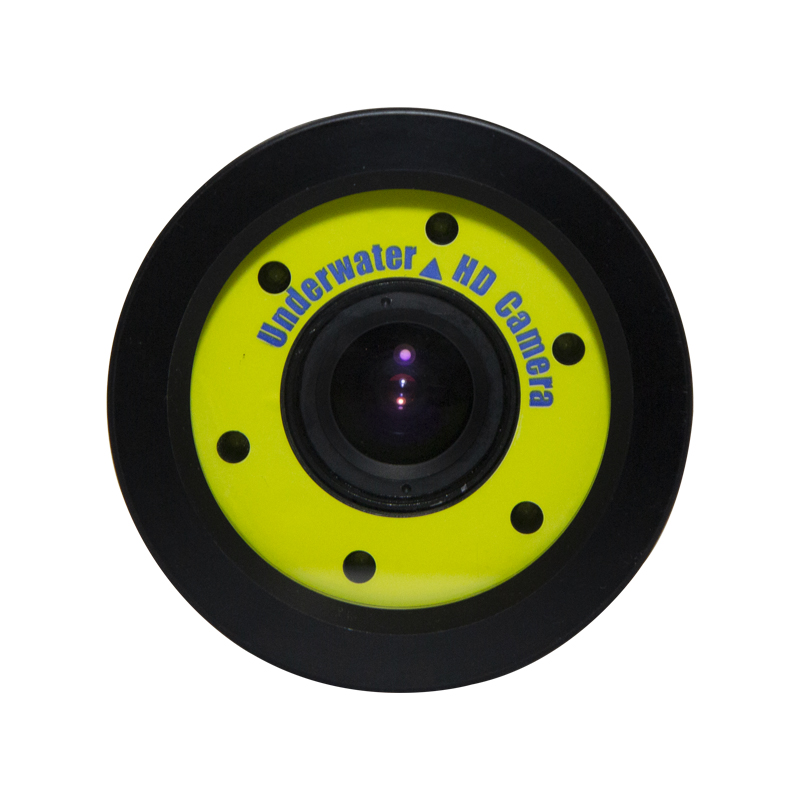

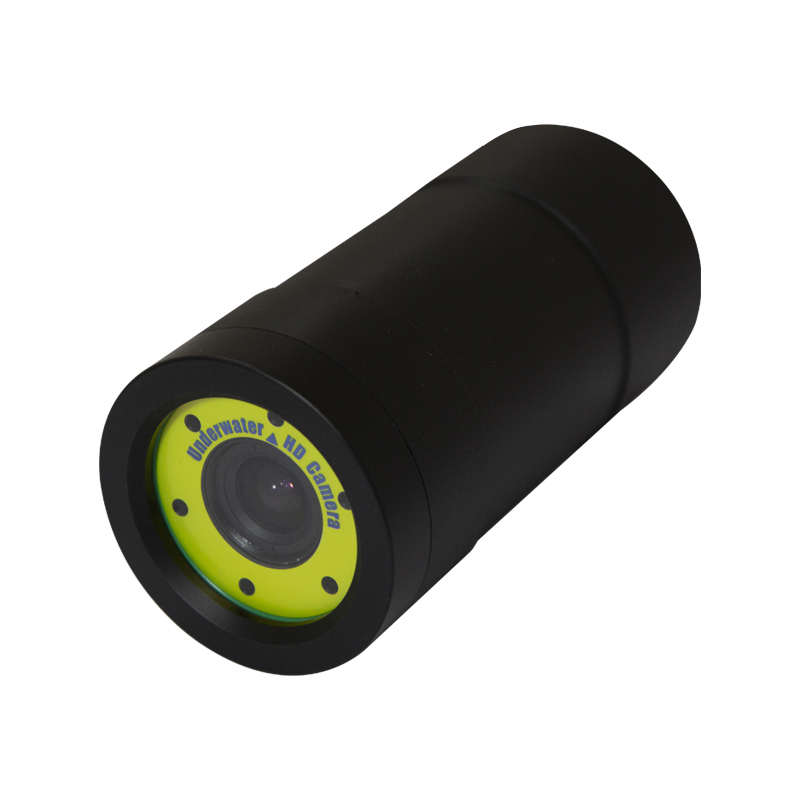

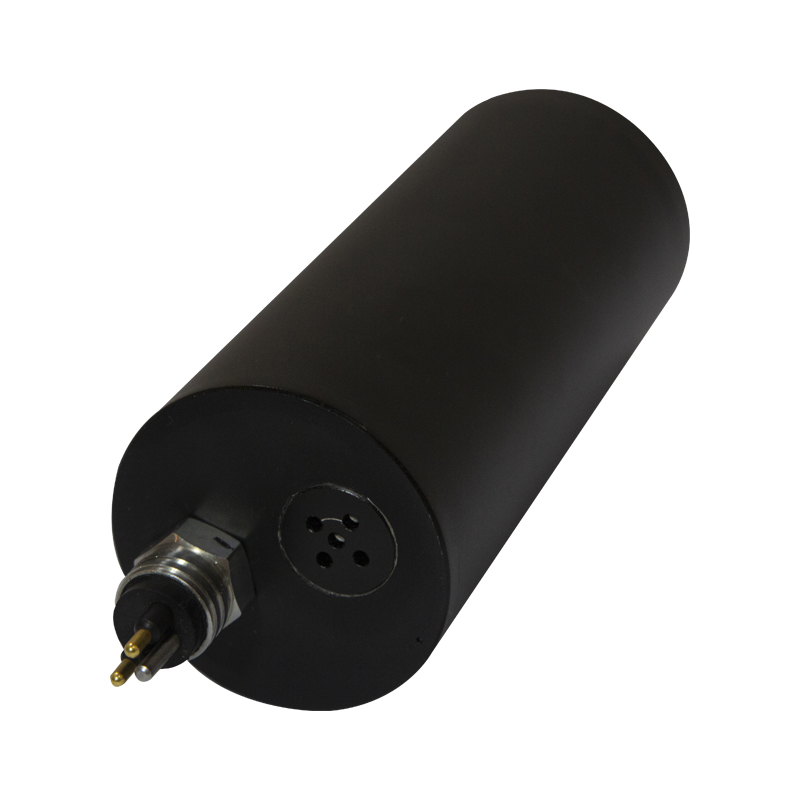

POM Low Light Underwater Camera
Lens
Wiring
Connecting
Product Show
POM Low Light Underwater Camera
Lens
Wiring
