AHD Subsea Camera Mimi Camera

* 1/2.8’’ FOUR IN ONE  1080P

* IMX291+NVP2441H

* Support coaxial high-definition transmission, image clear, delicate

* Support OSD menu

* Support UTC function

* Adaptive digital noise reduction 2D-DNR + 3D-DNR

* 6KV lightning protection

* Dia30*100mm

  • GLF-UDC-MINI-S200

  • Granfoo

  • GLF-UDC-MINI-S200

Availability:
Quantity:

This is a mini subsea camera, the camera DN is 30mm, suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

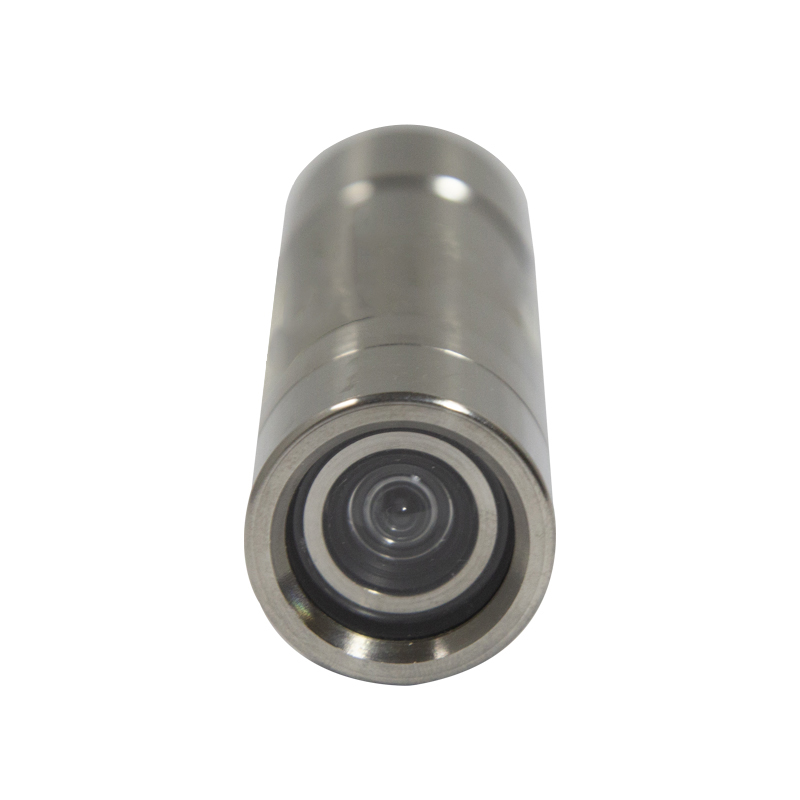

6.jpg修改


• 1/2.8’’ FOUR IN ONE 1080P

• IMX291+NVP2441H

• Support coaxial high-definition transmission, image clear, delicate

• Support OSD menu

• Support UTC function

• Adaptive digital noise reduction 2D-DNR + 3D-DNR

• 6KV lightning protection

• Dia30*100mm



Model No.

GLF-UDC-MINI-S200

Image Sensor

1/2.8’’ SONY IMX291+NVP2441H

System Standard

PAL / NTSC

Resolution

1920(H)*1080(V)

Sensitivity

0.01LUX/F1.2

Horizontal Definition

Coaxial HD 200w Pixel 1080p, Analog: 2000TVL

Day-night mode

External control (default) Auto / color / black and white

Frame Rate

1080P@25fps / 1080P@30fps

Synchronization Mode

Internal synchronization

Shutter

AUTO /1/50~1/50000s

Signal-Noise Ratio

>46dB

Video Output

AHD/TVI/CVI/CVBS Can be switched

Connector

MCBH4M

Working Temperature

-20°~ 60°

Working humidity

Relative humidity below 90%

Power Supply

DC12V (±10%)

Operating Depth

0-300M (customized)

Dimension

Dia30*100mm (do not including connector )

Housing Material

Stainless(optional :Aluminum /Titanium )

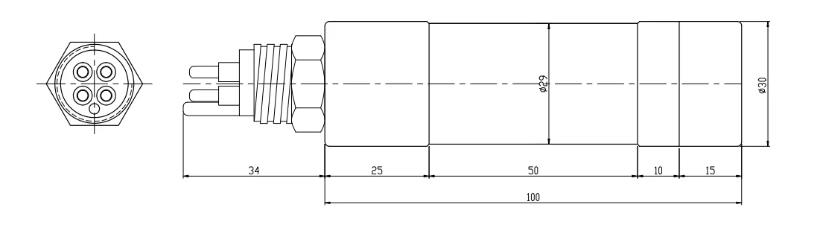

mini


Packing List

1. Camera

2. 10m cable

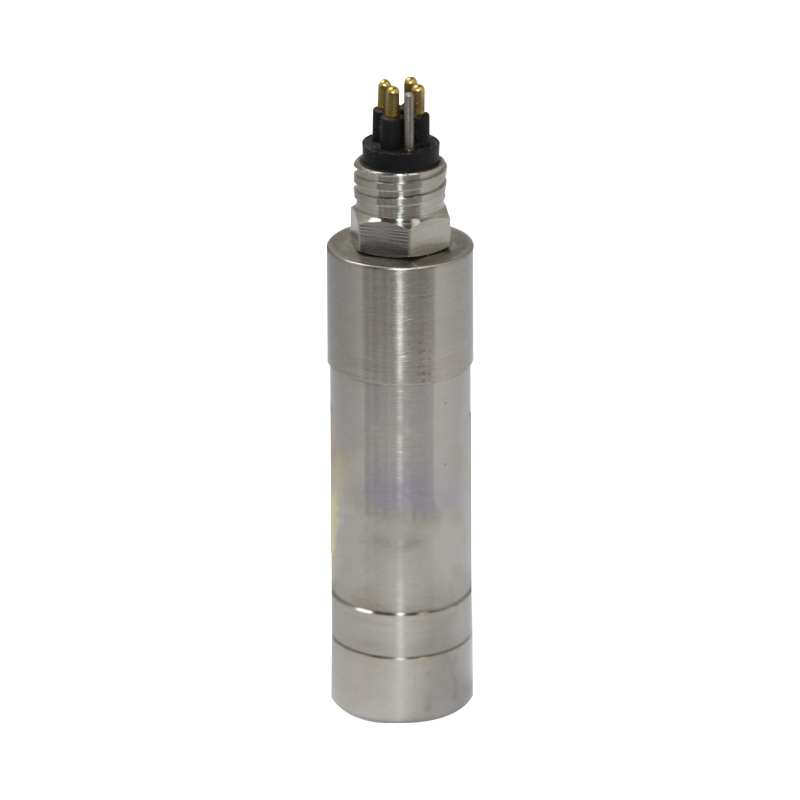

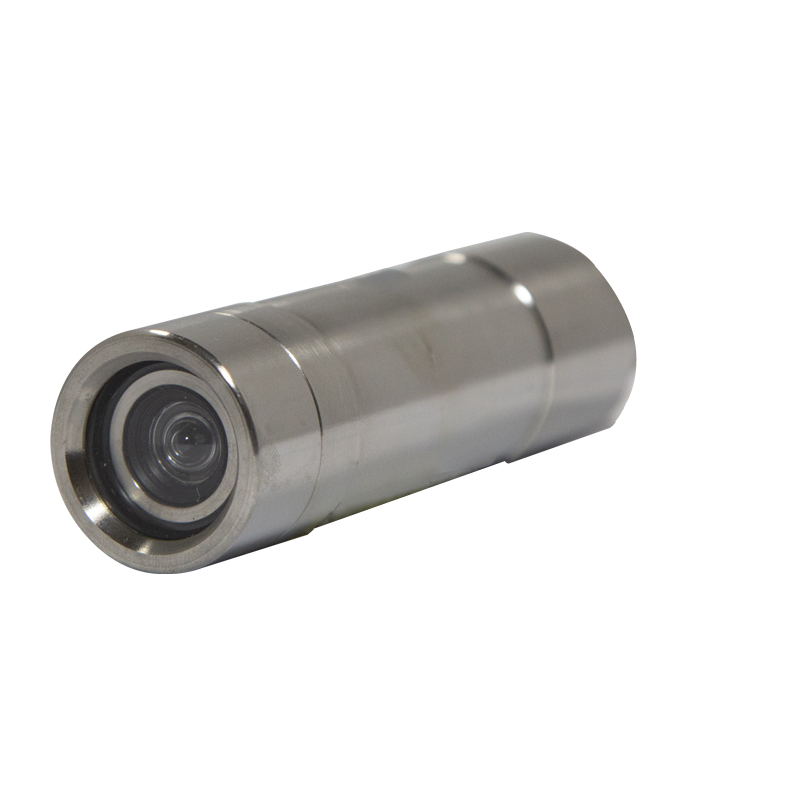

Product Show

5
6.jpg修改


2
