* Pan 360° free rotation / Tilt 180°
* Dual dome IP camera
* Ruggy and affordable.
* Programmable functions: Focus, iris, day/night, white balance, etc.
* Data and power transfer by two wire
* Warranty 1 year, life-long maintenance.
GLF-UDC-DDN200-SS
Granfoo
GLF-UDC-DDN200-SS
| Availability: | |
|---|---|
| Quantity: | |
This is a Underwater Dual Dome IP Camera, the camera DN is 180mm, suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research, etc. We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand. If you or your company are interested in this cameras please contact us, we shall very appreciation. |
This is a Underwater Dual Dome IP Camera, the camera DN is 180mm, suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research, etc. We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand. If you or your company are interested in this cameras please contact us, we shall very appreciation. |
• Pan 360° free rotation / Tilt 180°
• Dual dome IP camera
• Ruggy and affordable.
• Programmable functions: Focus, iris, day/night, white balance, etc.
• Data and power transfer by two wire
• Warranty 1 year, life-long maintenance
• Pan 360° free rotation / Tilt 180°
• Dual dome IP camera
• Ruggy and affordable.
• Programmable functions: Focus, iris, day/night, white balance, etc.
• Data and power transfer by two wire
• Warranty 1 year, life-long maintenance
| Model No. | GLF-UDC-DDN200-SS |
| Resolution | 1920 x 1080 |
| Signal to noise ratio | >50dB (AGC off ) |
| Electronic shutter | 1-1/10,000s |
| Horizontal view angle | 58.3-3.2 degrees (wide-angle telescope) |
| Movement range | Pan 360°(endless )Tilt 180° |
| Optical zoom | 20X |
| Sensitivity | Color: 0.05Lux @ (F1.6, AGC ON) BW: 0.01Lux @ (F1.6, AGC ON) |
| Resolution and frame rate | 50Hz:25fps(1920×1080)、25fps(1280×720) 60Hz:30fps(1920×1080)、30fps(1280×720) |
| Video compression | H.265/H.264/MJPEG |
| LED Light Source | N/A |
| Connector | MCBH-2M |
| Working Temperature | -10℃ ~ 50℃ |
| Working Depth | 100 meter |
| Interface type | RJ45 |
| Power supply | 48V |
| Window | Optical acrylic |
| Housing | Stainless steel 304 |
| Weight in Air | 5.0 KG |
| Camera Size | Φ180*450 mm |
| Model No. | GLF-UDC-DDN200-SS |
| Resolution | 1920 x 1080 |
| Signal to noise ratio | >50dB (AGC off ) |
| Electronic shutter | 1-1/10,000s |
| Horizontal view angle | 58.3-3.2 degrees (wide-angle telescope) |
| Movement range | Pan 360°(endless )Tilt 180° |
| Optical zoom | 20X |
| Sensitivity | Color: 0.05Lux @ (F1.6, AGC ON) BW: 0.01Lux @ (F1.6, AGC ON) |
| Resolution and frame rate | 50Hz:25fps(1920×1080)、25fps(1280×720) 60Hz:30fps(1920×1080)、30fps(1280×720) |
| Video compression | H.265/H.264/MJPEG |
| LED Light Source | N/A |
| Connector | MCBH-2M |
| Working Temperature | -10℃ ~ 50℃ |
| Working Depth | 100 meter |
| Interface type | RJ45 |
| Power supply | 48V |
| Window | Optical acrylic |
| Housing | Stainless steel 304 |
| Weight in Air | 5.0 KG |
| Camera Size | Φ180*450 mm |

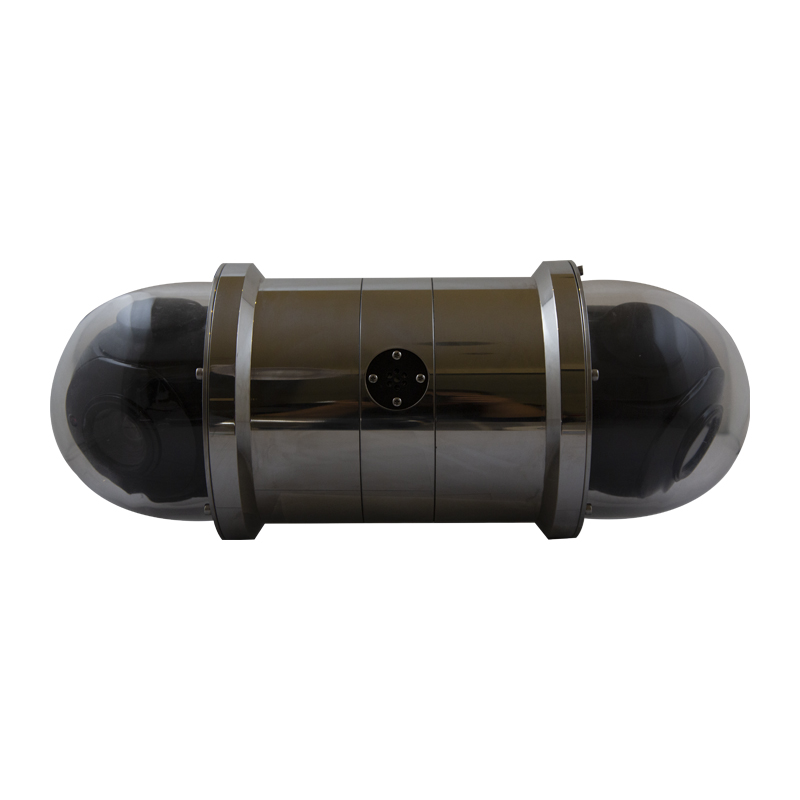

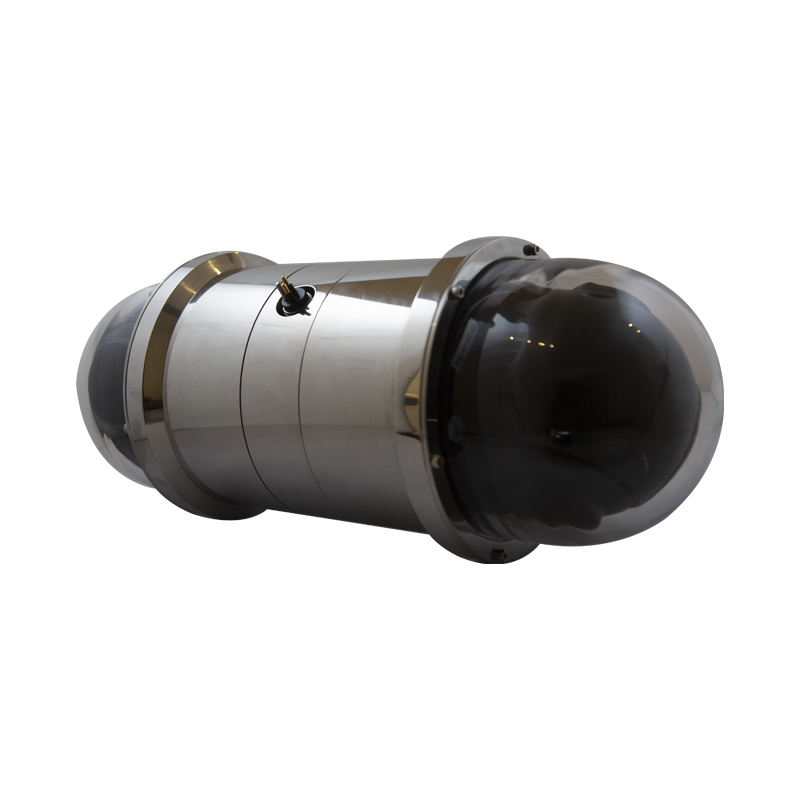

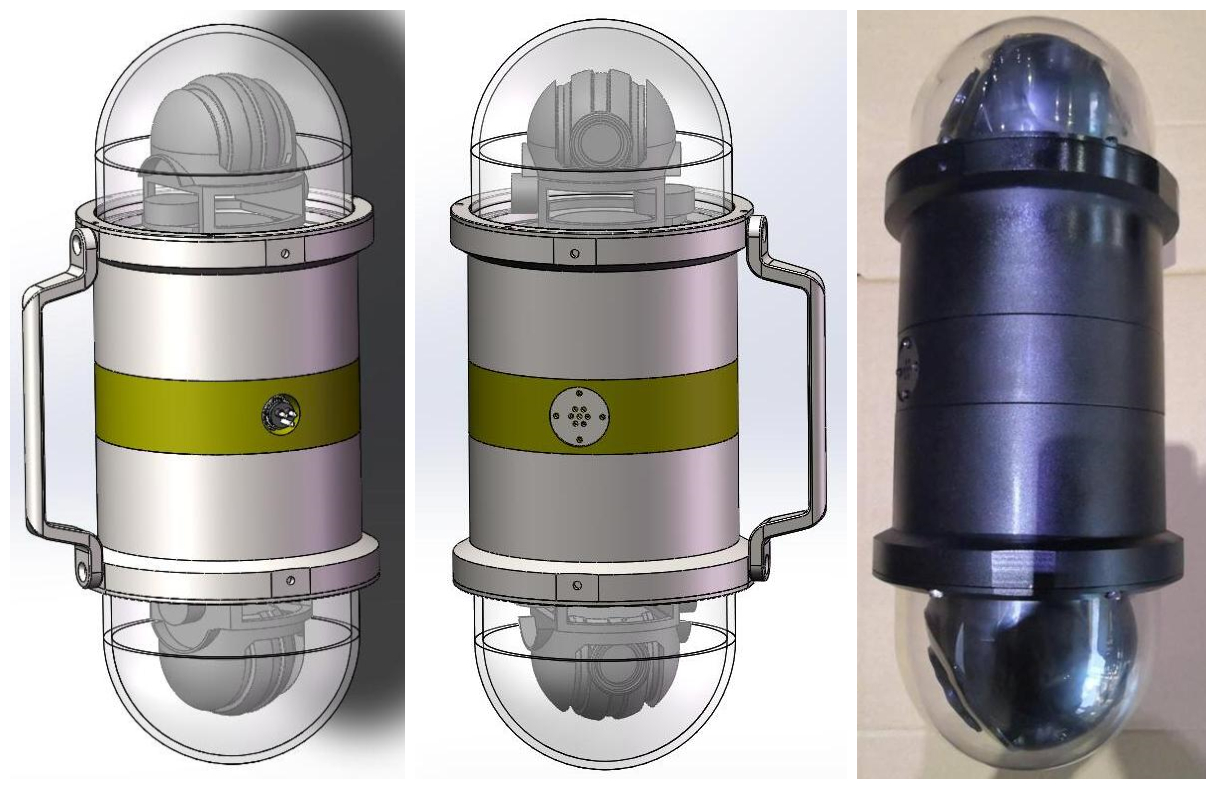

Product Show
