Spherical Multi-angle Rotatable Underwater Camera

*20 times Optical variable , high performance sensor, resolution up to 1920*1080

* Continuous rotation of 360° in horizontal direction,Vertical direction -5°-90°,No surveillance blind spots

* SDK open, Support a variety of network protocols and networking

* Products can be customized

  • GLF-UDC-D120

  • Granfoo

  • GLF-UDC-D120

Availability:
Quantity:

This is a Underwater HD network Dome Camera, the camera is cylindrical with a diameter of 110mm, with 2 Mega pixels and optical zoom is 20X , suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.








H30a071a2570c4965ba89642c9f485577y.jpg_250x250



* 20 times Optical variable , high performance sensor, resolution up to 1920*1080

* Continuous rotation of 360° in horizontal direction,Vertical direction -5°-90°,No surveillance blind spots

* SDK open, Support a variety of network protocols and networking

* Products can be customized



Name

Underwater HD network Dome Camera(2 Mega pixels)

Model

GLF-UDC-D120

Main Parameters

Image sensor

1/2.8"SONY CCD

Signal types

Network signal

Resolution

2 Mega pixels

Minimum illumination

Colour:0.05Lux@(F1.4,AGC ON)

Black and white :0.01Lux @(F1.4AGC ON)

Video processing

H.264/MJPEG

Network interface

RJ45 networking interface,support 10M/100M network data

Focused mode

Automatic/semi-automatic/manual

Day & night mode

Automatic ICR filter color turns black

Compatibility

Support ONVIF platforms such as Haikang, CMS and UC2,

and support mainstream NVR ONVIF

Lens

Lens

4.7-94mm, 20 times optical

Focal length

20 times Optical variable

Function

Function

It supports the memory function of power off state and automatically

returns to the cradle head and lens state before power off

Precision motor drive, sensitive reaction, smooth operation,

accuracy deviation less than 0.1 degree, no image jitter

Provide a complete SDK development kit

Specification

Housing materials

Stainless steel

Waterproof level

0-600m

Power supply

48VDC

Working temperature

-10℃ ~ 50℃

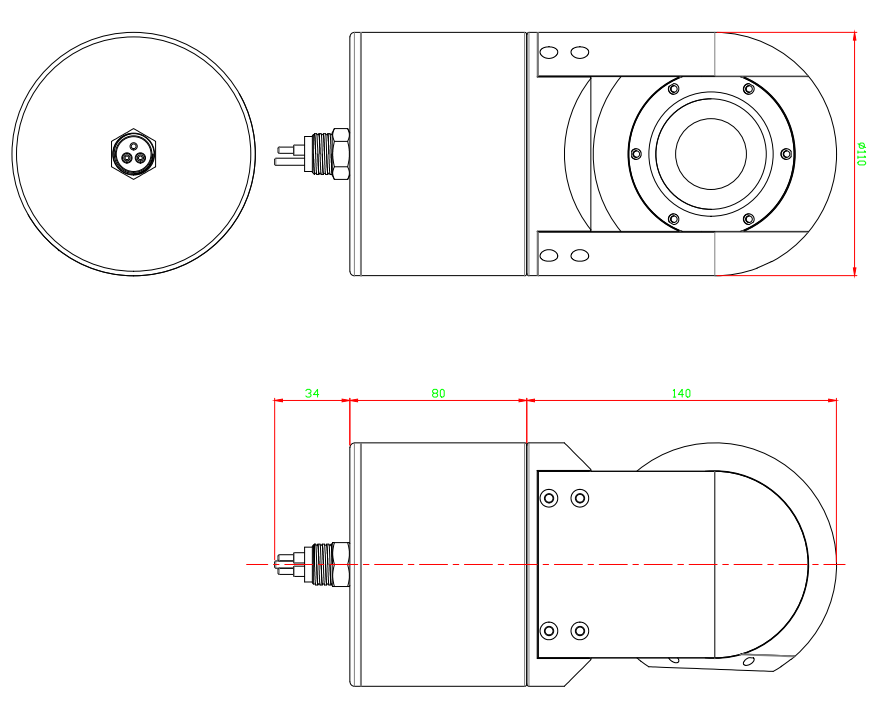

Size

Φ120*220(not including 34mm connector)

Weight

10KG

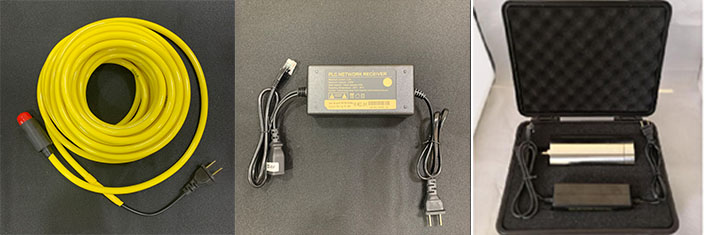

Spare parts

Package

Cables, adapters, warranty cards, certifications, suppression reports

Support customization

Depth

Sensor(temperature、pressure...)

Control display terminal

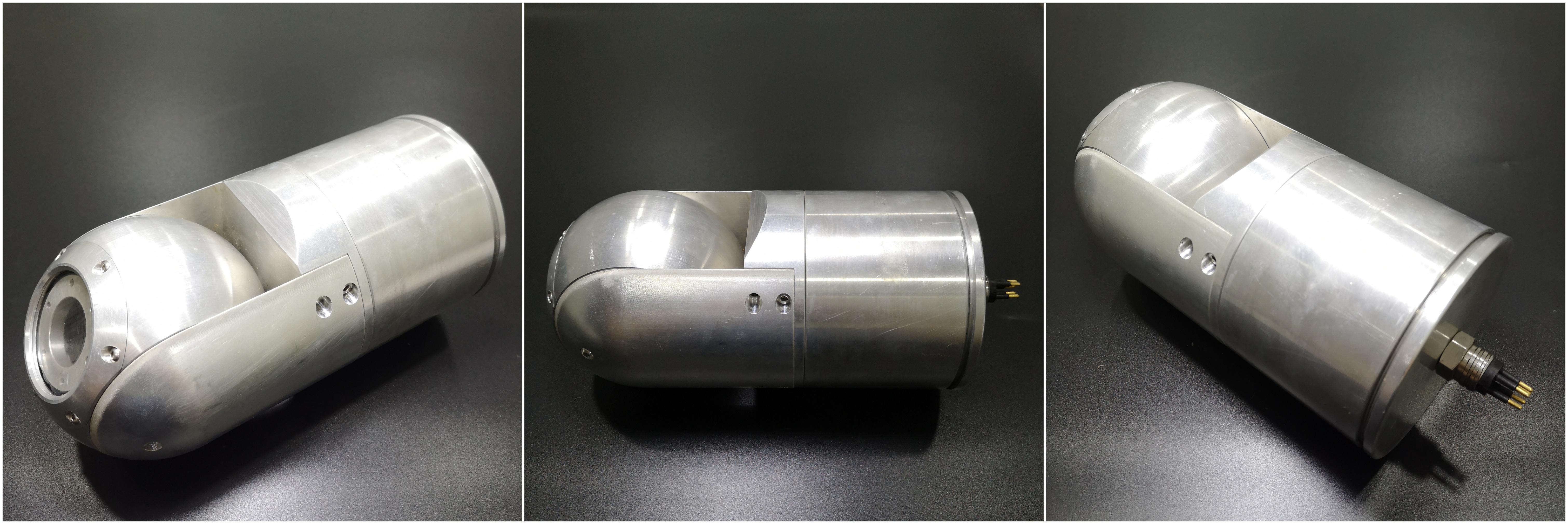

Product Show

H30a071a2570c4965ba89642c9f485577y.jpg_250x250


H558c78fcea1242809a90cabc53241696C.jpg_250x250


H25fcb6a787bd44a988d9237bbd8dcdbfn.jpg_250x250


DN120 2

D120
