Large Rotatable with Protective Cover for Multiple Angles PTZ Underwater Camera

* Pan 360° free rotation / Tilt 180°

* Ruggy and affordable.

* Programmable functions: Focus, iris, day/night, white balance, etc.

* Data and power transfer by two wire

* Warranty 1 year, life-long maintenance.

  • GLF-UDC-DN200

  • Granfoo

  • GLF-UDC-DN200

Availability:
Quantity:
Inquire

This is a Underwater PT Dome Camera, the camera is cylindrical with a diameter of 180mm, suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research, etc.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

 1


• Pan 360° free rotation / Tilt 180°

• Ruggy and affordable.

• Programmable functions: Focus, iris, day/night, white balance, etc.

• Data and power transfer by two wire

• warranty 1 year, life-long maintenance.


Model No.GLF-UDC-DN200
Image sensor1/2.8''progress Scan CMOS
Resolution1920 x 1080
Signal to noise ratio>50dB (AGC off )
Electronic shutter1-1/10,000s
Horizontal view angle58.3-3.2 degrees (wide-angle telescope)
Movement rangePan 360°（endless ）Tilt 180°
Optical zoom20X
Sensitivity

Color: 0.05Lux @ (F1.6, AGC ON)

BW: 0.01Lux @ (F1.6, AGC ON)

Video compressionH.265/H.264/MJPEG
Camera SizeΦ180*301.5 mm
ConnectorMCBH2M
Working temperature-10℃ ~ 50℃
Working depth100 meter
Interface typeRJ45
Power supply48V
WindowOptical acrylic
Housing materialSS 304
Weight in air10KG (SS 316 )

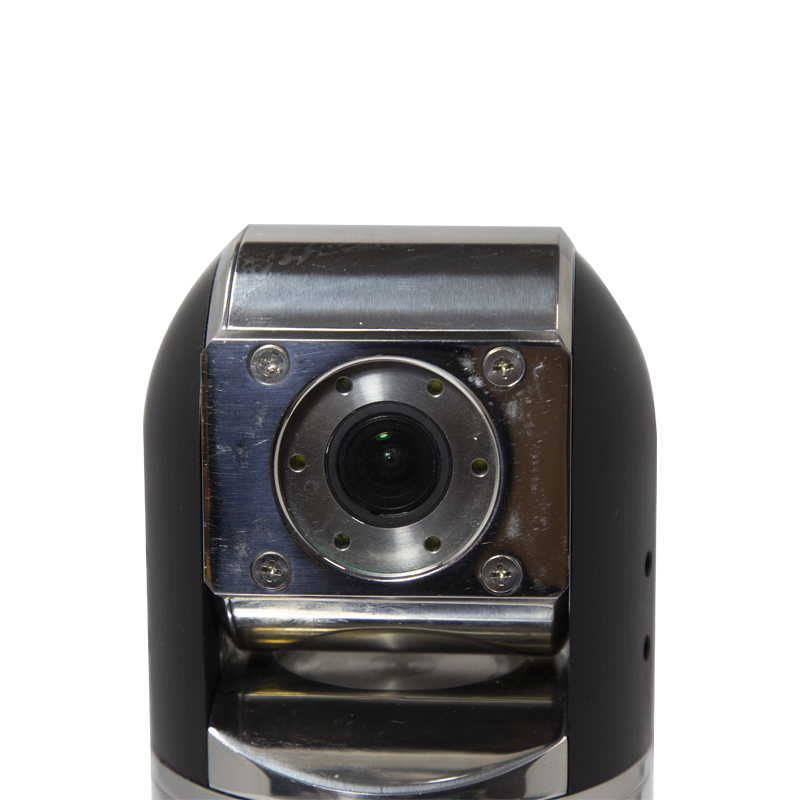

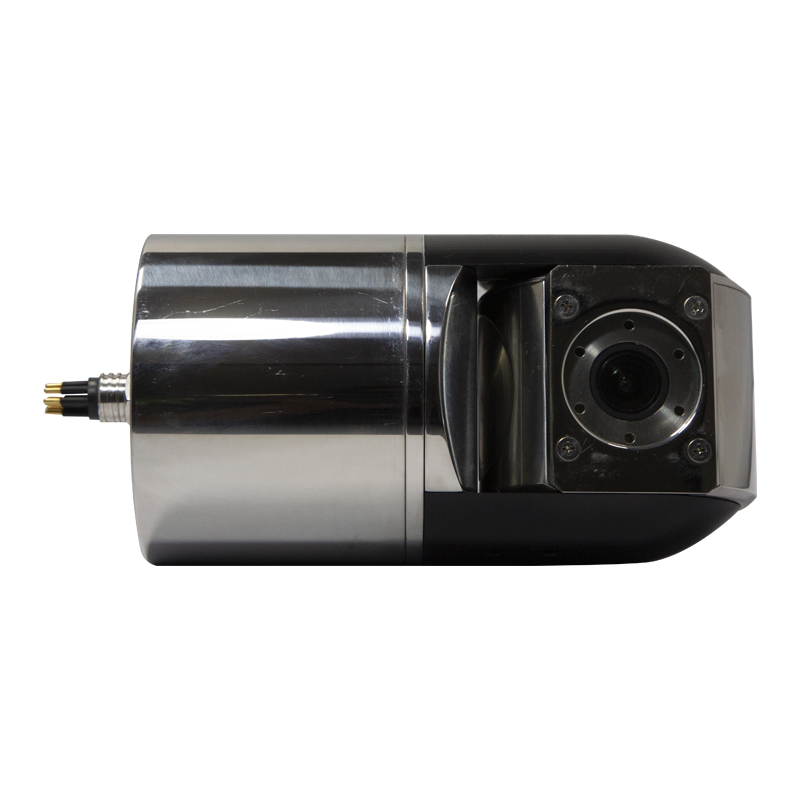

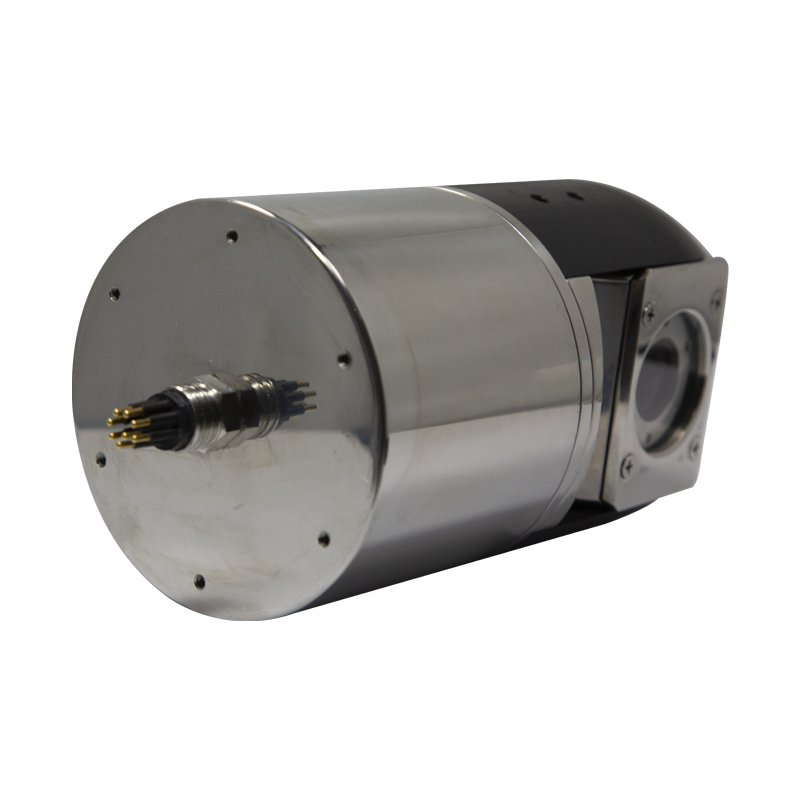

Product Show

4


2


6
