Surveillance Camera,Underwater Camera with Ultra HD 145-degree Angle 4K DPI

Image sensor

1/1.7" Progressive Scan CMOS

Chip

Hass Chip Hi3519V101

Electronic shutter

1/25s ~ 1/10000s

Minimum  illumination

0.0001Lux@F1.2

SIGNAL-NOISE RATIO

≥50dB (AGC OFF)

Day-night conversion mode

Photosensitive Detection / Video Detection / Time Detection

Wide dynamic range

≥80dB

Noise reduction

3D Digital Noise Reduction

Video compression standard

H.265+/H.265/H.264/MJPEG

H.265 encoding type

Main Profile

Video bit rate

32 Kbps~16Mbps

Audio Ccompression format

G.711a/ G.711u/G.726

Image settings

Adjustable brightness, contrast, saturation, sharpness, white balance;

AWB(auto white balance), AGC(automatic gain),

AE(automatic exposure control), AIC (auto iris correction);

Support for privacy zone occlusion;

OSD Stacked Plus;

Image Rotation: normal 90°/270° automatic,

manual or automatic color to black and other switching methods

Maximum image size

4000×3000

Video resolution

Main Stream 4000×3000/4096×2160 4K/3840×2160 4K/2592×1944

Secondary Stream 720P(1280×720)/D1(704×576)/VGA(640×480)

Video frame rate

50Hz:

15fps (4000×3000, 4096×2160), 25fps (3840×2160, 1920×1080, 1280×720)

60Hz:

15fps (4000×3000, 4096×2160), 30fps (3840×2160, 1920×1080, 1280×720)

Character overlay

Support

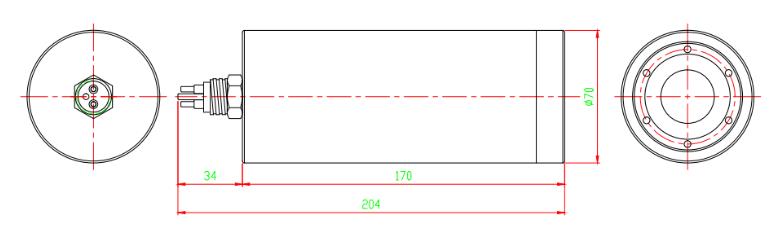

Dimensions

70mm(D)x170mm(L) Excluding Connector

View angel

145 degree
