Underwater Surveillance Camera, Subsea Camera with Plastic Casing And 5X Zoom

1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Minimum Illumination 0.00001Lux@F1.2

4. IP camera, ONVIF Compliant

5. Power And Data Transfer By 2 Wires Up To 600m

  • GLF-UDC-LI200-POM

  • Granfoo

  • GLF-UDC-LI200-POM

Availability:
Quantity:
Inquire

This is a Underwater Analog Camera, the camera DN is 60mm, shell material is POM, measuring depth is 300meters , can be customized 600meters.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

4.jpg修改


1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Minimum Illumination 0.00001Lux@F1.2

4. IP camera, ONVIF Compliant

5. Power And Data Transfer By 2 Wires Up To 600m


Model No.GLF-UDC-LI200-POM
Image sensorSONY 1/1.8’’ CCD
Resolution2 Megapixel
Sensitivity0.00001Lux@F1.4 (Color mode); 0.00001Lux@F1.2 (Monochrome）
SIGNAL-NOISE RATIO≥50dB（AGC OFF）
Video compressionH.264 Main Profile / M-JPEG
Voltage48VDC
Network protocolTCP/IP, HTTP NTP, IGMP, DHCP, UDPSMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
View angel90 degree
Lens3.6mm (Optional 3.2mm/ 6mm/ 8mm)
ConnectorMCBH2MSS
Depth rating300m (Optional MAX 6000m)
Storage temperature-30-60℃
Operating temperature-20-50℃
Operating humidityRelative Humidity Below 90%
Standard housingSS316 (Optional: Ti6AL4V or AL6061-T6) POM
WindowAcrylic 300m (Optional Sapphire 6000m )

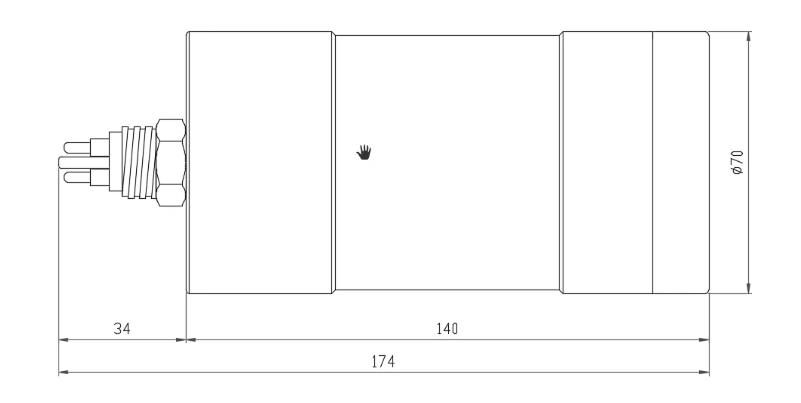

Dimensions70mm(D)x140mm(L) Excluding Connector






pom


Packing List

1. Camera

2. 10m cable


Product Show

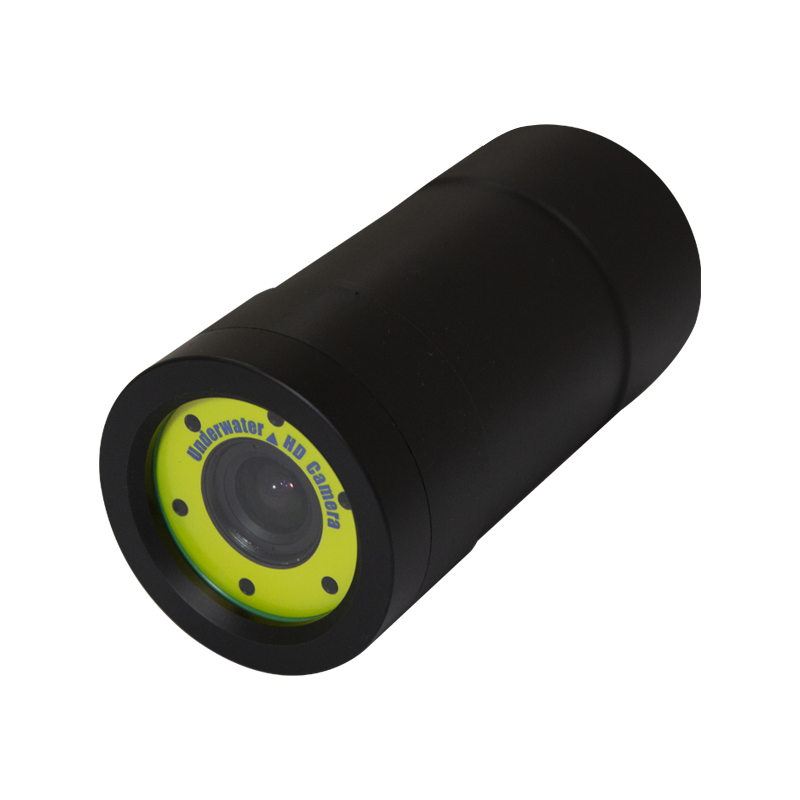

4.jpg修改

Underwater Camera

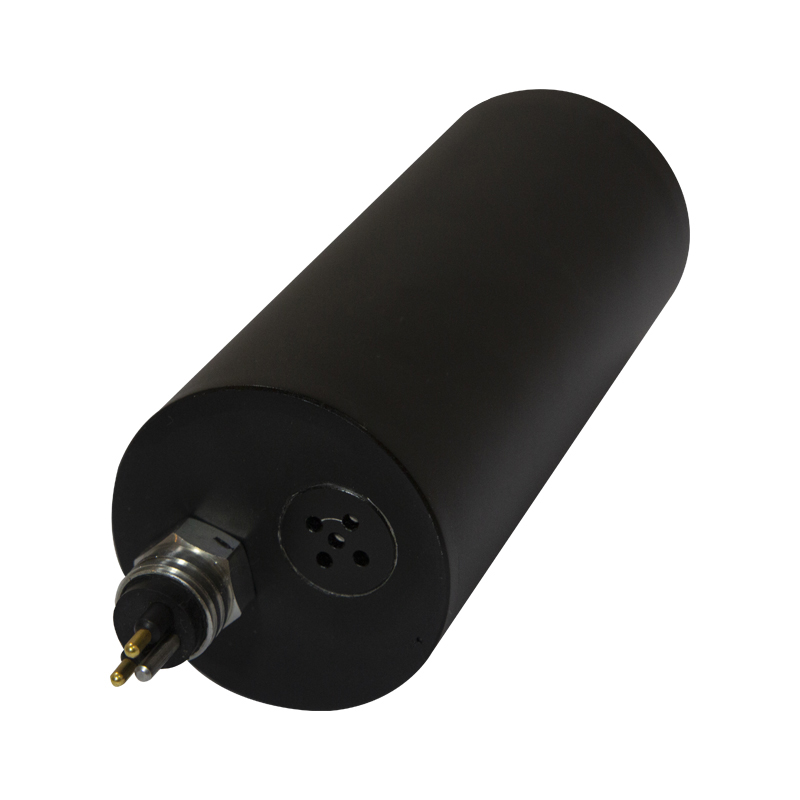

6.jpg修改

Wiring

3

Lens
