A 90-degree Angle Low-illuminance Underwater Camera Surveillance with Depth&Temp Sensor And Underwater Light And 5x Zoom

Share to:

A 90-degree Angle Low-illuminance Underwater Camera Surveillance with Depth&Temp Sensor And Underwater Light And 5x Zoom

1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Standard H.264 video compression technology, accurate and stable code stream control

4. IP camera, ONVIF Compliant

5. Open SDK, support multiple network protocols and networking methods

6. Customized products according to different situations

Model:
GLF-UDC-LI200L-DT5X
Brand:
Granfoo
Code:
GLF-UDC-LI200L-DT5X

Availability:

Quantity:



Inquire

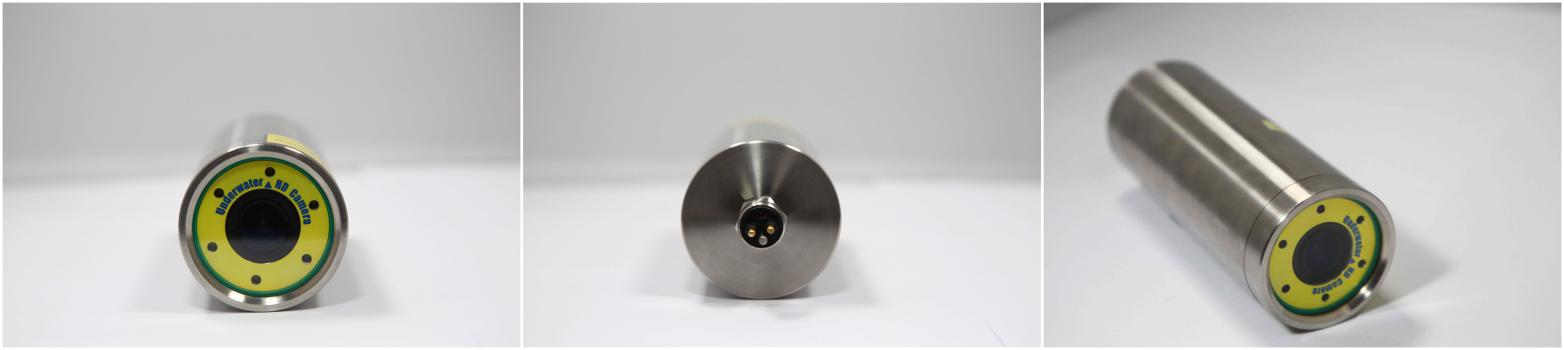

This is a Underwater Analog Camera, the camera DN is 65mm, shell material is Stainless steel 304, measuring depth is 300meters , can be customized 6000meters.

We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.

If you or your company are interested in this cameras please contact us, we shall very appreciation.

4.jpg修改

Model No.	GLF-UDC-LI200L-DT5X
Image sensor	1/2.9" CMOS sensor
Resolution	2 Megapixel
Signal type	Network
Sensitivity	0.1Lux@F1.2 (Color mode); <a href="mailto:0.01Lux@F1.2" \h"="">0.01Lux@F1.2 (Monochrome）
Video processing	H.265+/H.265X video coding, support dual stream, AVI format; support stream 0.1M~8Mpbs adjustable; support frame rate 1~30 frames/sec adjustable
Image output	Main stream: 19201080@20fps, 1280720@25fps; substream: 704*576@25fps
Network Interface	1* RJ45 Ethernet interface, 10/100M adaptive; supports network protocols such as RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
Day and night mode	Support IR-CUT
Compatibility	Supports ONVIF platform access such as Haikang, Xiongmai CMS, and Tianshitong UC2, and supports mainstream NVR ONVIF protocol access.
Lens	Standard 2.8mm-12mm automatic zoom lens
Zoom	Optical zoom 5x
Function	Support front-end storage playback/download; Support unified system remote monitoring software, platform and other system applications; Provide a complete SDK development kit
Housing material	Stainless steel 304 ( aluminum alloy / titanium alloy / industrial plastic optional)
Waterproof level	0-300 meters (max depth can be customized to 6000m)
Power supply	48VDC (customized can be 24V)
Working temperature	-20℃～+40℃
Storage temperature	-30℃ ~ 60℃

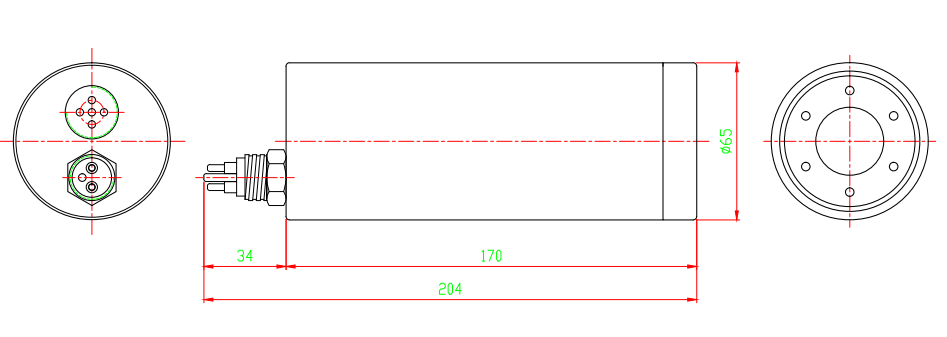

Dimension	Φ65*170mm (excluding 34mm connector)
Weight in the air	1.5 kg
View angel	90 degree
Internal light	6PCS*1Watt
Connector	MCBH2MSS

Model No.	Depth and Temperature Senso
Measuring medium	Liquid or Gas(compatible with contact material)
Overall material	Diaphragm---316L Stainless Steel(contact with the medium)
Pressure range	0~6Mpa
Pressure method	Gauge Pressure, Absolute Pressure, Negative Pressure
Output signal	RS485 (standard Modbus-RTU protocol)
Supply voltage	12~36VDC
Working conditions	medium temperature -20~85℃
Ambient temperature	-20~85℃
Ambient humidity	0%~95%RH (no condensation, no condensation)
Temperature compensation	-10~70℃
Accuracy level	0.5%FS(range ≥10KPa)
Anti-seismic performance	10g (20...2000HZ)
Overload capacity	200%
Response frequency	Analog Signal Output≤500HZ Digital Signal Output≤5HZ
Stability performance	±0.1% FS/year
Temperature drift	±0.1% FS/year
Maximum power	≤0.02Us(W)
