A 90-degree Angle Low-illuminance Underwater Camera Surveillance with Underwater Light

1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Minimum Illumination 0.00001Lux@F1.2

4. IP camera, ONVIF Compliant

5. Power And Data Transfer By 2 Wires Up To 6000m

  • GLF-UDC-LI200L

  • Granfoo

  • GLF-UDC-LI200L

Availability:
Quantity:
Inquire

This is a Subsea Camera, the camera DN is 65mm, shell material is SS316, measuring depth is 300meters , can be customized 6000meters.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

6修改


1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Minimum Illumination 0.00001Lux@F1.2

4. IP camera, ONVIF Compliant

5. Power And Data Transfer By 2 Wires Up To 600m



Model No.

GLF-UDC-LI200L

Image sensor

SONY 1/1.8’’ CCD

Resolution

2 Megapixel

Sensitivity

0.00001Lux@F1.4 (Color mode); 0.00001Lux@F1.2 (Monochrome）

SIGNAL-NOISE RATIO

≥50dB（AGC OFF）

Video compression

H.264 Main Profile  / M-JPEG

Voltage

48VDC

Network protocol

TCP/IP, HTTP NTP, IGMP, DHCP, UDPSMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P

Internal light

6PCS*1Watt

View angel

90 degree

Lens

3.6mm (Optional 3.2mm/ 6mm/ 8mm)

Connector

MCBH2MSS

Depth rating

300m (Optional MAX 6000m)

Storage temperature

-30℃ ~ 60℃

Operating temperature

-20℃ ~ 50℃

Operating humidity

Relative Humidity Below 90%

Standard housing

SS316 (Optional: Ti6AL4V or AL6061-T6)

Window

Acrylic 300m (Optional Sapphire 6000m )

Dimensions

65mm(D)x170mm(L) Excluding Connector

Weight in the air

1.5KG

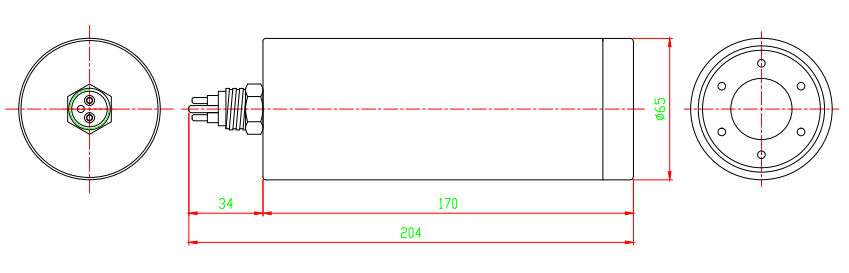

LI200L-5X

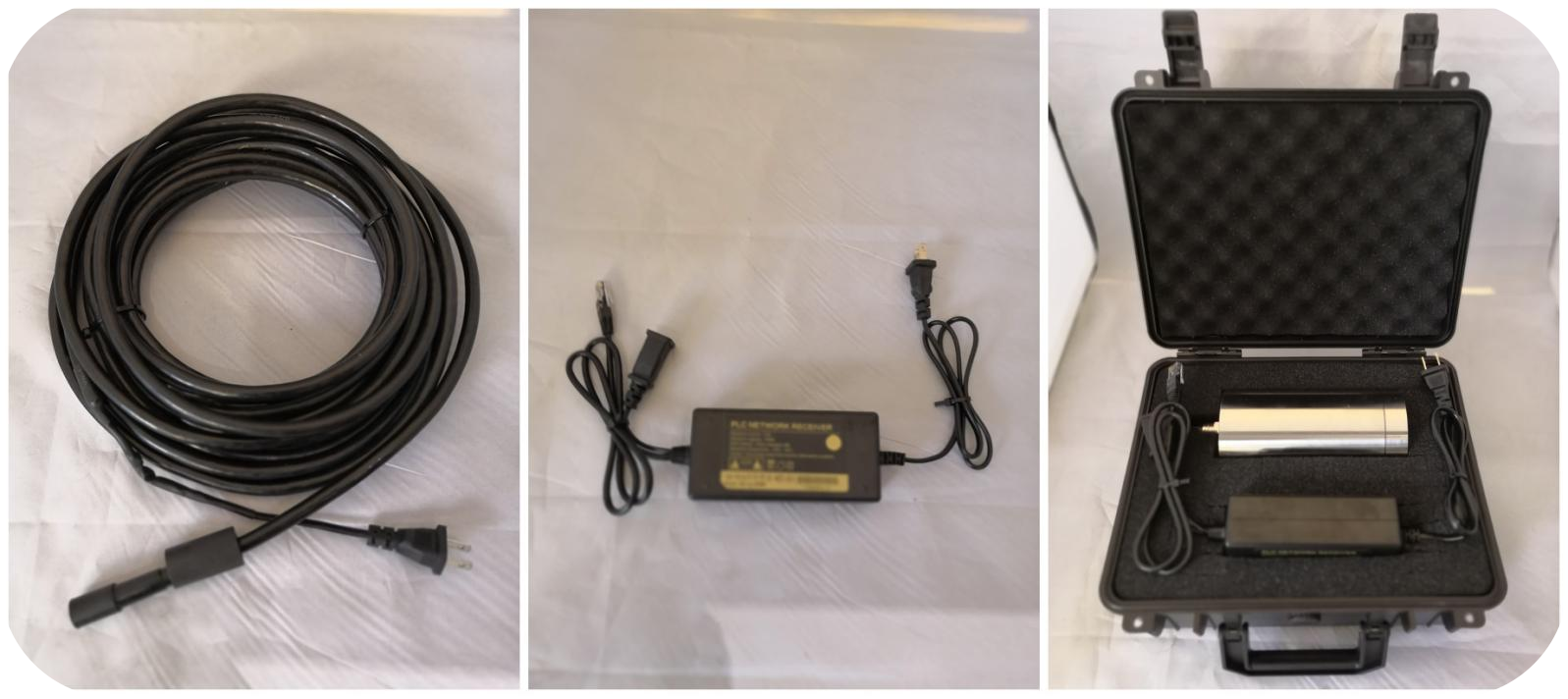

Packing List

1. Camera

2. 10m cable

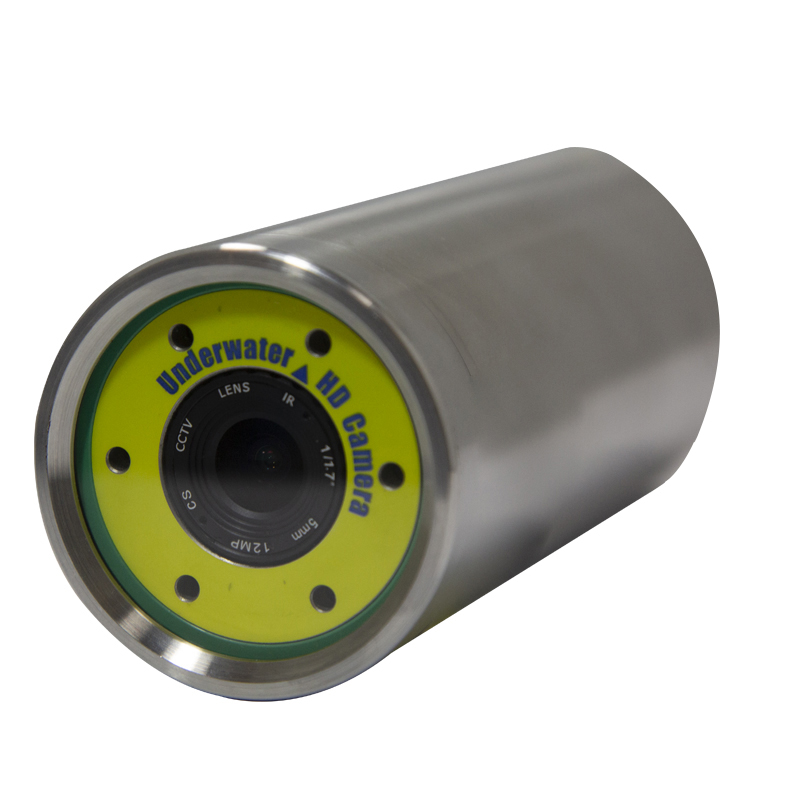

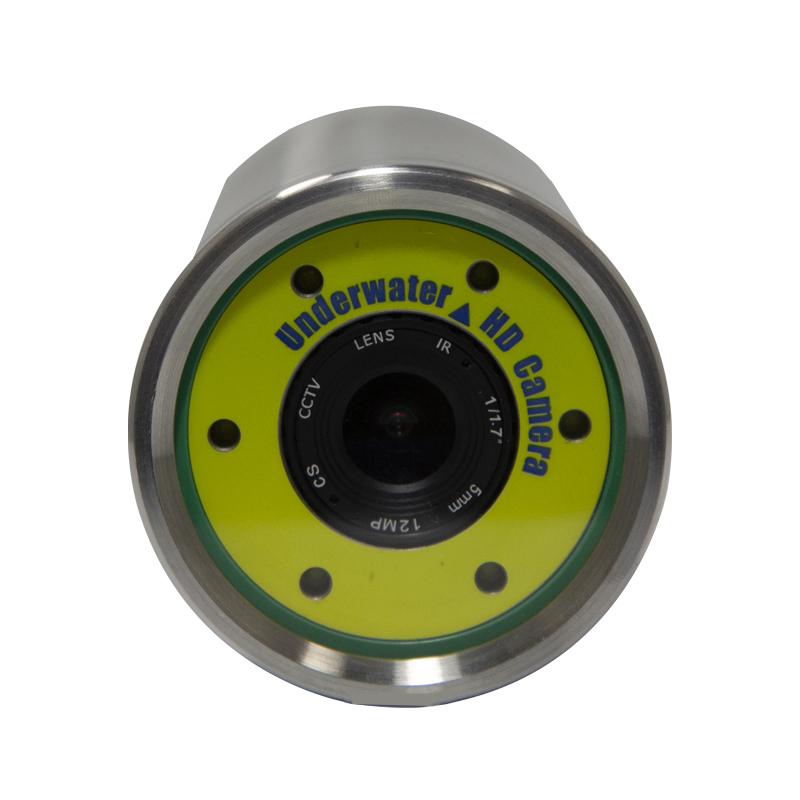

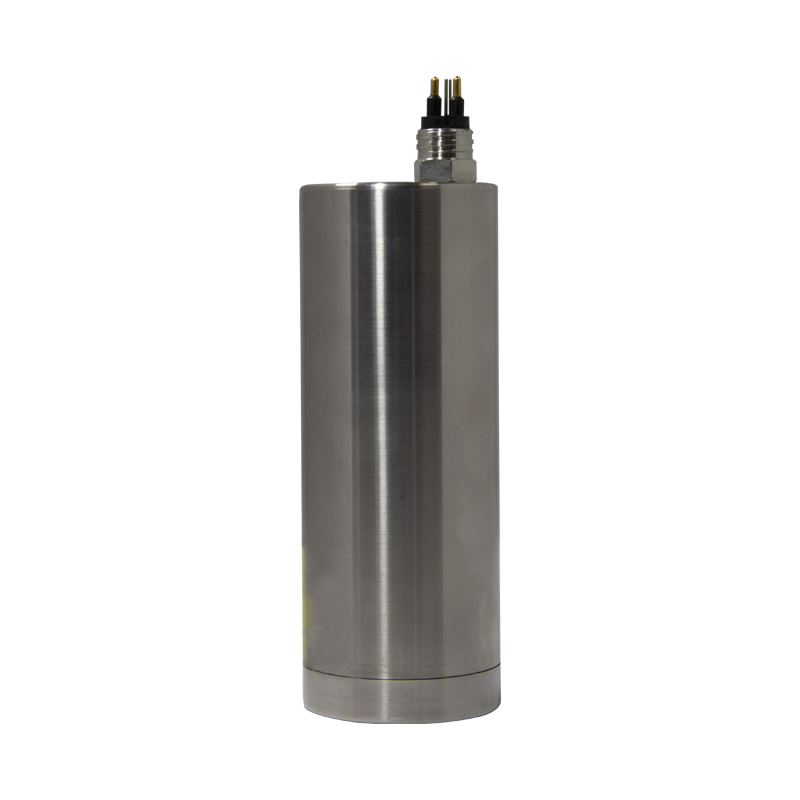

Product Show

6修改
5修改


1

3
