Surveillance Camera, Underwater Digital Camera with 18x Zoom Capability And 90-degree Angle

1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. 18X Zoom

4. Minimum Illumination 0.00001Lux@F1.2

5. IP camera, ONVIF Compliant

6. Power And Data Transfer By 2 Wires Up To 600m

  • GLF-UDC-SZ18X

  • Granfoo

  • GLF-UDC-SZ18X

Availability:
Quantity:
Inquire

This is a underwater HD camera, the camera DN is 72mm, optical zoom is 18X. It suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

5


1.Sensor ：2.0M

2.H.265X/H.264+ compression

3.Smartsens high performance CMOS sensor

4.Optical zoom 18X, F1.8 to F3.9;

5.Auto gather, auto exposal, auto white balance etc...

6.Support auto iris, electronic shutter, IR-CUT filter switch, apply for different environments




Model

GLF-UDC-SZ18X

Sensor

1/2.9" CMOS

Video standard

PAL/NTSC

FPS

50Hz:25fps(1920×1080)

60Hz:30fps(1920×1080) (18fps)

Min. illumination

Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6

Electronic shutter

1/1 ~ 1/30000s

Day/Night

Support IR-CUT

Scan system

Row by row

Synchronous

Internal synchronous

Video output

Digital signal (Y/Cb/Cr 4:2:2 via LVDS)

S/N Ratio

>50dB

Iris control

Auto

Backlight compensation

Open/Close

White balance

Auto

Slow shutter

Support

Slow exposal

Support

Exposal mode

Auto

Privacy masking

Support

WDR

Support

Gain setting

Support

Menu

Flip / Mirror

Gain sontrol

Auto

Sharpness adjustment

Support

Focusing

Auto/Manual/One-time auto-focus

Noise reduction level

0/1/2/3/4/5

Zoom speed

4S

Focus control

Manual/Auto

Lens initialization

Built-in

Optical zoom

18X, 5.85MM-93.6MM(F1.8 to F3.9)

Min. focus distance

100mm ~1000mm (Close focus ~ Far focus)

Digital zoom

N/A

Horizontal angle of view level

55.4~2.90

Network

1*RJ45,10/100M,support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc...

Function

Support WEB config, OSD, real-time video transfer, record and pop up by motion detect and alarm I/O, download/playback, JPEG snapshot, CMS, MYEYE and SDK for second development

Storage environment

-20°C ~+70°C/20﹪to 95﹪RH

Working environment

-10°C ~ +60°C/20﹪ to 80﹪RH

Power supply

DC 9V-12V(suggest 12V)

Power consumption

MAX: 6W

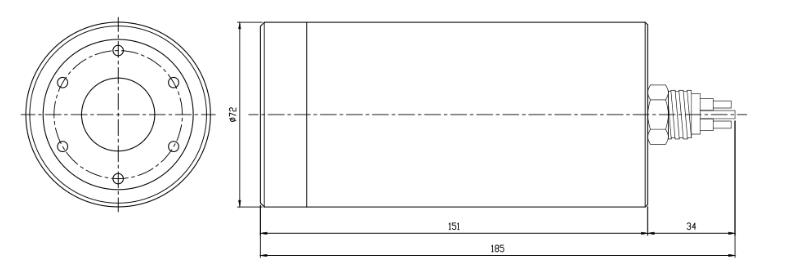

Sizes

72mm(D)x151mm(L) excluding connector

Connecto

MCBH-2-M SS






GLF-UDC-SZ18X

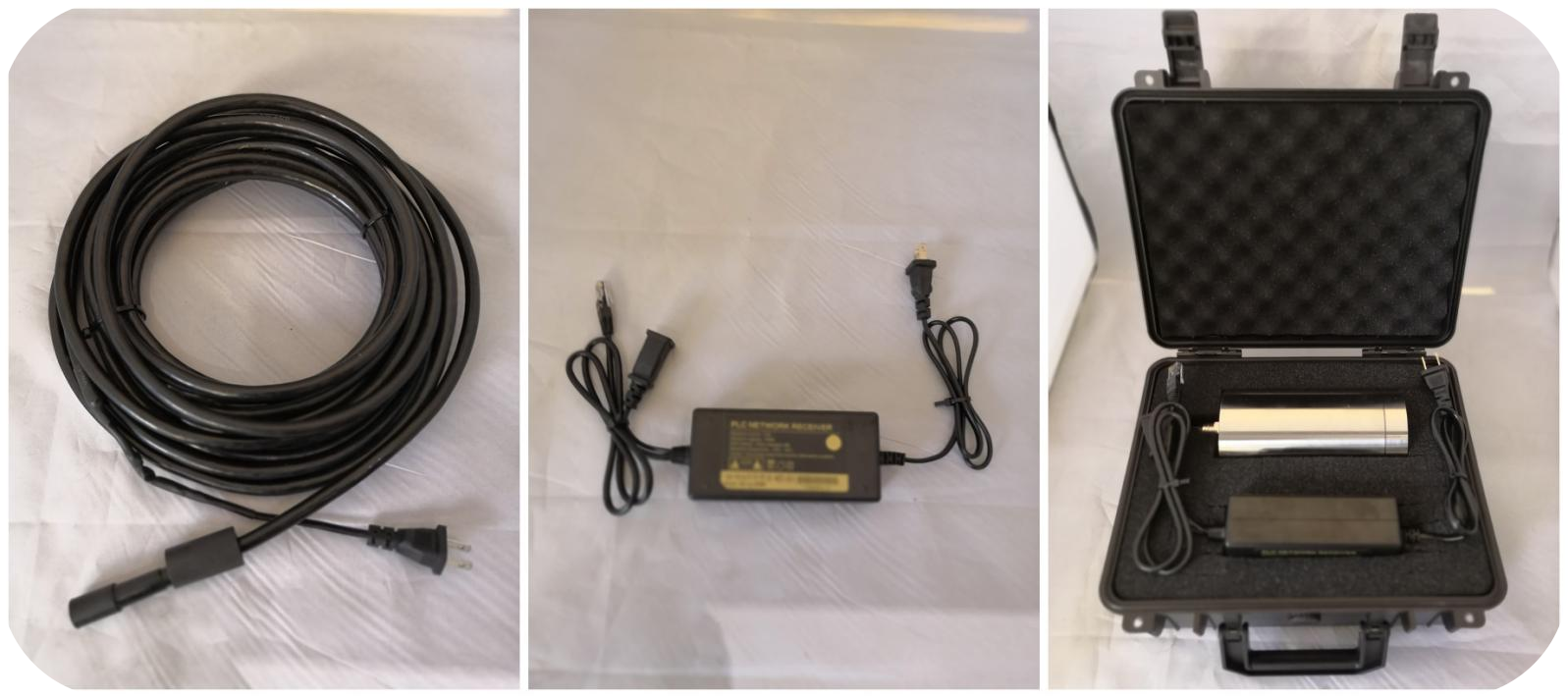

Packing List

1. Camera

2. 10m cable

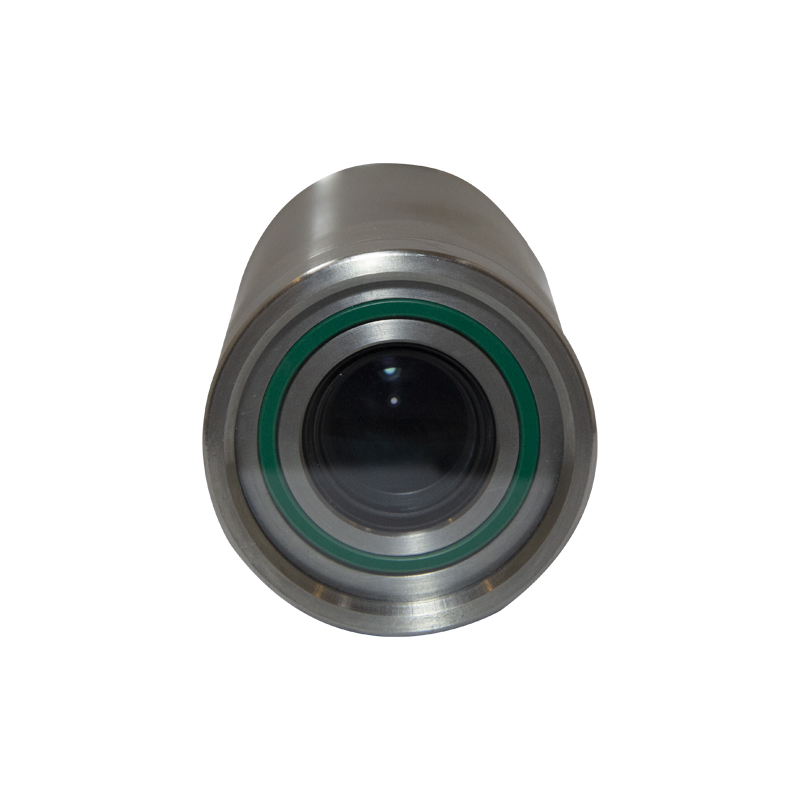

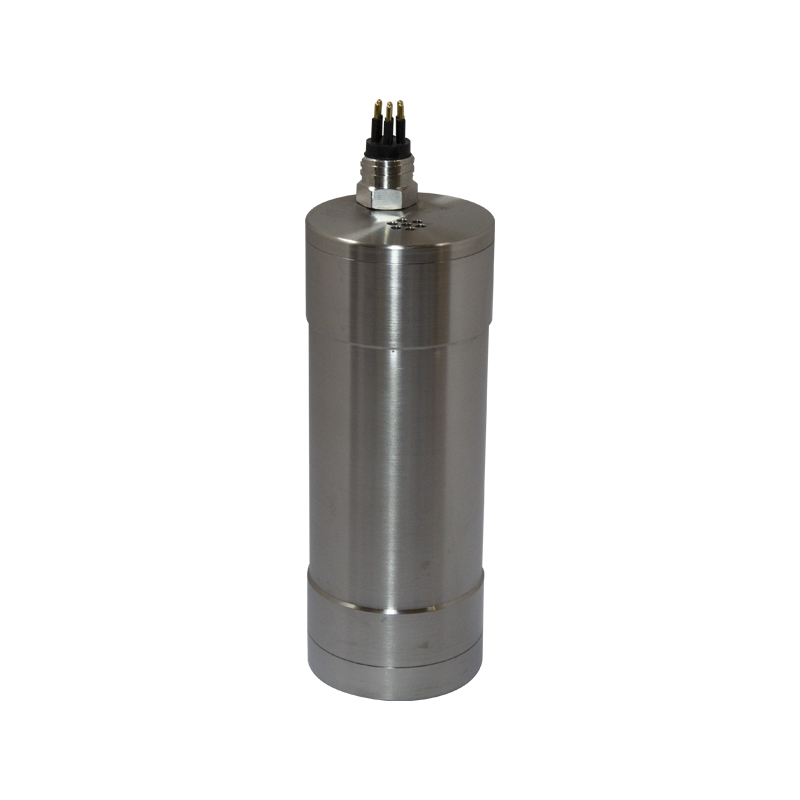

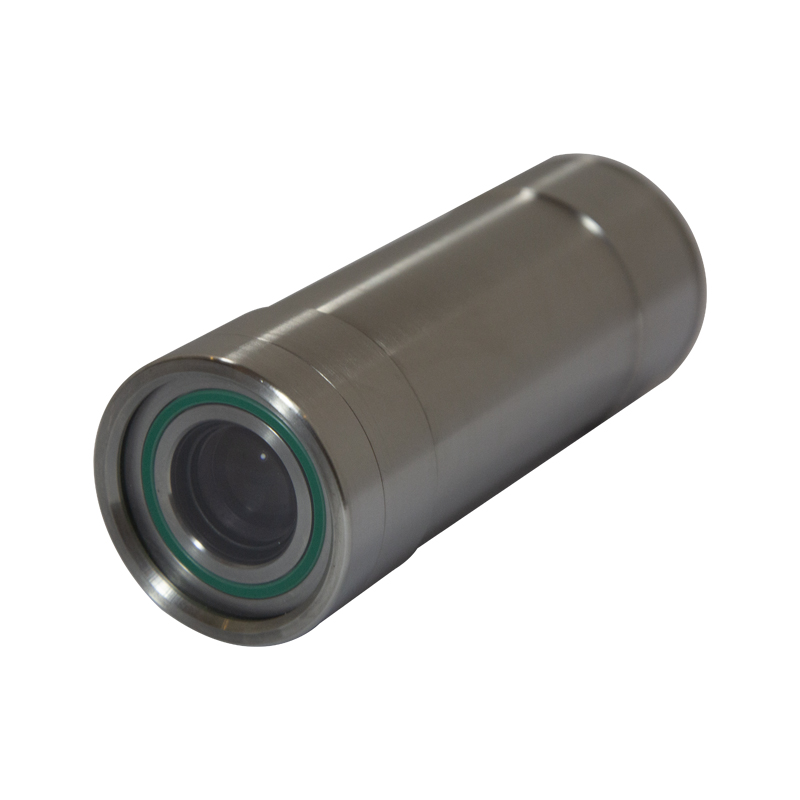

Product Show

6


3


1



3
