1. Shell Compressive Standard Depth 300m
2. High Resolution 2 Mega pixel
3. 10X Zoom
4. Minimum Illumination 0.001Lux@F1.2
5. IP camera, ONVIF Compliant
6. Power And Data Transfer By 2 Wires Up To 600m
GLF-UDC-SZ10X
Granfoo
GLF-UDC-SZ10X
Availability: | |
---|---|
Quantity: | |

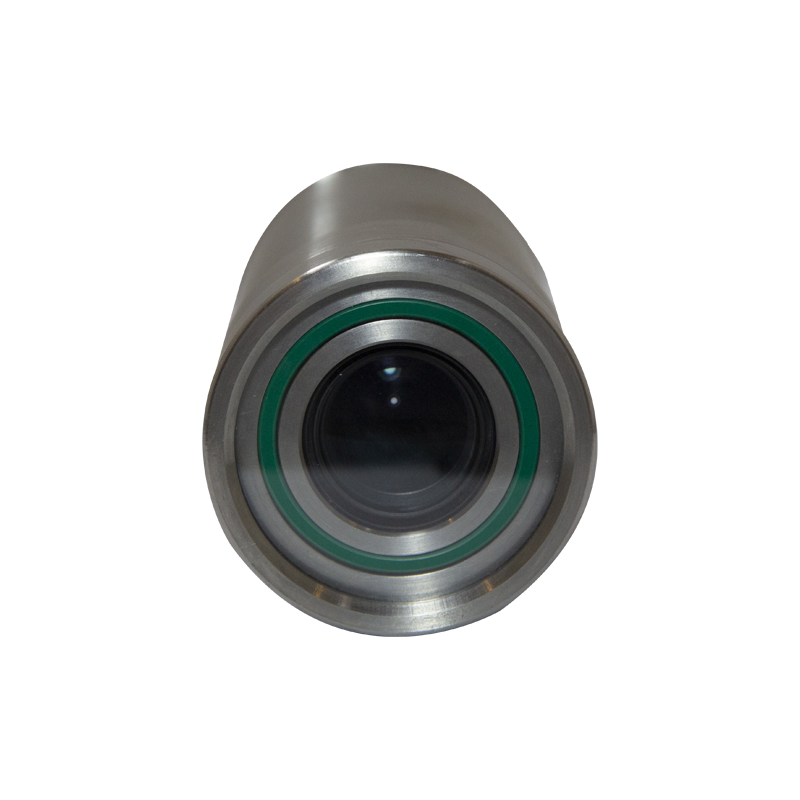

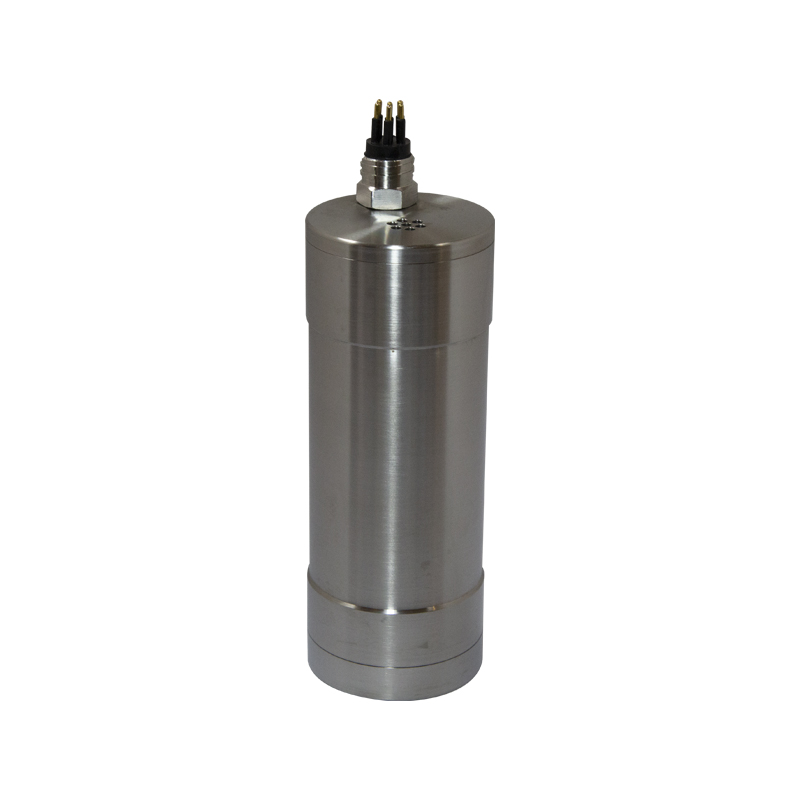

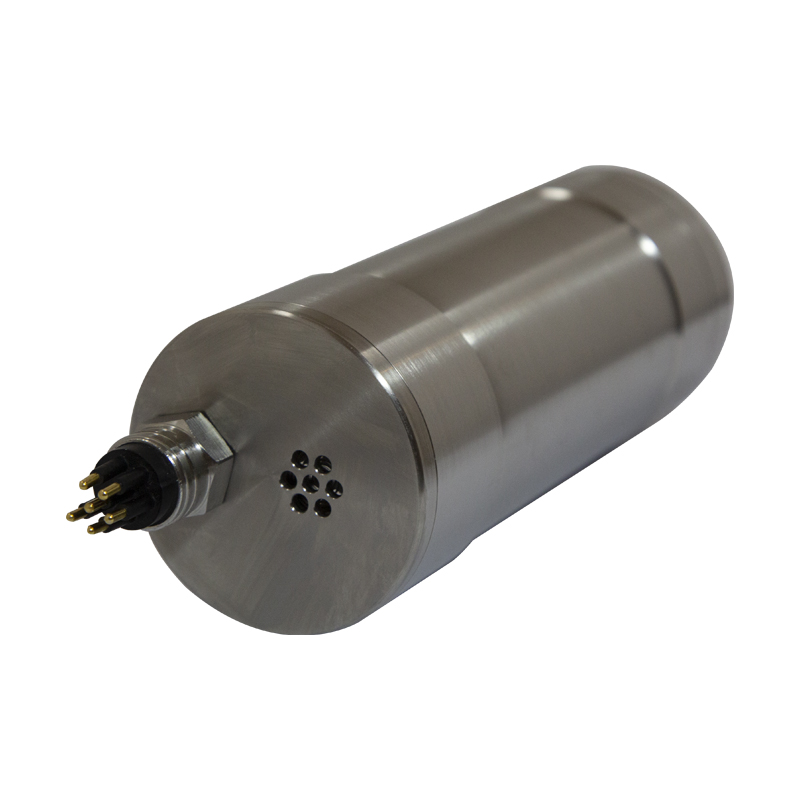

This is a underwater HD camera, optical zoom is 10X, measuring depth is 300meters, can be customized 6000meters. It suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research. We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand. If you or your company are interested in this cameras please contact us, we shall very appreciation. |
This is a underwater HD camera, optical zoom is 10X, measuring depth is 300meters, can be customized 6000meters. It suitable for mounting on diving helmets, fishing gear, tow fish or as a stand-alone camera for marine research. We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand. If you or your company are interested in this cameras please contact us, we shall very appreciation. |
1. Shell Compressive Standard Depth 300m
2. High Resolution 2 Mega pixel
3. 10X Zoom
4. Minimum Illumination 0.001Lux@F1.2
5. IP camera, ONVIF Compliant
6. Power And Data Transfer By 2 Wires Up To 600m
1. Shell Compressive Standard Depth 300m
2. High Resolution 2 Mega pixel
3. 10X Zoom
4. Minimum Illumination 0.001Lux@F1.2
5. IP camera, ONVIF Compliant
6. Power And Data Transfer By 2 Wires Up To 600m
Model | GLF-UDC-SZ10X |
Signal type | Network |
Pixel | 2 mega (1080P Wireless card 10x zoom H265) Optional: 3 mega (3 MP Wireless card 10x zoom) 5 mega (5 MP Wireless card 10x zoom) |
Sensor | HI3516EV100+1/2.8" Sony 307 sensor Optional: 3 mega (HI3516EV200+1/2.7" SC 3235 sensor) 5 mega (HI3516EV300+1/2 8" Sony 335 sensor) |
Video standard | PAL/NTSC |
Video processing | H265/H264 video coding, support dual stream, AVI format, support code stream 0.1M-6Mpbs adjustable, support frame rate adjustable |
Lens | 10x optical zoom, standard 4.9~47 mm automatic zoom lens |
Min. illumination | Color: 0.01Lux@F1.2, B/W: 0.001Lux@F1.2 |
Video output | 2 mega H265/H264 1080P (1920*1080P) Optional: 3 mega H265/H264 (2048*1536) 5 mega H265/H264 (2592*1944) |
Network connect method | Support wireless network connection, one-click WPS function, hot spot direct connection function |
Mobile computer direct connection | Support self-generated AP hotspot, wireless connection, no need for wireless router |
Hardware function | Support one-button reset function, support AP mode for point-to-point viewing |
Audio function | Audio input and output function |
Wireless wifi function | Support, no wifi module |
IF card | Support, Card recording (up to 128G) |
PT | 1 RS485 interface, support PELCO (P) and other PTZ lens control protocols |
ONVIF RTSP protocol | Support |
Network port function | Support RJ45 network cable connection |
Signal interface | 1 pcs photoresistor interface, 1 pcs IR-CUT drive interface, supporting the linkage of the photoresistor input signal and IR-CUT infrared lamp |
Lightning protection | Power supply lightning protection, meet the national standards GB/T17626.5, international standard IEC61000-4-5. |
Business functions | Support WEB configuration, support OSD, support real-time video transmission, support motion detection alarm center reminder and screen pop-up linkage, support JPEG capture, support unified client remote monitoring software |
Mobile phone monitoring | Support mobile phone monitoring (Android / Iphone) mobile phone software name camhi |
Power | DC 12V |
Dimension (camera mould) | 38*38 mm |
Description | Need to cooperate with mobile phone client, support WPS technology to connect to watch video with one click, bid farewell to the limitations and inconvenience of traditional "wired", enjoy the space and convenience of new technology "wireless" |
Star level | Because the illuminance is 0.0001 in the case of low light, it usually refers to the light source in the low light environment, which can display a much clearer image than the ordinary camera, and the night vision is clearer. |

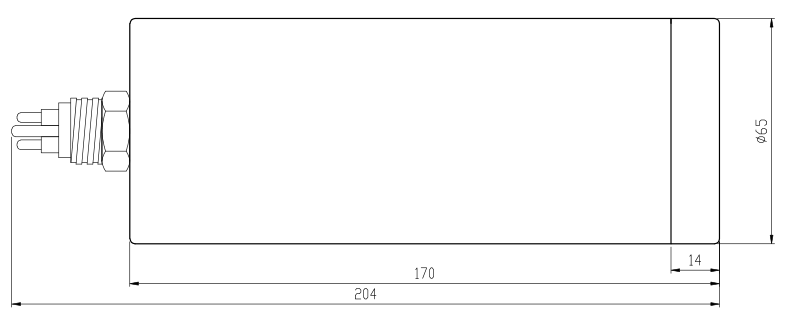

Sizes | 65mm(D)x170mm(L) excluding connector |
Connector | MCBH-2-M SS |
Storage environment | -20°C ~+70°C/20﹪to 95﹪RH |
Working environment | -10°C ~ +60°C/20﹪ to 80﹪RH |
Working deoth | 0-300 m (customized can be max to 6000 m) |
Model | GLF-UDC-SZ10X |
Signal type | Network |
Pixel | 2 mega (1080P Wireless card 10x zoom H265) Optional: 3 mega (3 MP Wireless card 10x zoom) 5 mega (5 MP Wireless card 10x zoom) |
Sensor | HI3516EV100+1/2.8" Sony 307 sensor Optional: 3 mega (HI3516EV200+1/2.7" SC 3235 sensor) 5 mega (HI3516EV300+1/2 8" Sony 335 sensor) |
Video standard | PAL/NTSC |
Video processing | H265/H264 video coding, support dual stream, AVI format, support code stream 0.1M-6Mpbs adjustable, support frame rate adjustable |
Lens | 10x optical zoom, standard 4.9~47 mm automatic zoom lens |
Min. illumination | Color: 0.01Lux@F1.2, B/W: 0.001Lux@F1.2 |
Video output | 2 mega H265/H264 1080P (1920*1080P) Optional: 3 mega H265/H264 (2048*1536) 5 mega H265/H264 (2592*1944) |
Network connect method | Support wireless network connection, one-click WPS function, hot spot direct connection function |
Mobile computer direct connection | Support self-generated AP hotspot, wireless connection, no need for wireless router |
Hardware function | Support one-button reset function, support AP mode for point-to-point viewing |
Audio function | Audio input and output function |
Wireless wifi function | Support, no wifi module |
IF card | Support, Card recording (up to 128G) |
PT | 1 RS485 interface, support PELCO (P) and other PTZ lens control protocols |
ONVIF RTSP protocol | Support |
Network port function | Support RJ45 network cable connection |
Signal interface | 1 pcs photoresistor interface, 1 pcs IR-CUT drive interface, supporting the linkage of the photoresistor input signal and IR-CUT infrared lamp |
Lightning protection | Power supply lightning protection, meet the national standards GB/T17626.5, international standard IEC61000-4-5. |
Business functions | Support WEB configuration, support OSD, support real-time video transmission, support motion detection alarm center reminder and screen pop-up linkage, support JPEG capture, support unified client remote monitoring software |
Mobile phone monitoring | Support mobile phone monitoring (Android / Iphone) mobile phone software name camhi |
Power | DC 12V |
Dimension (camera mould) | 38*38 mm |
Description | Need to cooperate with mobile phone client, support WPS technology to connect to watch video with one click, bid farewell to the limitations and inconvenience of traditional "wired", enjoy the space and convenience of new technology "wireless" |
Star level | Because the illuminance is 0.0001 in the case of low light, it usually refers to the light source in the low light environment, which can display a much clearer image than the ordinary camera, and the night vision is clearer. |
Sizes | 65mm(D)x170mm(L) excluding connector |
Connector | MCBH-2-M SS |
Storage environment | -20°C ~+70°C/20﹪to 95﹪RH |
Working environment | -10°C ~ +60°C/20﹪ to 80﹪RH |
Working deoth | 0-300 m (customized can be max to 6000 m) |
Packing List
1. Camera
2. 10m cable
Product Show
Packing List
1. Camera
2. 10m cable
Product Show
