Model | GLF-UDC-SZ20X |
Signal type | Network |
Pixel | 2 mega (1080P Wireless card 20x zoom H265) Optional: 5 mega (5 MP Wireless card 20x zoom H265) |
Sensor | HI3516EV100+1/2.8" Sony 307 sensor Optional: 5 mega (HI3516EV300+1/2 8" Sony 335 sensor) |
Video standard | PAL/NTSC |
Video processing | H265/H264 video coding, support dual stream, AVI format, support code stream 0.1M-6Mpbs adjustable, support frame rate adjustable |
Lens | 20x optical zoom, standard 4.9~96 mm zoom lens |
Min. illumination | Color: 0.001Lux@F1.2, B/W: 0.0001Lux@F1.2 |
Video output | 2 mega H265/H264 1080P (1920*1080P) Optional: 5 mega H265/H264 (2592*1944) |
Network connect method | Support wireless network connection, one-click WPS function, hot spot direct connection function |
Mobile computer direct connection | Support self-generated AP hotspot, wireless connection, no need for wireless router |
Hardware function | Support one-button reset function, support AP mode for point-to-point viewing |
Audio function | Audio input and output function |
Wireless wifi function | Support, no wifi module |
IF card | Support, Card recording (up to 128G) |
PT | 1 RS485 interface, support PELCO (P) and other PTZ lens control protocols |
ONVIF RTSP protocol | Support |
Network port function | Support RJ45 network cable connection |
Signal interface | 1 pcs photoresistor interface, 1 pcs IR-CUT drive interface, supporting the linkage of the photoresistor input signal and IR-CUT infrared lamp |
Lightning protection | Power supply lightning protection, meet the national standards GB/T17626.5, international standard IEC61000-4-5. |
Business functions | Support WEB configuration, support OSD, support real-time video transmission, support motion detection alarm center reminder and screen pop-up linkage, support JPEG capture, support unified client remote monitoring software |
Mobile phone monitoring | Support mobile phone monitoring (Android / Iphone) mobile phone software name camhi |
Power | DC 12V |
Dimension (camera mould) | 38*38 mm |
Description | Need to cooperate with mobile phone client, support WPS technology to connect to watch video with one click, bid farewell to the limitations and inconvenience of traditional "wired", enjoy the space and convenience of new technology "wireless" |
Star level | Because the illuminance is 0.0001 in the case of low light, it usually refers to the light source in the low light environment, which can display a much clearer image than the ordinary camera, and the night vision is clearer. |

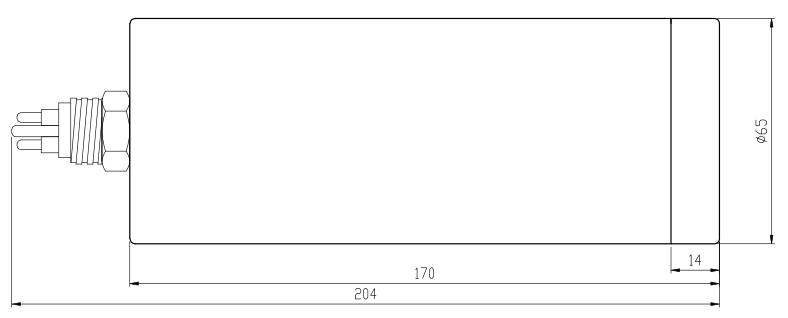

Sizes | 65mm(D)x170mm(L) excluding connector |
Connector | MCBH-2-M SS |
Storage environment | -20°C ~+70°C/20﹪to 95﹪RH |
Working environment | -10°C ~ +60°C/20﹪ to 80﹪RH |
Working deoth | 0-300 m (customized can be max to 6000 m) |
