Underwater Camera, Hand-held Underwater Surveillance Camera with Wiper And Light

* 1/2.8’’ FOUR IN ONE  1080P

* IMX291+NVP2441H

* Support coaxial high-definition transmission, image clear, delicate

* Support OSD menu

* Support UTC function

* Adaptive digital noise reduction 2D-DNR + 3D-DNR

* 6KV lightning protection

* Dimension Dia 108*210mm

  • GLF-UDC-S200L-W

  • Granfoo

  • GLF-UDC-S200L-W

Availability:
Quantity:
Inquire

This is a Underwater Analog Wiper Camera, the camera DN is 108mm, measuring depth is 300m, with automatic cleaning function in front of the lens.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

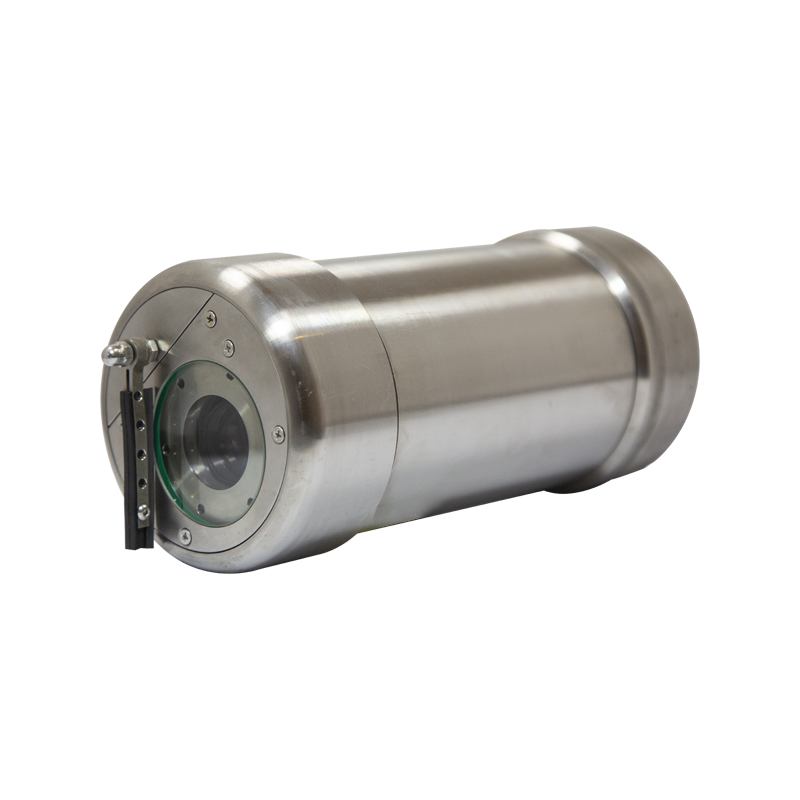

 3


• 1/2.8’’ FOUR IN ONE 1080P

• IMX291+NVP2441H

• Support coaxial high-definition transmission, image clear, delicate

• Support OSD menu

• Support UTC function

• Adaptive digital noise reduction 2D-DNR + 3D-DNR

• 6KV lightning protection

• Dimension Dia 108*210mm


Model No.

GLF-UDC-S200L-W

Image sensor

1/2.8’’ SONY IMX291+NVP2441H

System standard

PAL / NTSC

Resolution

1920(H)*1080(V)

Sensitivity

0.01LUX/F1.2

Horizontal definition

Coaxial HD 200w Pixel 1080p, Analog: 2000TVL

Day-night mode

External control (default) Auto / color / black and white

Frame rate

1080P@25fps / 1080P@30fps

Synchronization mode

Internal synchronization

Shutter

AUTO /1/50~1/50000s

Signal-Noise Ratio

＞46dB

Video output

AHD/TVI/CVI/CVBS Can be switched

Connector

MCBH4M

LED light

6 pcs* 1watt

Working temperature

-20°~ 60°

Working humidity

Relative humidity below 90%

Power supply

DC12V (±10%）

Working depth

0-300M (customized)

Dimension

108mm(D)x210mm(L) Excluding Connector

Housing material

304 Stainless steel /Titanium

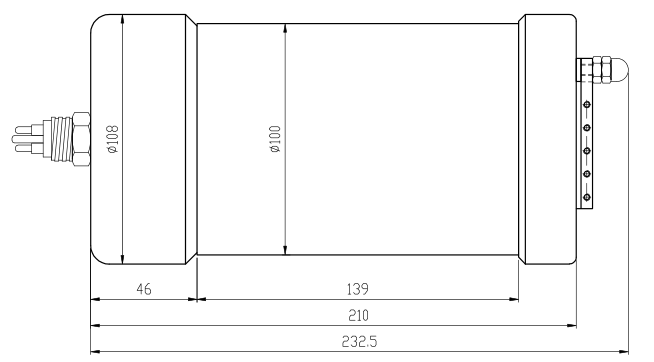

s200l1


Packing

1. 1 pcs camera

2. 10m cable


Product  Show

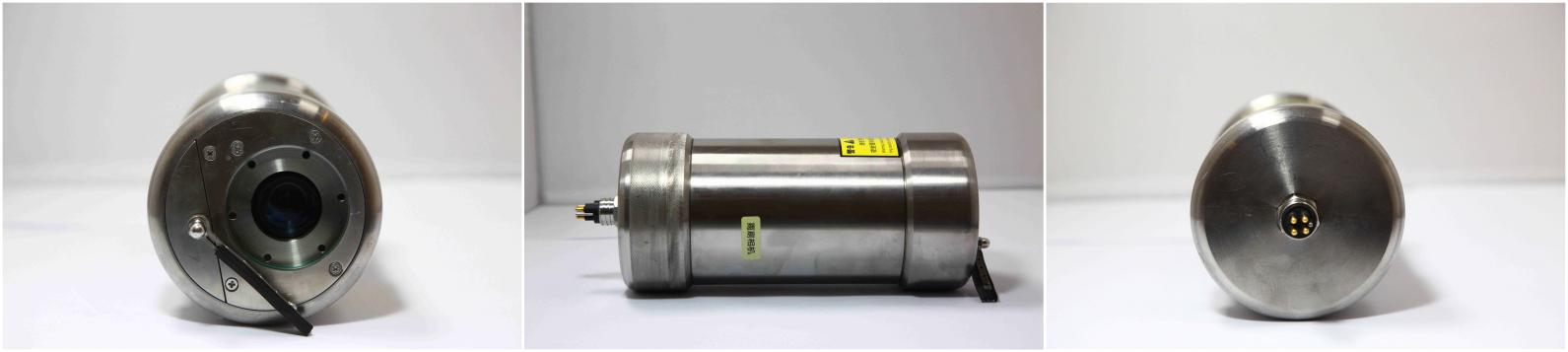

s200l
