Underwater Camera, Lens with Wiper 4K DPI Underwater Surveillance Camera with Wiper And Light

1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Minimum Illumination 0.00001Lux@F1.2

4. IP camera, ONVIF Compliant

5. Power And Data Transfer By 2 Wires Up To 600m .

  • GLF-UDC-LI200L-W

  • Granfoo

  • GLF-UDC-LI200L-W

Availability:
Quantity:

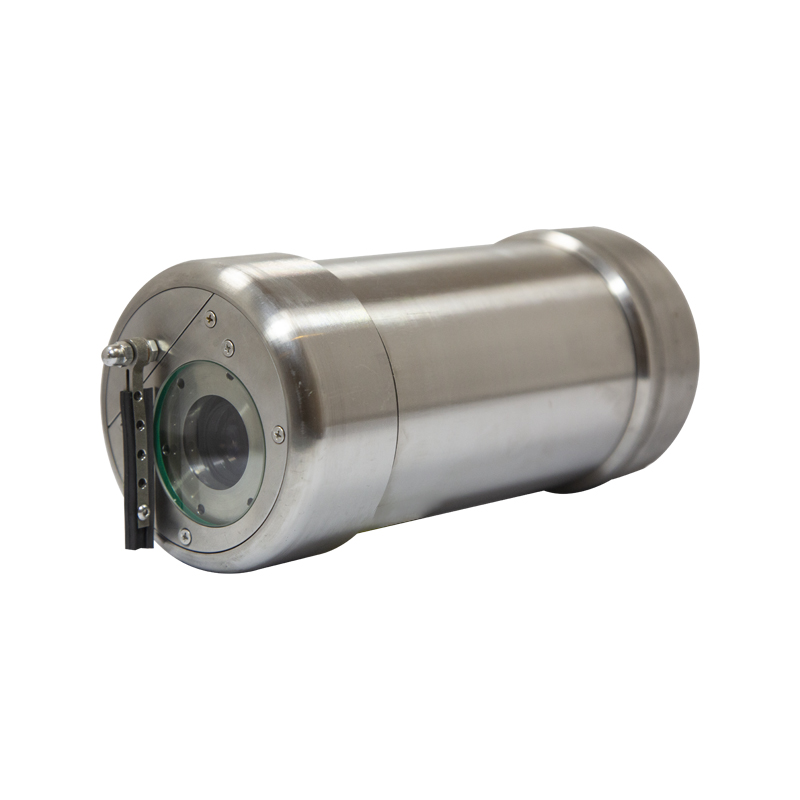

This is a Underwater Analog Wiper Camera, the camera DN is 108mm, measuring depth is 300m, with automatic cleaning function in front of the lens.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

3


1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Minimum Illumination 0.00001Lux@F1.2

4. IP camera, ONVIF Compliant

5. Power And Data Transfer By 2 Wires Up To 600m


Model No.

GLF-UDC-LI200L-W

Image sensor

SONY 1/1.8’’ CCD

Resolution

2 Megapixel

Sensitivity

0.00001Lux@F1.4 (Color mode); 0.00001Lux@F1.2 (Monochrome)

SIGNAL-NOISE RATIO

≥50dB(AGC OFF)

Video compression

H.264 Main Profile  / M-JPEG

Voltage

48VDC

Network protocol

TCP/IP, HTTP NTP, IGMP, DHCP, UDPSMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P

Internal light

6PCS*1Watt

View angel

90 degree

Lens

3.6mm (Optional 3.2mm/ 6mm/ 8mm)

Connector

MCBH2MSS

Depth rating

300m (Optional MAX 6000m)

Storage temperature

-30-60℃

Operating temperature

-20-50℃

Operating humidity

Relative Humidity Below 90%

Standard housing

SS304 (Optional: Ti6AL4V or AL6061-T6)

Window

Acrylic 300m (Optional Sapphire 6000m )

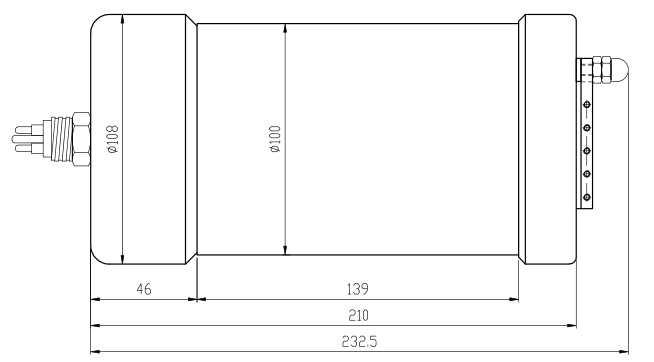

Dimensions

108mm(D)x210mm(L) Excluding Connector




s200l1


Packing List

1. Camera

2. 10m cable


Product Show

s200l
