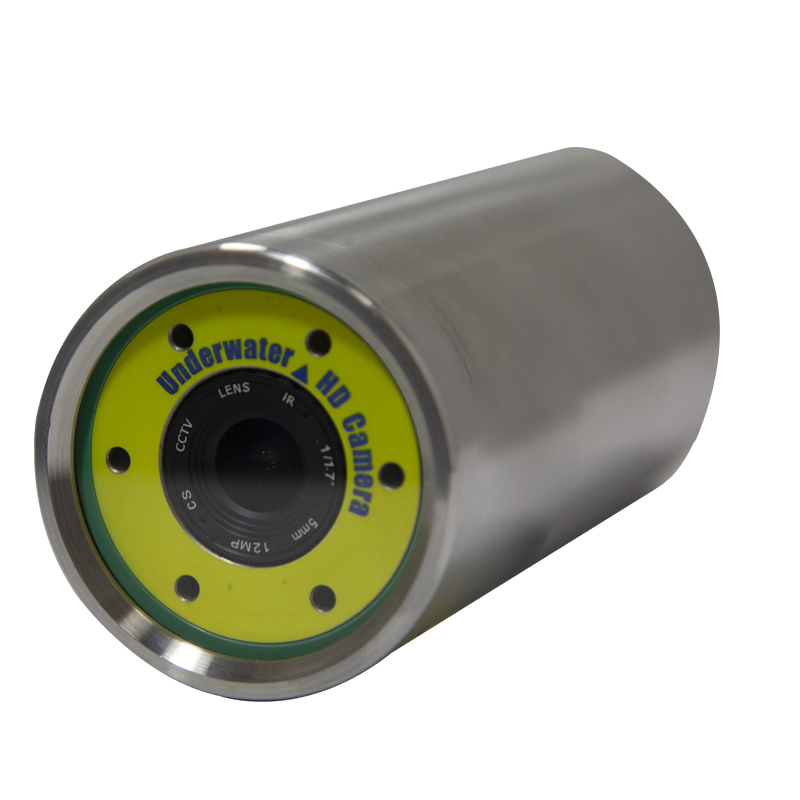

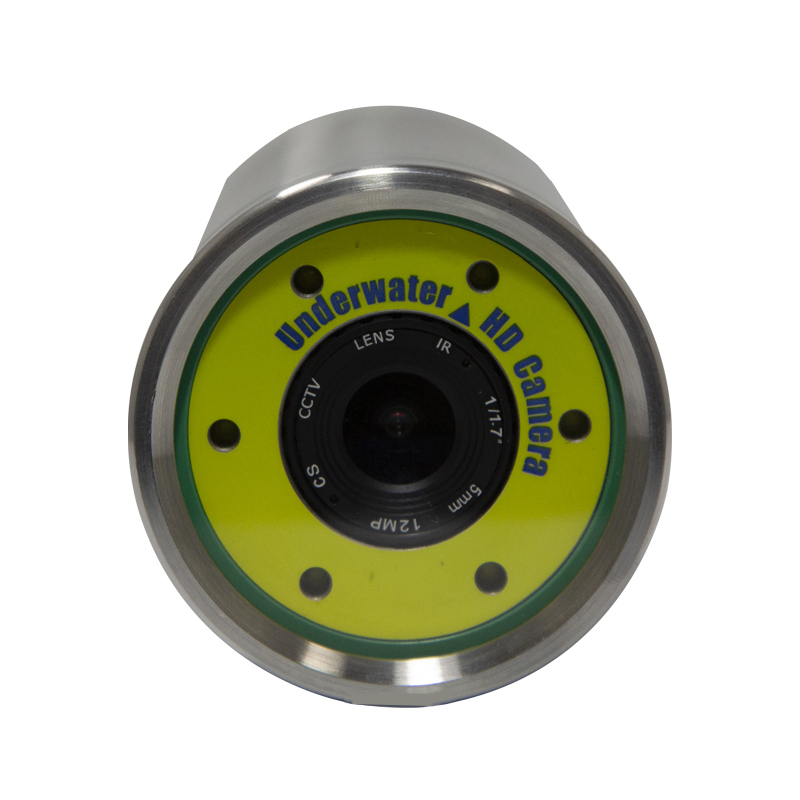

A 90-degree Angle Low-illuminance Underwater Camera Surveillance with Depth&Temp Sensor

Image sensor

SONY 1/1.8’’ CCD

Resolution

2 Megapixel

Sensitivity

0.00001Lux@F1.4 (Color mode);

0.00001Lux@F1.2 (Monochrome）

SIGNAL-NOISE RATIO

≥50dB（AGC OFF）

Video compression

H.264 Main Profile  / M-JPEG

Voltage

48VDC

Network protocol

TCP/IP, HTTP NTP, IGMP, DHCP, UDPSMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P

View angel

90 degree

Lens

3.6mm (Optional 3.2mm/ 6mm/ 8mm)

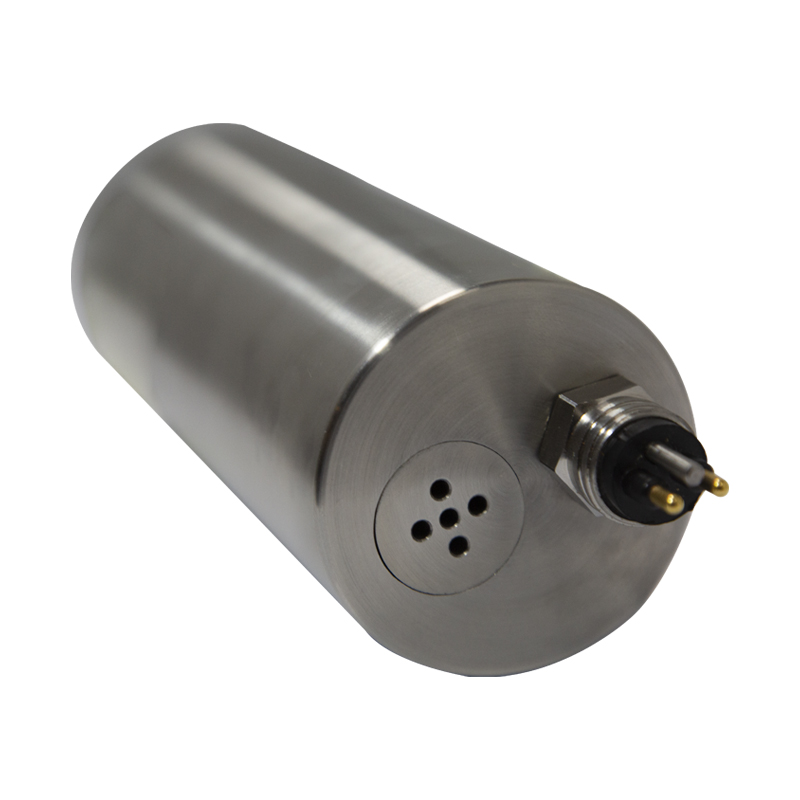

Connector

MCBH2MSS

Depth rating

300m (Optional MAX 6000m)

Storage temperature

-30℃ ~ 60℃

Operating temperature

-20℃ ~ 50℃

Operating humidity

Relative Humidity Below 90%

Standard housing

SS316 (Optional: Ti6AL4V or AL6061-T6)

Window

Acrylic 300m (Optional Sapphire 6000m )

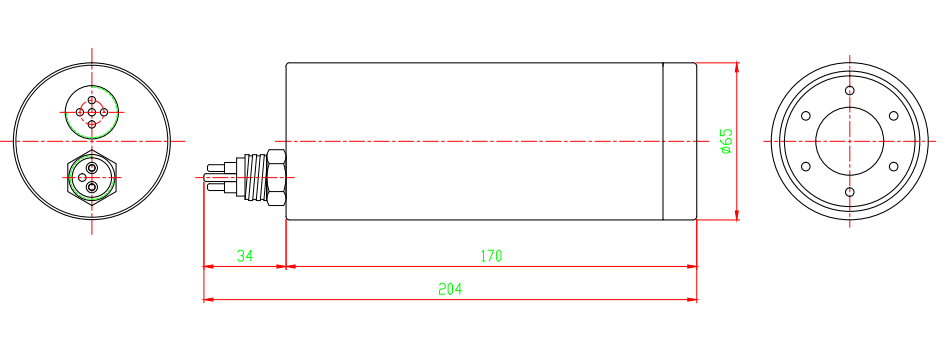

Dimensions

65mm(D)x170mm(L) Excluding Connector

Weight in the air

1.5KG

Measuring medium

Liquid or Gas(compatible with contact material)

Overall material

Diaphragm---316L Stainless Steel(contact with the medium)

Pressure range

0~6Mpa

Pressure method

Gauge Pressure, Absolute Pressure, Negative Pressure

Output signal

RS485 (standard Modbus-RTU protocol)

Supply voltage

12~36VDC

Working conditions

medium temperature -20℃ ~ 85℃

Ambient temperature

-20℃~ 85℃

Ambient humidity

0%~95%RH (no condensation, no condensation)

Temperature compensation

-10~70℃

Accuracy level

0.5%FS(range ≥10KPa)

Anti-seismic performance

10g (20...2000HZ)

Overload capacity

200%

Response frequency

Analog Signal Output≤500HZ

Digital Signal Output≤5HZ

Stability performance

±0.1% FS/year

Temperature drift

±0.01%FS/

Maximum power

≤0.02Us(W)
