A 90-degree Angle Low-illuminance Underwater Camera Surveillance

Share to:

A 90-degree Angle Low-illuminance Underwater Camera Surveillance

1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Minimum Illumination 0.00001Lux@F1.2

4. IP camera, ONVIF Compliant

5. Power And Data Transfer By 2 Wires Up To 600m

Model:
GLF-UDC-LI200
Brand:
Granfoo
Code:
GLF-UDC-LI200

Availability:

Quantity:



Inquire

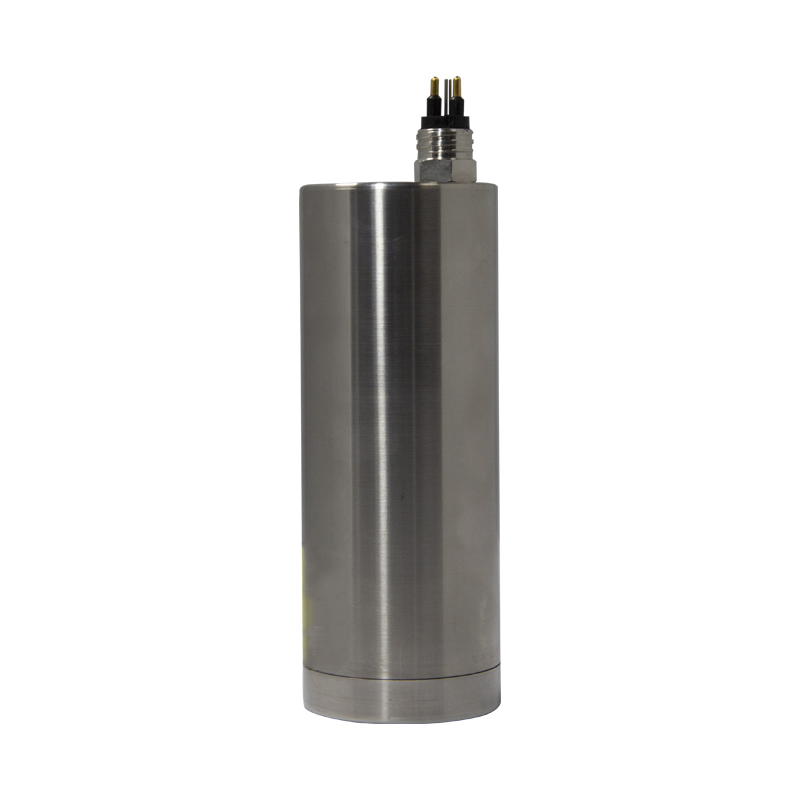

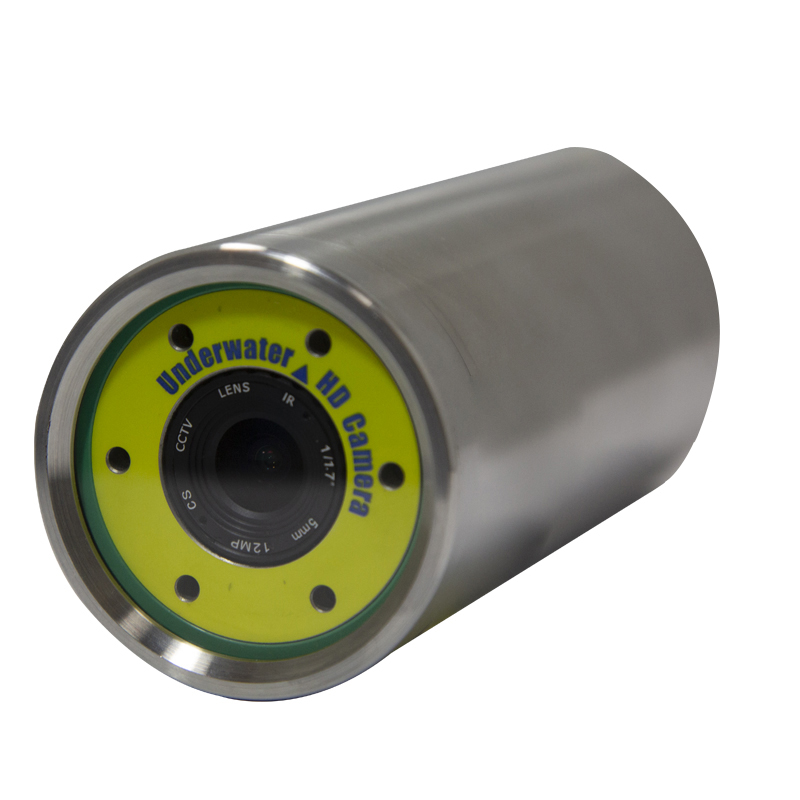

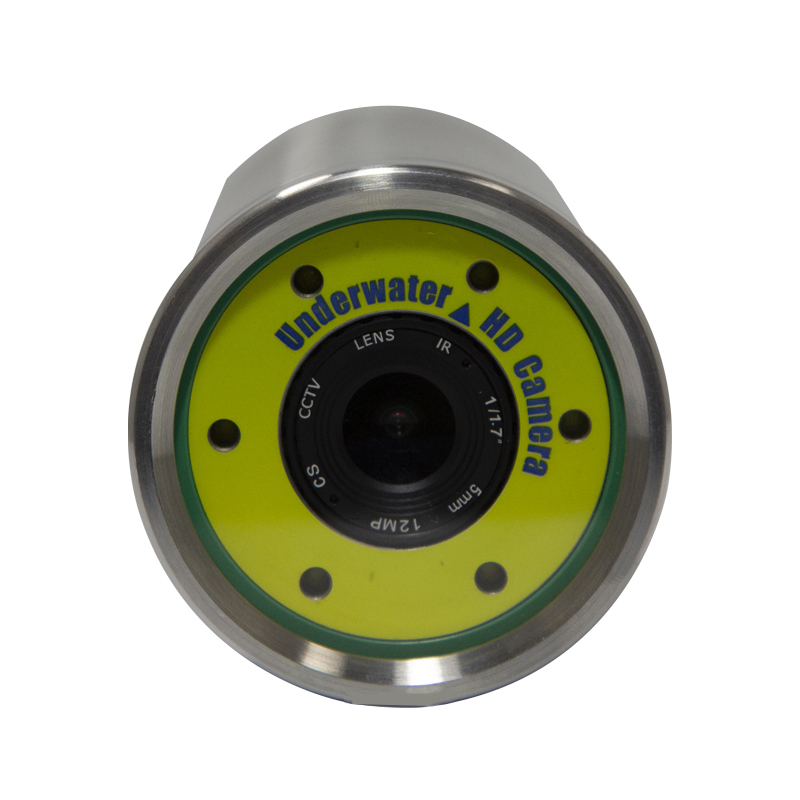

This is a Low Illumination Subsea Analog Camera, the camera DN is 65mm, shell material is SS316, measuring depth is 300meters, can be customized 6000meters.

We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.

If you or your company are interested in this cameras please contact us, we shall very appreciation.

Underwater monitoring Low Illumination Subsea Camera low illumination for Security Cameras

RELATED PRODUCTS

A 90-degree Angle Low-illuminance Underwater Camera Surveillance with 5x Zoom

A 90-degree Angle Low-illuminance Underwater Camera Surveillance with Depth&Temp Sensor

A 90-degree Angle Low-illuminance Underwater Camera Surveillance with Depth&Temp Sensor And 5x Zoom

A 90-degree Angle Low-illuminance Underwater Camera Surveillance with 5x Zoom And Underwater Light

A 90-degree Angle Low-illuminance Underwater Camera Surveillance with Depth&Temp Sensor And Underwater Light

A 90-degree Angle Low-illuminance Underwater Camera Surveillance with Underwater Light

A 90-degree Angle Low-illuminance Underwater Camera Surveillance with Depth&Temp Sensor And Underwater Light And 5x Zoom

Model No.	GLF-UDC-LI200
Image sensor	SONY 1/1.8’’ CCD
Resolution	2 Megapixel
Sensitivity	0.00001Lux@F1.4 (Color mode); 0.00001Lux@F1.2 (Monochrome）
SIGNAL-NOISE RATIO	≥50dB（AGC OFF）
Video compression	H.264 Main Profile / M-JPEG
Voltage	48VDC
Network protocol	TCP/IP, HTTP NTP, IGMP, DHCP, UDPSMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
View angel	90 degree
Lens	3.6mm (Optional 3.2mm/ 6mm/ 8mm)

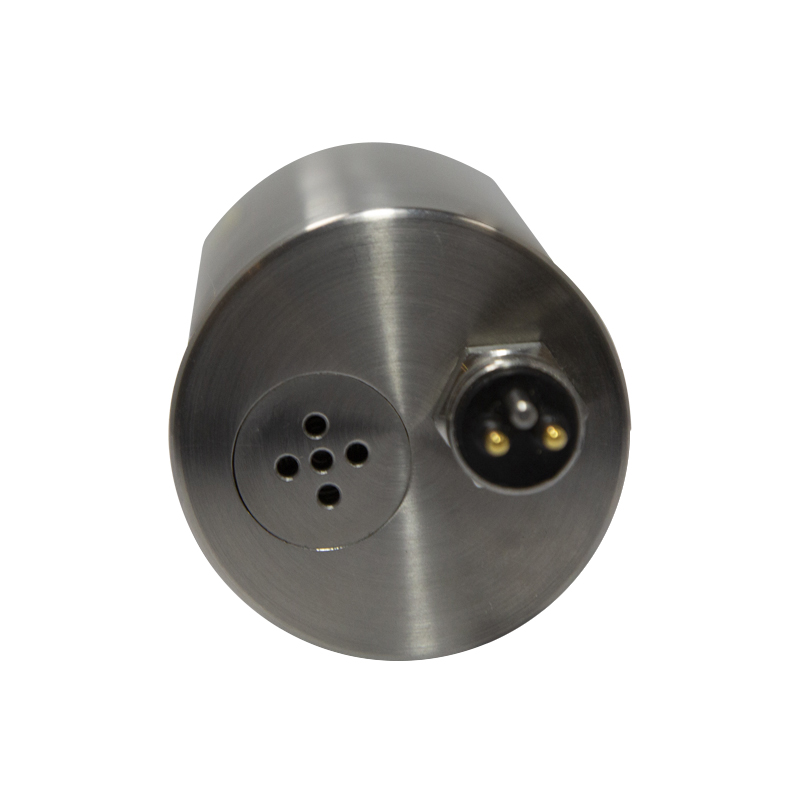

Connector	MCBH2MSS
Depth rating	300m (Optional MAX 6000m)
Storage temperature	-30-60℃
Operating temperature	-20-50℃
Operating humidity	Relative Humidity Below 90%
Standard housing	SS316 (Optional: Ti6AL4V or AL6061-T6)
Window	Acrylic 300m (Optional Sapphire 6000m )

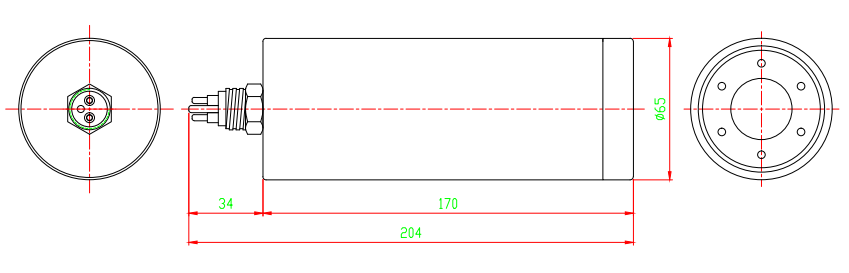

Dimensions	65mm(D)x170mm(L) Excluding Connector
Weight in the air	1.5KG

Model No.	GLF-UDC-LI200
Image sensor	SONY 1/1.8’’ CCD
Resolution	2 Megapixel
Sensitivity	0.00001Lux@F1.4 (Color mode); 0.00001Lux@F1.2 (Monochrome）
SIGNAL-NOISE RATIO	≥50dB（AGC OFF）
Video compression	H.264 Main Profile / M-JPEG
Voltage	48VDC
Network protocol	TCP/IP, HTTP NTP, IGMP, DHCP, UDPSMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
View angel	90 degree
Lens	3.6mm (Optional 3.2mm/ 6mm/ 8mm)
Connector	MCBH2MSS
Depth rating	300m (Optional MAX 6000m)
Storage temperature	-30-60℃
Operating temperature	-20-50℃
Operating humidity	Relative Humidity Below 90%
Standard housing	SS316 (Optional: Ti6AL4V or AL6061-T6)
Window	Acrylic 300m (Optional Sapphire 6000m )
Dimensions	65mm(D)x170mm(L) Excluding Connector
Weight in the air	1.5KG
