A 90-degree Angle Low-illuminance Underwater Camera Surveillance with Depth&Temp Sensor And 5x Zoom

1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Standard H.264 video compression technology, accurate and stable code stream control

4. IP camera, ONVIF Compliant

5. Open SDK, support multiple network protocols and networking methods

6. Customized products according to different situations

  • GLF-UDC-LI200-DT5X

  • Granfoo

  • GLF-UDC-LI200-DT5X

Availability:
Quantity:
Inquire

This is a Depth And Temepetature Underwater Analog Camera, the camera DN is 65mm, optical zoom is 5x, shell material is stainless steel 304 , measuring depth is 300meters , can be customized 6000meters.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

6修改


1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Megapixel

3. Standard H.264 video compression technology, accurate and stable code stream control

4. IP camera, ONVIF Compliant

5. Open SDK, support multiple network protocols and networking methods

6. Customized products according to different situations


Model No.

GLF-UDC-LI200-DT5X

Image sensor

1/2.9" CMOS sensor

Resolution

2 Megapixel

Signal type

Network

Sensitivity

0.1Lux@F1.2 (Color mode); <a href="mailto:0.01Lux@F1.2" \h"="">0.01Lux@F1.2  (Monochrome）

Video processing

H.265+/H.265X video coding, support dual stream, AVI format; support stream 0.1M~8Mpbs adjustable; support frame rate 1~30 frames/sec adjustable

Image output

Main stream: 1920*1080@20fps, 1280*720@25fps; substream: 704*576@25fps

Network Interface

1* RJ45 Ethernet interface, 10/100M adaptive; supports network protocols such as RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

Day and night mode

Support IR-CUT

Compatibility

Supports ONVIF platform access such as Haikang, Xiongmai CMS, and Tianshitong UC2, and supports mainstream NVR ONVIF protocol access.

Lens

Standard 2.8mm-12mm automatic zoom lens

Zoom

Optical zoom 5x

Function

Support front-end storage playback/download;

Support unified system remote monitoring software, platform and other system applications;

Provide a complete SDK development kit

Housing material

Stainless steel 304 ( aluminum alloy / titanium alloy / industrial plastic optional)

Waterproof level

0-300 meters (max depth can be customized to 6000m)

Power supply

48VDC (customized can be 24V)

Working temperature

-20℃～+40℃

Storage temperature

-30℃ ~ +60℃

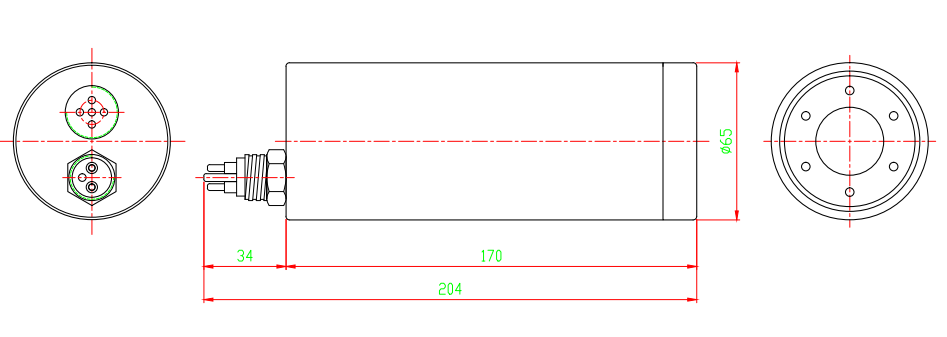

Dimension

Φ65*170mm (excluding 34mm connector)

Weight in the air

1.5 kg

View angel

90 degree

Connector

MCBH2MSS



LI200L-DT5X

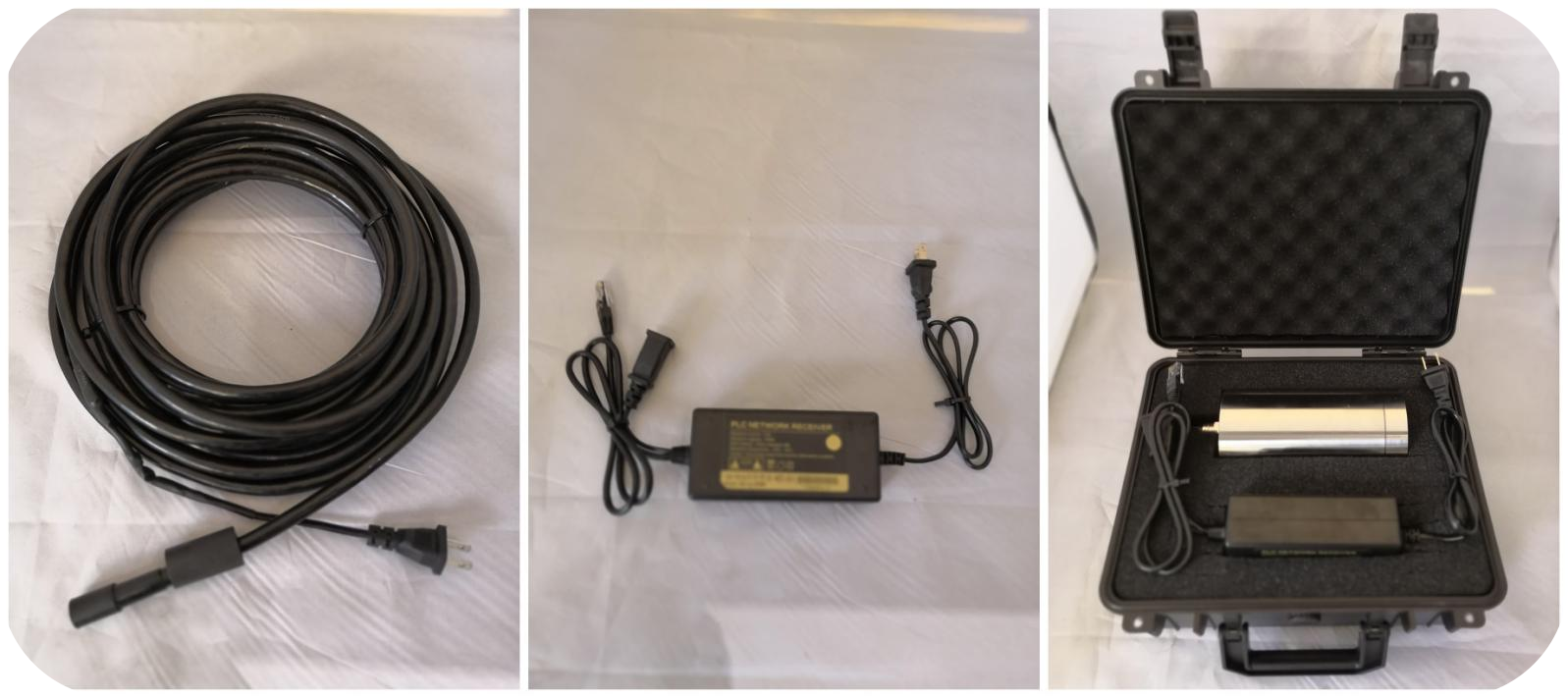

Packing List

1. Camera

2. 10m cable


Product Show

5修改


3


1



3
