Subsea cable
Underwater cable
Connector cable
GLF-XL-2
Granfoo
GLF-XL-2
| Quantity: | |
|---|---|
Technical Specification For Cable | ||||
Cable Type |  | |||
2x1 watertight cable | ||||
General Description | ||||
Scope of application: Fixed/mobile installations in industrial installations | ||||
NO. | ||||
BRTS2021092917 | ||||
Cable Construction | ||||
Conductor | Conductor Material | Oxygen-free copper | ||
Conductor Structure /mm | 35/0.19 | |||
Strand OD. /mm | 1.3 | |||
Insulation | Insulation Material | PVC | ||
Insulation Colour | Blue Brown | |||
Insulation Thickness /mm | 0.55 | |||
Insulation OD. /mm | 2.4 ± 0.05 | |||

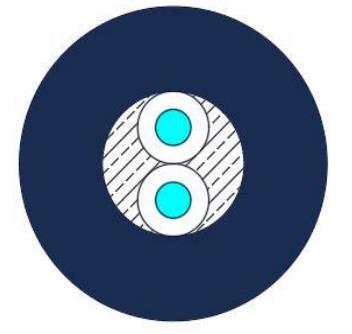

Cabling | Cabing Structure | Twisted into cable as shown | ||
| Filling | Cotton thread | |||
Lapping | Aluminum foil | |||
Jacket | Jacket Material | Polyether polyurethane | ||
Jacket Thickness /mm | 1.5 | |||
Jacket Colour | Yellow | |||
Approximate OD. /mm | 8.2 | |||
Mark | Meter Standard | |||
Electrical Characteristics | Installation Conditions | |||
Max. DC Resistance at 20℃(Ω/kM) | 20.0 | Min.Bending Radius | 6D | |
Rated Voltage （V） | 300/500V | Operation temperature | -40—+80℃ | |
Technical Specification For Cable | ||||
Cable Type | | |||
2x1 watertight cable | ||||
General Description | ||||
Scope of application: Fixed/mobile installations in industrial installations | ||||
NO. | ||||
BRTS2021092917 | ||||
Cable Construction | ||||
Conductor | Conductor Material | Oxygen-free copper | ||
Conductor Structure /mm | 35/0.19 | |||
Strand OD. /mm | 1.3 | |||
Insulation | Insulation Material | PVC | ||
Insulation Colour | Blue Brown | |||
Insulation Thickness /mm | 0.55 | |||
Insulation OD. /mm | 2.4 ± 0.05 | |||
Cabling | Cabing Structure | Twisted into cable as shown | ||
| Filling | Cotton thread | |||
Lapping | Aluminum foil | |||
Jacket | Jacket Material | Polyether polyurethane | ||
Jacket Thickness /mm | 1.5 | |||
Jacket Colour | Yellow | |||
Approximate OD. /mm | 8.2 | |||
Mark | Meter Standard | |||
Electrical Characteristics | Installation Conditions | |||
Max. DC Resistance at 20℃(Ω/kM) | 20.0 | Min.Bending Radius | 6D | |
Rated Voltage （V） | 300/500V | Operation temperature | -40—+80℃ | |
