Underwater Surveillance Camera,waterproof And Corrosion Subsea Camera

* 1/2.8’’ FOUR IN ONE  1080P

* IMX291+NVP2441H

* Support coaxial high-definition transmission, image clear, delicate

* Support OSD menu

* Support UTC function

* Adaptive digital noise reduction 2D-DNR + 3D-DNR

* 6KV lightning protection

* Dimension Dia 65*170mm

  • GLF-UDC-S200-POM

  • Granfoo

  • GLF-UDC-S200-POM

Availability:
Quantity:

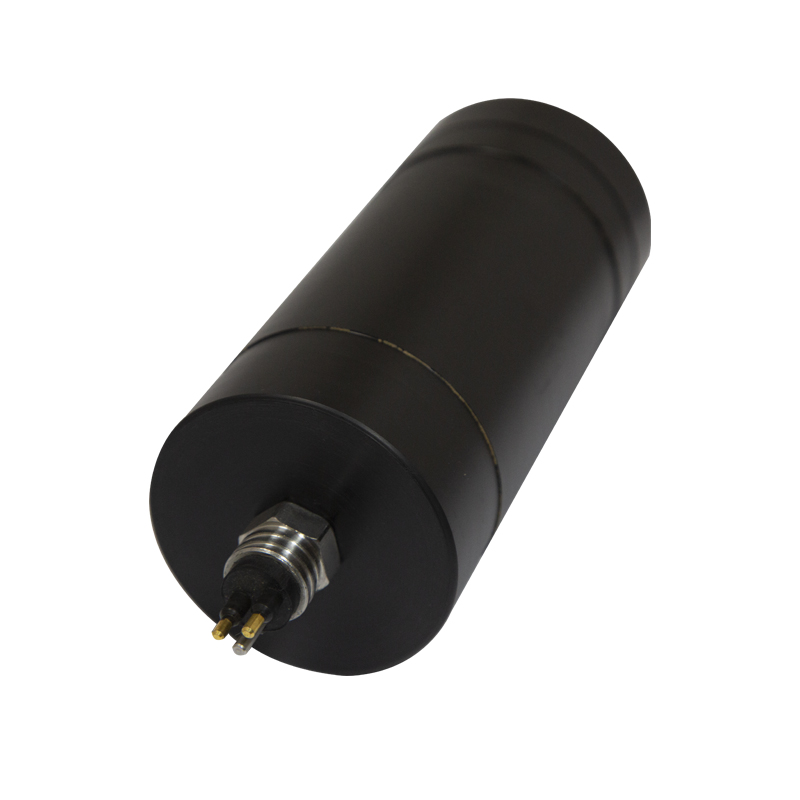

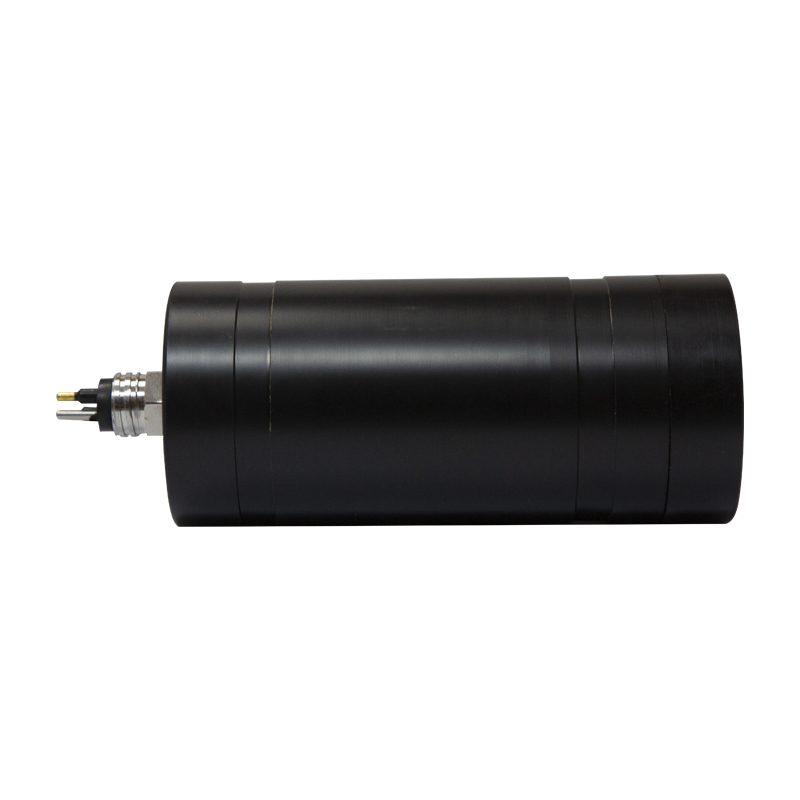

This is a Underwater Camera, the camera diameter is 65mm, shell material is POM, measuring depth is 300meters.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

5


• 1/2.8’’ FOUR IN ONE 1080P

• IMX291+NVP2441H

• Support coaxial high-definition transmission, image clear, delicate

• Support OSD menu

• Support UTC function

• Adaptive digital noise reduction 2D-DNR + 3D-DNR

• 6KV lightning protection

• Dimension Dia 65*170mm



Model No.GLF-UDC-S200-POM
Image Sensor1/2.8’’ SONY IMX291+NVP2441H
System StandardPAL / NTSC
Resolution1920(H)*1080(V)
Sensitivity0.01LUX/F1.2
Horizontal DefinitionCoaxial HD 200w Pixel 1080p, Analog: 2000TVL
Day-night modeExternal control (default) Auto / color / black and white
Frame Rate1080P@25fps / 1080P@30fps
Synchronization ModeInternal synchronization
ShutterAUTO /1/50~1/50000s
Signal-Noise Ratio>46dB
Video OutputAHD/TVI/CVI/CVBS Can be switched
ConnectorMCBH4M
Working Temperature-20° ~ 60&deg
Working humidityRelative humidity below 90%
Power SupplyDC12V (±10%)
Working Depth0-300M (customized)
DimensionDia 65*170 mm (including connector)
Housing MaterialPOM

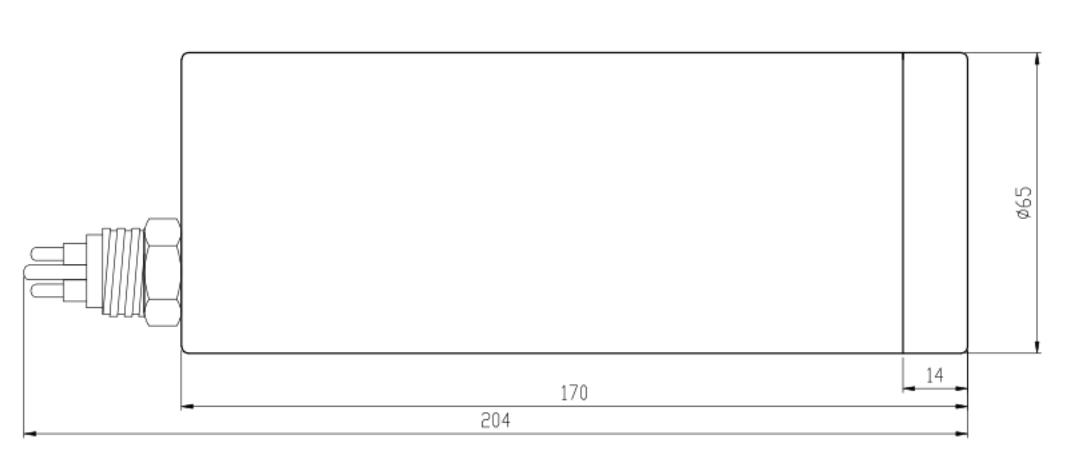

WeChat Image_20220901120618


Packing

1. 1 pcs camera

2. 10m cable


Product Show

2


4


6
