* 1/2.8’’ FOUR IN ONE 1080P
* IMX291+NVP2441H
* Support coaxial high-definition transmission, image clear, delicate
* Support OSD menu
* Support UTC function
* Adaptive digital noise reduction 2D-DNR + 3D-DNR
* 6KV lightning protection

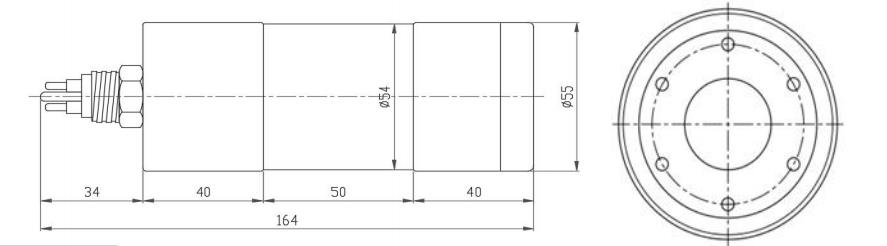

* Dia55*164mm
GLF-UDC-S200
Granfoo
GLF-UDC-S200
Availability: | |
---|---|
Quantity: | |
This is a Underwater HD coaxial straight camera, the camera DN is 55mm, shell material is Stainless steel or Titanium, measuring depth is 300meters. We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand. If you or your company are interested in this cameras please contact us, we shall very appreciation. |
This is a Underwater HD coaxial straight camera, the camera DN is 55mm, shell material is Stainless steel or Titanium, measuring depth is 300meters. We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand. If you or your company are interested in this cameras please contact us, we shall very appreciation. |
• 1/2.8’’ FOUR IN ONE1080P
• IMX291+NVP2441H
• Support coaxial high-definition transmission, image clear, delicate
• Support OSD menu
• Support UTC function
• Adaptive digital noise reduction 2D-DNR + 3D-DNR
• 6KV lightning protection
• Dia55*164mm
• 1/2.8’’ FOUR IN ONE1080P
• IMX291+NVP2441H
• Support coaxial high-definition transmission, image clear, delicate
• Support OSD menu
• Support UTC function
• Adaptive digital noise reduction 2D-DNR + 3D-DNR
• 6KV lightning protection
• Dia55*164mm
Main Parameter | |
Product name | Underwater HD coaxial straight camera |
Model | GLF-UDC-S200 |
Image sensor | 1/2.8” SONY IMX291+NVP2441H |
System format | PAL / NTSC |
Effective Pixels | 1920(H)*1080(V) |
Minimum illumination | 0.1Lux@(F1.2,AGC ON) |
Horizontal Definition | Coaxial HD 200w Pixel 1080p, Analog: 2000TVL |
Frame rate | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI/CVBS switchable |
Day & night mode | External control (default)/auto/color/black and white |
Shutter | AUTO / 1/50~~1/50000s |
Lens | |
Lens | 3.6mm(3.6mm/6mm/8mm optional) |
Focal length | Prime lens |
Functions | |
Function | Supports front end storage playback/download |
OSD Menu, UTC function | |
Can be customized according to different needs | |
Specification | |
Housing materials | POM |
Waterproof level | 0-300m(maximum 6000m) |
Power supply | 12VDC |
Working temperature | -30℃~+60℃ |
Size | Φ70*140mm(140+34mm connector) |
Weight | 0.35Kg(POM) |
Spare Parts | |
Package | Cables, adapter, warranty card, certificate, suppression report |
Support customization | Depth (maximum 1000m) |
Sensor (temperature, pressure etc.) | |
Control display terminal |
Main Parameter | |
Product name | Underwater HD coaxial straight camera |
Model | GLF-UDC-S200 |
Image sensor | 1/2.8” SONY IMX291+NVP2441H |
System format | PAL / NTSC |
Effective Pixels | 1920(H)*1080(V) |
Minimum illumination | 0.1Lux@(F1.2,AGC ON) |
Horizontal Definition | Coaxial HD 200w Pixel 1080p, Analog: 2000TVL |
Frame rate | 1080P@25fps / 1080P@30fps |
Video output | AHD/TVI/CVI/CVBS switchable |
Day & night mode | External control (default)/auto/color/black and white |
Shutter | AUTO / 1/50~~1/50000s |
Lens | |
Lens | 3.6mm(3.6mm/6mm/8mm optional) |
Focal length | Prime lens |
Functions | |
Function | Supports front end storage playback/download |
OSD Menu, UTC function | |
Can be customized according to different needs | |
Specification | |
Housing materials | POM |
Waterproof level | 0-300m(maximum 6000m) |
Power supply | 12VDC |
Working temperature | -30℃~+60℃ |
Size | Φ70*140mm(140+34mm connector) |
Weight | 0.35Kg(POM) |
Spare Parts | |
Package | Cables, adapter, warranty card, certificate, suppression report |
Support customization | Depth (maximum 1000m) |
Sensor (temperature, pressure etc.) | |
Control display terminal |
Packing List
1. 1pc camera
2. 10m cable for testing
Product Show
Packing List
1. 1pc camera
2. 10m cable for testing
Product Show
