Underwater Camera, 10X Zoom Lens with Wiper Underwater Surveillance Camera

1. Shell Compressive Standard Depth 300m

2. High Resolution 2 Mega pixel

3. 10X Zoom

4. Minimum Illumination 0.001Lux@F1.2

5. IP camera, ONVIF Compliant

6. Power And Data Transfer By 2 Wires Up To 600m

Model:
GLF-UDC-SZ10X-W
Brand:
Granfoo
Code:
GLF-UDC-SZ10X-W

Availability:

Quantity:



Inquire

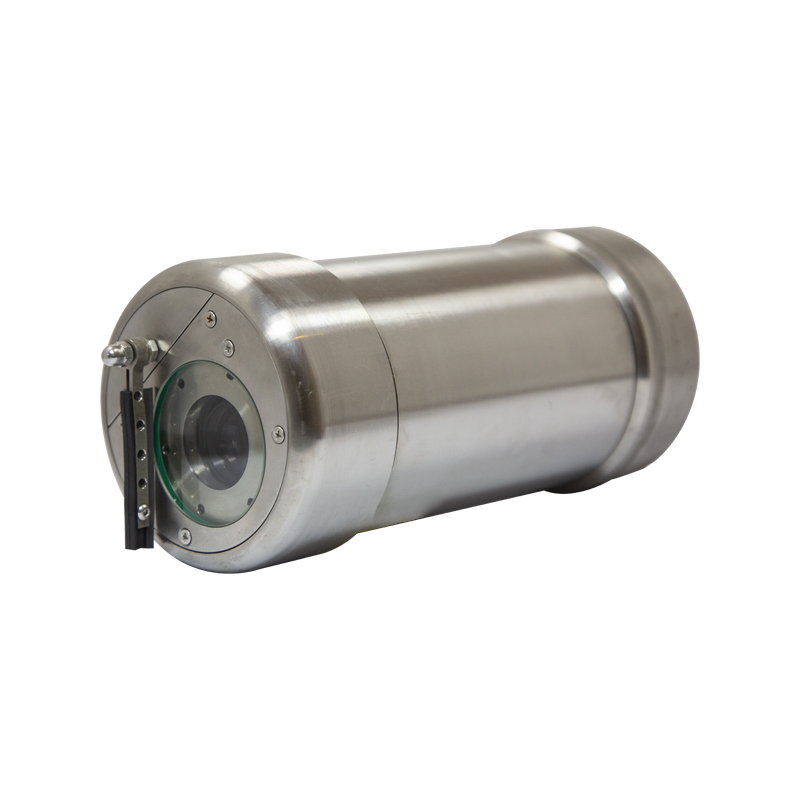

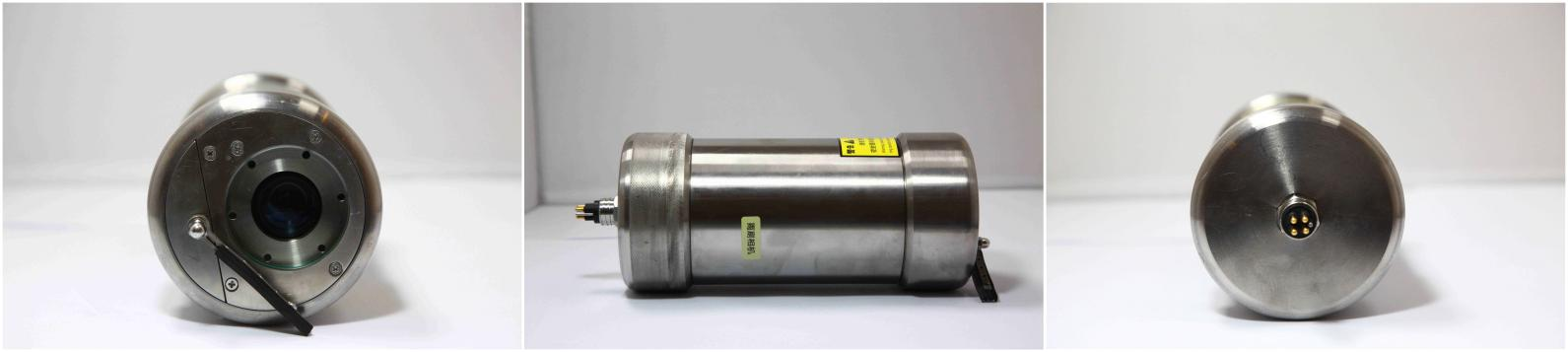

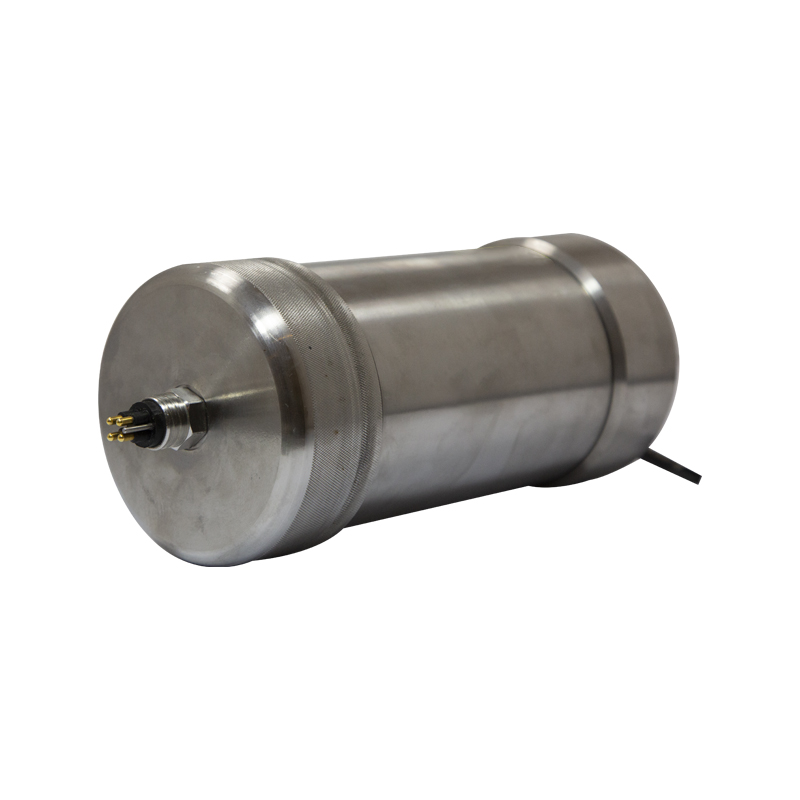

This is a Underwater Analog Wiper Camera, the camera is cylindrical with a diameter of 108mm, optical zoom up to 10x zoom, with automatic cleaning function in front of the lens.

We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.

If you or your company are interested in this cameras please contact us, we shall very appreciation.

Model	GLF-UDC-SZ10X-W
Signal type	Network
Pixel	2 mega (1080P Wireless card 10x zoom H265) Optional: 3 mega (3 MP Wireless card 10x zoom) 5 mega (5 MP Wireless card 10x zoom)
Sensor	HI3516EV100+1/2.8" Sony 307 sensor Optional: 3 mega (HI3516EV200+1/2.7" SC 3235 sensor) 5 mega (HI3516EV300+1/2 8" Sony 335 sensor
Video standard	PAL/NTSC
Video processing	H265/H264 video coding, support dual stream, AVI format, support code stream 0.1M-6Mpbs adjustable, support frame rate adjustable
Lens	10x optical zoom, standard 4.9~47 mm automatic zoom lens
Min. illumination	Color: 0.01Lux@F1.2, B/W: 0.001Lux@F1.2
Video output	2 mega H265/H264 1080P (19201080P) Optional: 3 mega H265/H264 (20481536) 5 mega H265/H264 (2592*1944)
Network connect method	Support wireless network connection, one-click WPS function, hot spot direct connection function
Mobile computer direct connection	Support self-generated AP hotspot, wireless connection, no need for wireless router
Hardware function	Support one-button reset function, support AP mode for point-to-point viewing
Audio function	Audio input and output function
Wireless wifi function	Support, no wifi module
IF card	Support, Card recording (up to 128G)
PT	1 RS485 interface, support PELCO (P) and other PTZ lens control protocols
ONVIF RTSP protocol	Support
Network port function	Support RJ45 network cable connection
Signal interface	1 pcs photoresistor interface, 1 pcs IR-CUT drive interface, supporting the linkage of the photoresistor input signal and IR-CUT infrared lamp
Lightning protection	Power supply lightning protection, meet the national standards GB/T17626.5, international standard IEC61000-4-5.
Business functions	Support WEB configuration, support OSD, support real-time video transmission, support motion detection alarm center reminder and screen pop-up linkage, support JPEG capture, support unified client remote monitoring software
Mobile phone monitoring	Support mobile phone monitoring (Android / Iphone) mobile phone software name camhi
Optical zoom	10X

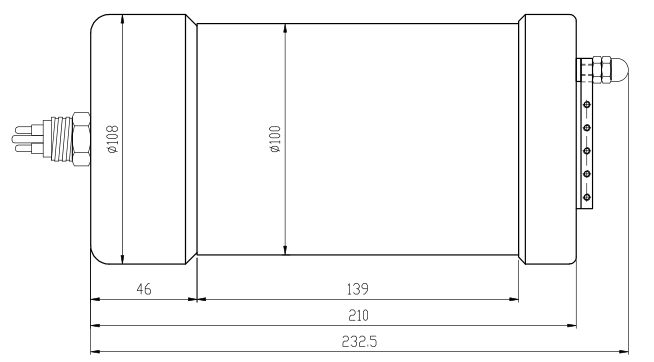

Camera size	108mm(D)x210mm(L) Excluding Connector
