Submersible Video Camera for Rov Underwater Cctv System Ptz Camera

* 2 million coaxial HD CMOS
* 360° continuous horizontal rotation，
* Vertical direction -5°-90°, no monitoring blind area
* 6 high brightness 0.5W white LEDs built-in lights，
* 10 levels of micro dimming
* Support customization

  • GLF-UPT-D45

  • Granfoo

  • GLF-UPT-D45

Availability:
Quantity:
Inquire

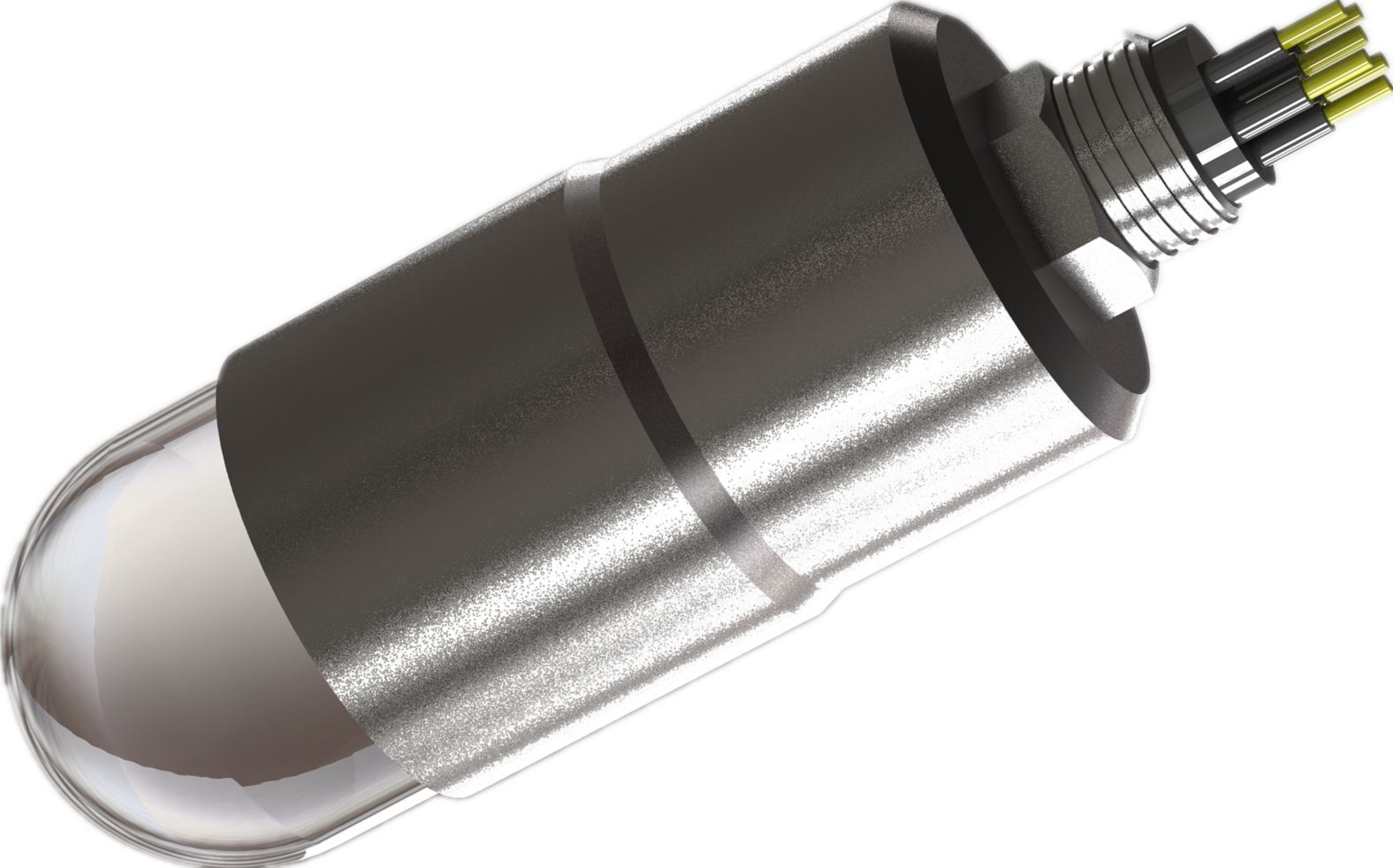

This is the Mini Underwater Camera, the camera DN is 45mm, measuring depth is 100m.


We supply many types underwater cameras that with high quality and competitive price , also can make customized underwater cameras according to our clients demand.


If you or your company are interested in this cameras please contact us, we shall very appreciation.

7


1.  2 million coaxial HD CMOS
       2.  360° continuous horizontal rotation，
       3.  Vertical direction -5°-90°, no monitoring blind area
       4.  6 high brightness 0.5W white LEDs built-in lights，
       5.  10 levels of micro dimming
       6.  Support customization

Name

Underwater coaxial high-definition ball machine（45）

Model NO.

GLF-UPT-D45

Main Parameters

Image Sensor

2 million coaxial HD COMS/1080p

Signal Type

HD OverCoax

FHD

2 million pixels

SYS

PAL/NTSC

Minimal Illumination

0.01 lux at F1.2 5600°K

Video Output

1V‐75 ohms AHD/CVBS,video signal （Anti-interference technology）

Rotation Range

Horizontal 360°continuous spin, Vertical direction 0°～180°

Antenna Sweep Radius

Maximum in air：5m   Minimum in air：60mm

Lens

Lens

2.8/3.7 mm Glass Lens / F1.2

Focal Length

Electromotion Focus

Function

Function


3 speed，Low/medium and high speed，dynamic switching

6 high brightness 0.5W white LEDs(50000h life)，10 levels of micro dimming


General

Material

Stainless Steel/Titanium Alloy

Waterproof Level

0-100 meter

Voltage Supply

48VDC

Temperature

-20℃ ~ +60℃

Size

Φ45*105(not including parts 34mm)

Weight

0.2KG(Stainless Steel )

Parts


Packing List

Cable、Adaptor、Warranty Card、Certification、Report

Customization

Depth

Sensor （Temperature、Pressure...）

Control Display Screen






Packing

1. 1 pcs camera

2. 10m cable

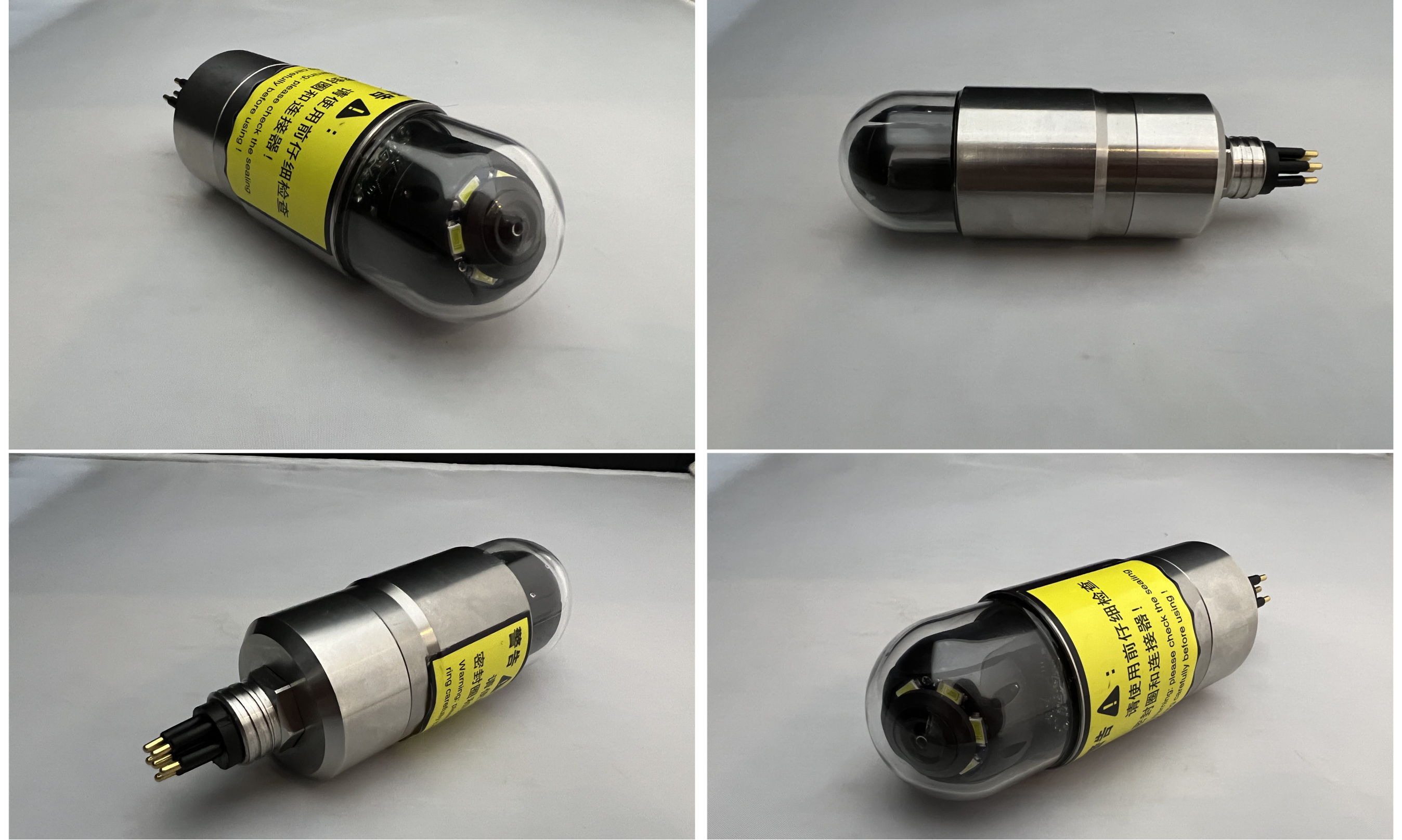

Product  Show

12
